PWR, Fog Lamp Switch, Fog Lamp Relay and Horn Relay

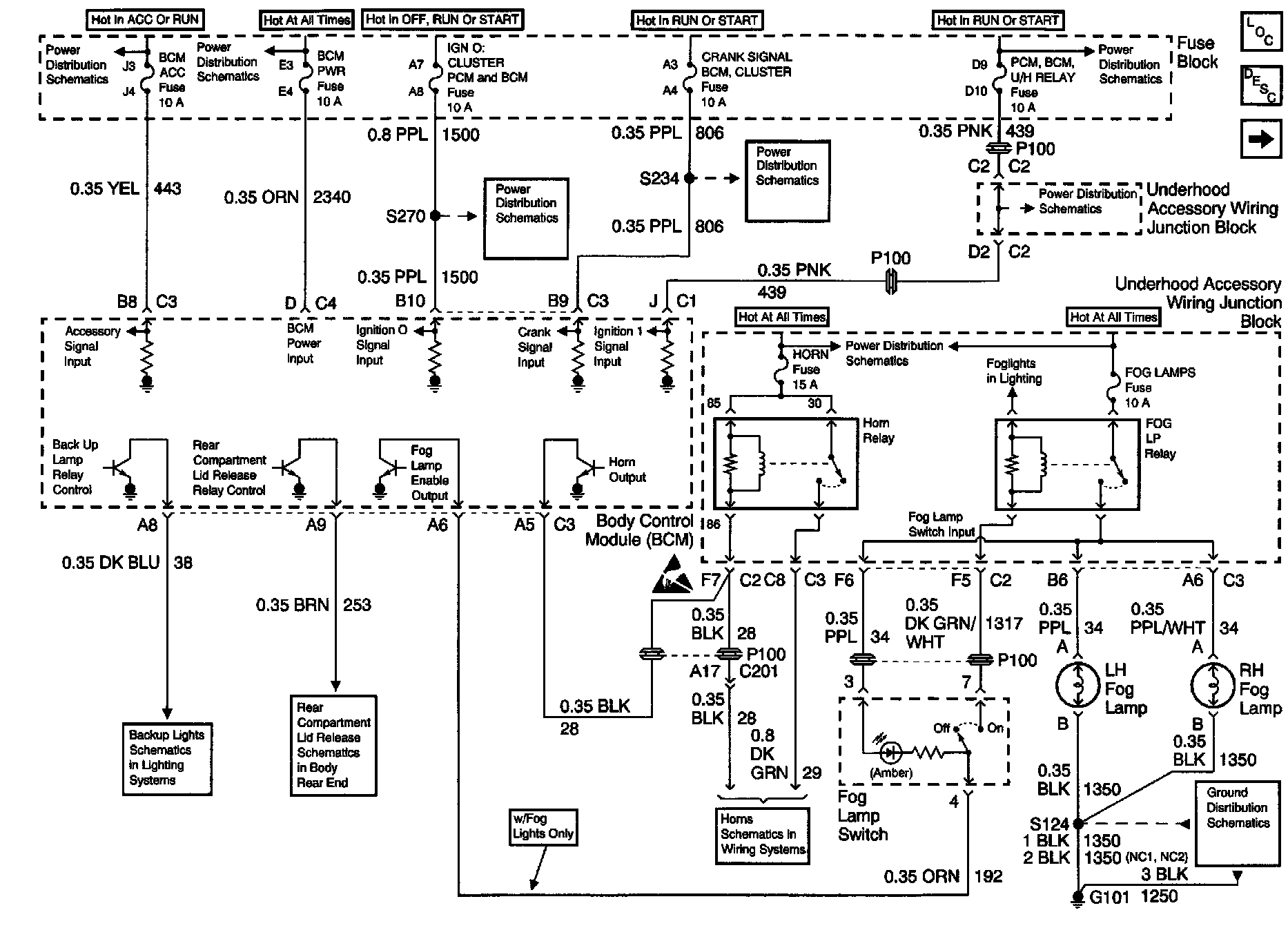

Body Control Module Schematics : Power, Fog Lamp Switch, Fog Lamp Relay And Horn Relay:
