Charging System Test (Delphi CS 130D)

TEST DESCRIPTION

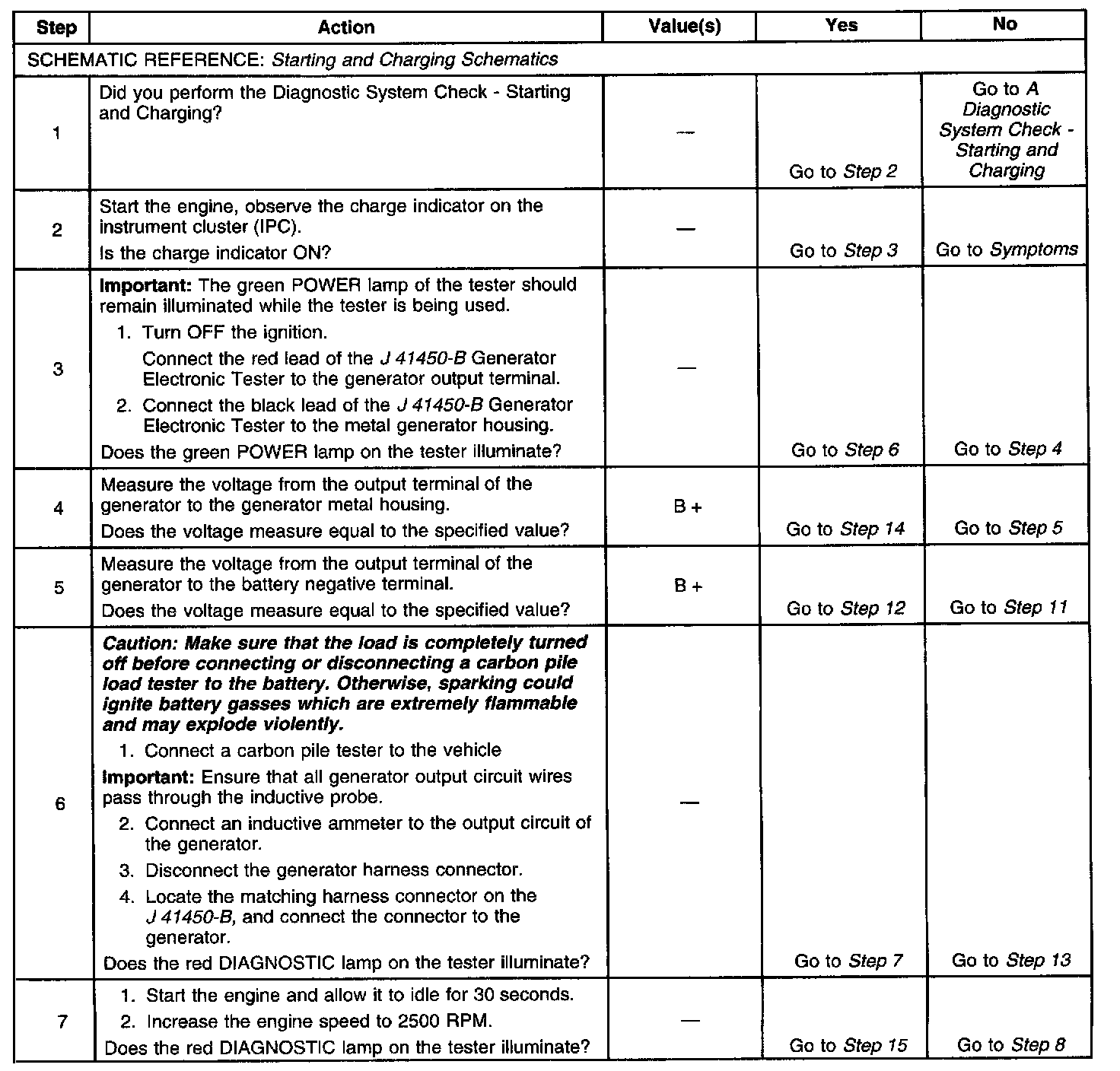

Step 1 - 7:

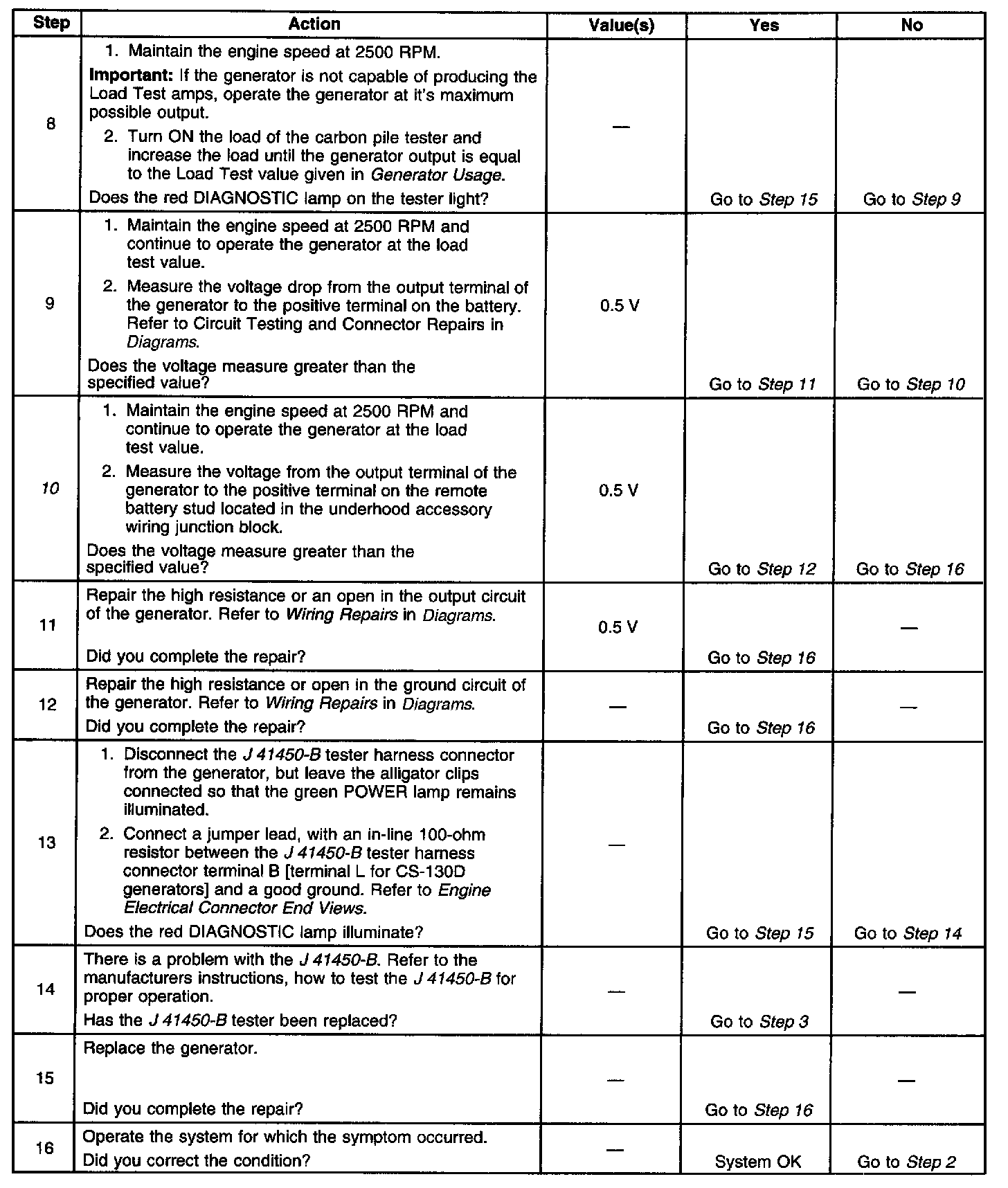

Step 8 - 16:

The numbers below refer to the step numbers on the diagnostic table.
10. It the test has shown the generator to be OK, however the condition remains, test the PCM or its control circuit(s) to the generator.
