Sunroof Module Connector End View (Express Open), C2

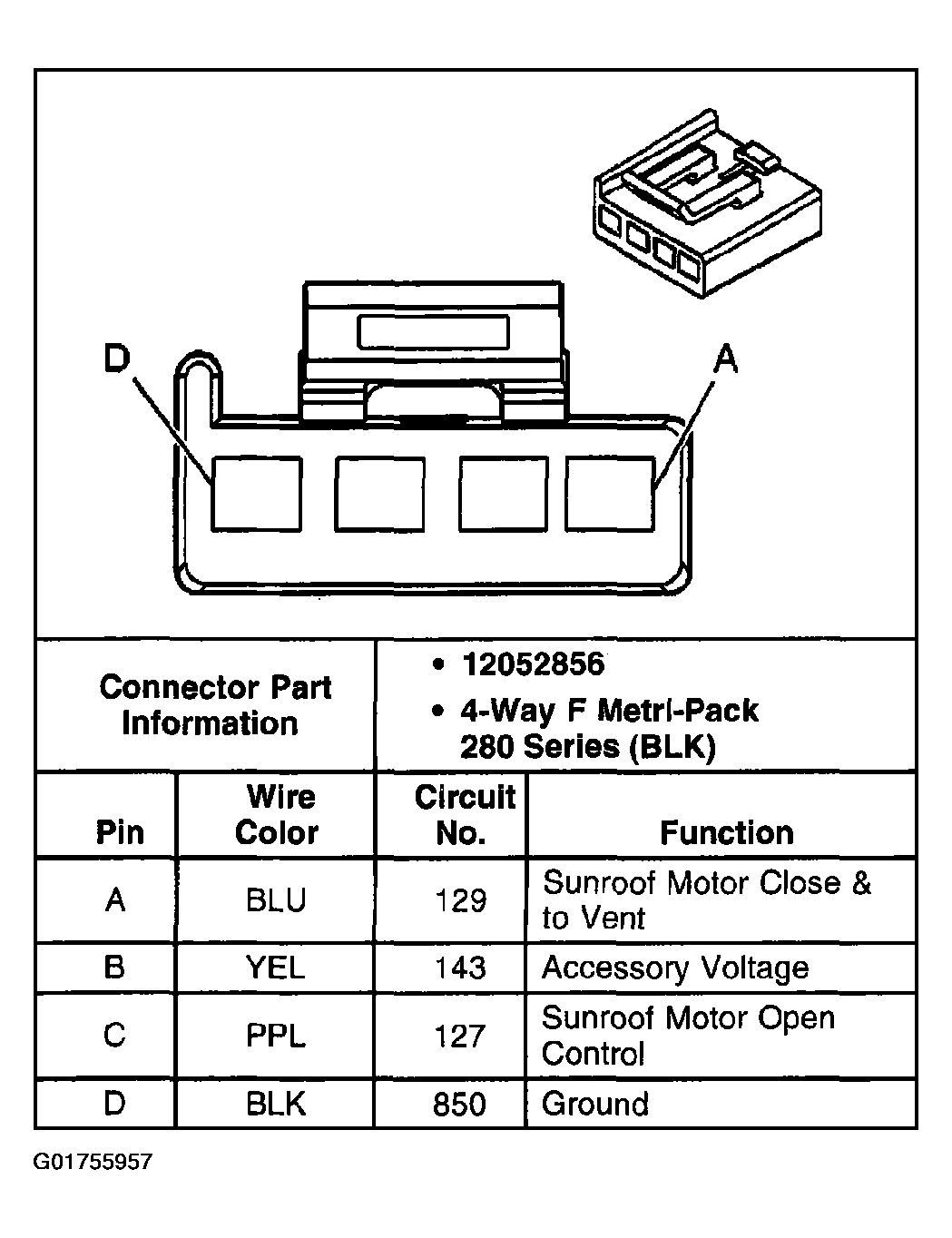

Fig 1: Sunroof Module (Express Open), C2
G01755957Courtesy of GENERAL MOTORS CORP.
