Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the assist handle (3) in the headliner.
    CAUTION: Refer to FASTENER NOTICE .

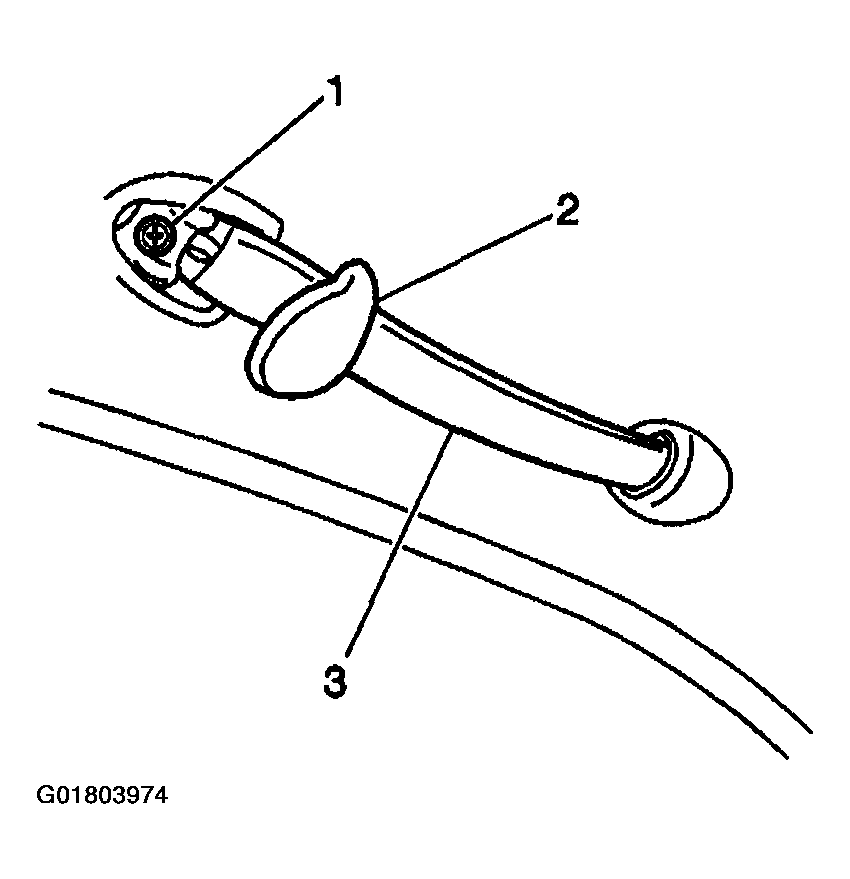

    2. Fig 1: Installing Assist Handle
    G01803974Courtesy of GENERAL MOTORS CORP.
  2. Install the fasteners (1) in order to secure the assist handle.

    Tighten

    Tighten the fasteners to 3 N.m (27 lb in).

  3. Snap the end cap covers (2) into position.
