Body Control Module Connector End Views

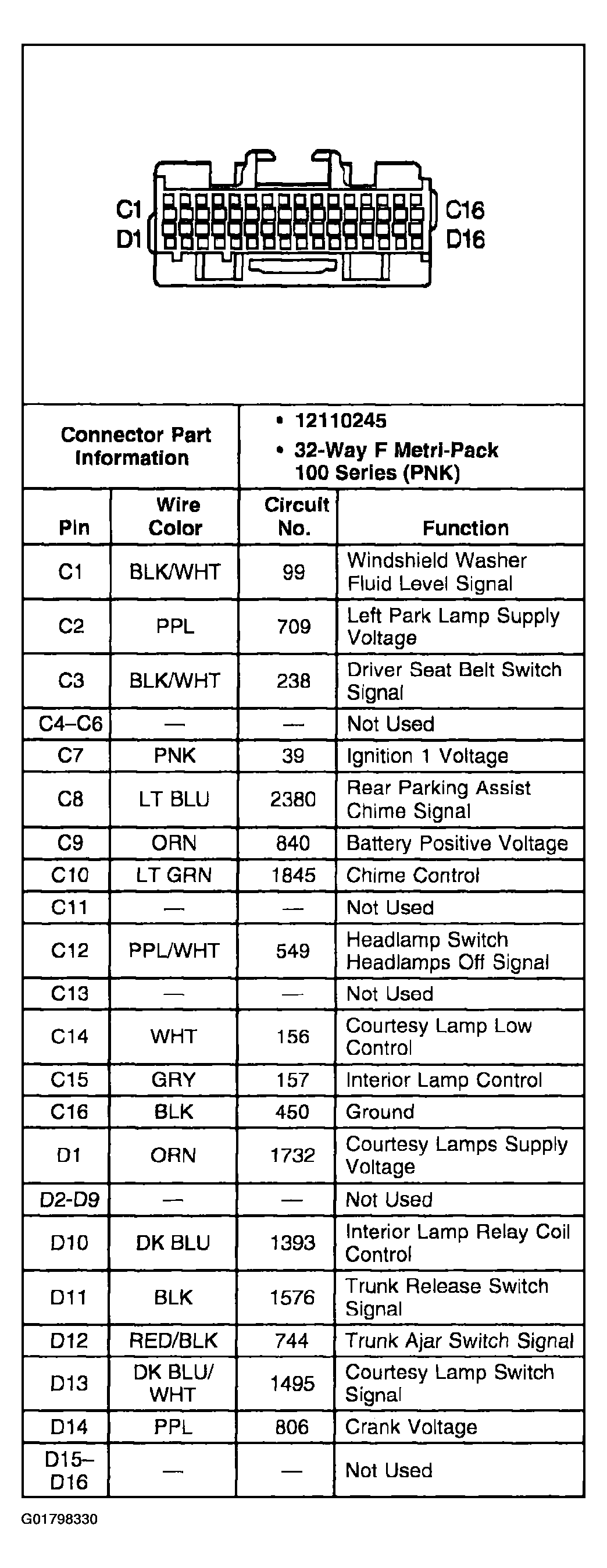

Fig 1: Identifying BCM Harness Connector C1
G01798330Courtesy of GENERAL MOTORS CORP.

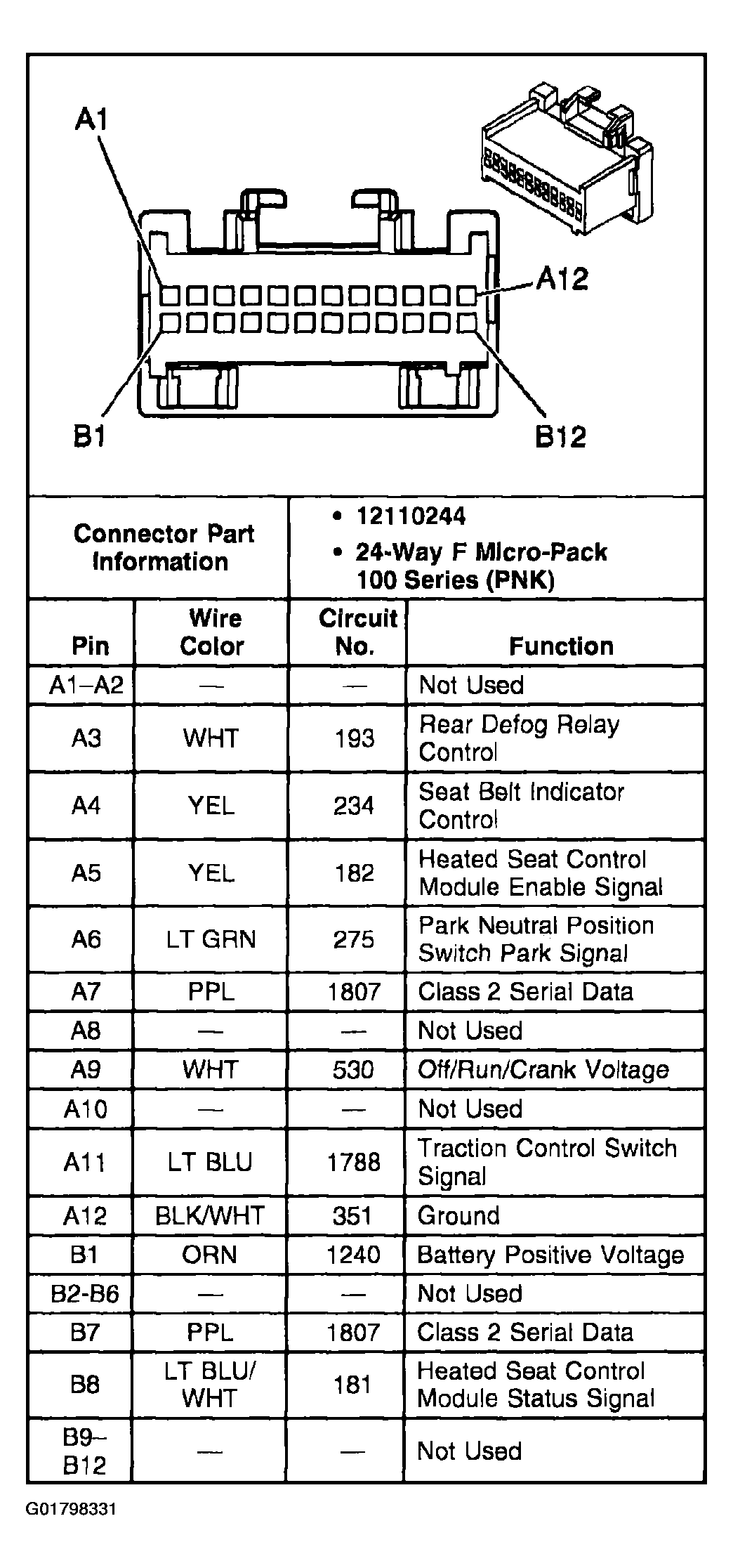

Fig 2: Identifying BCM Harness Connector C2
G01798331Courtesy of GENERAL MOTORS CORP.
