Removal Procedure

  1. Remove the right closeout/insulator panel.

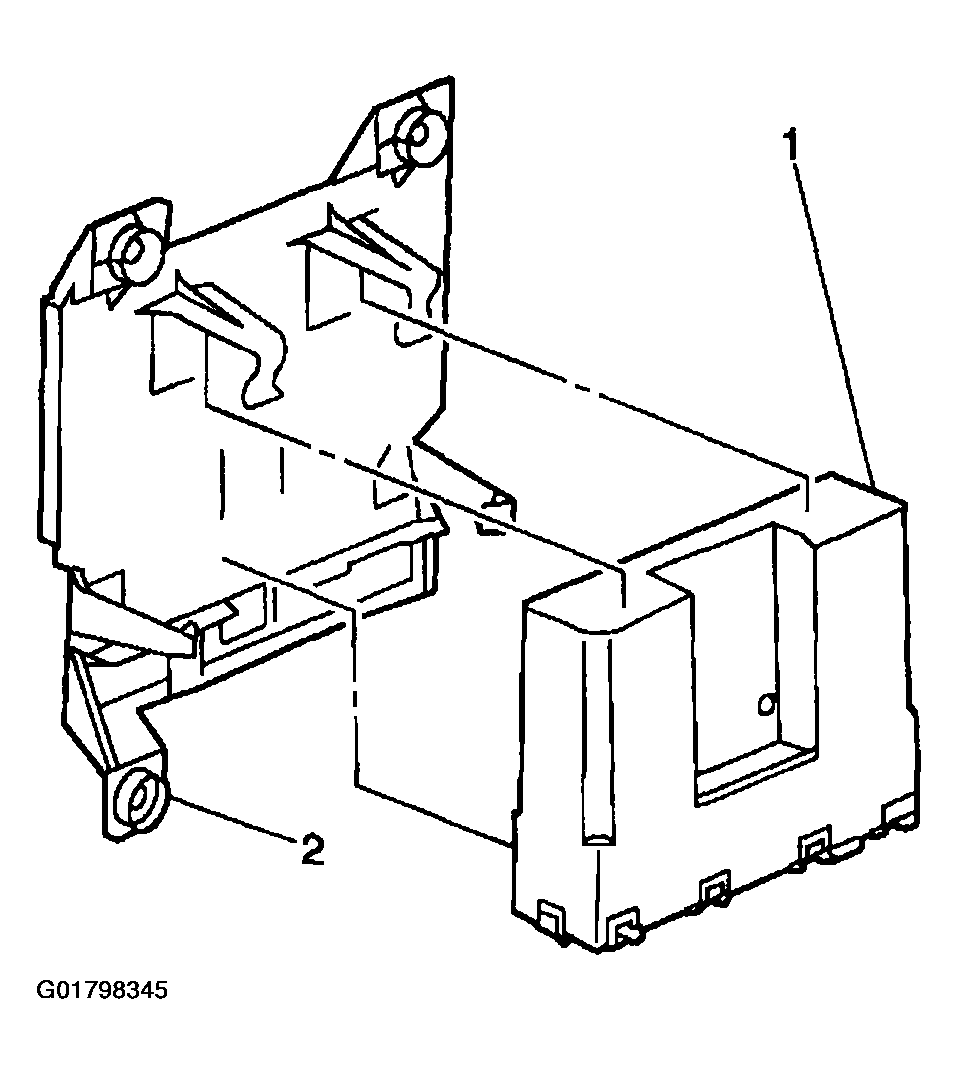

  2. Remove the body control module (2). Spread the latch tabs on the sides of the bracket (1) while pulling downward, remove from mounting bracket. See Figure.
  3. Disconnect the electrical connector.
