Removal Procedure

  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the armrest bracket bolts (2).
  4. Remove the armrest bracket (1).

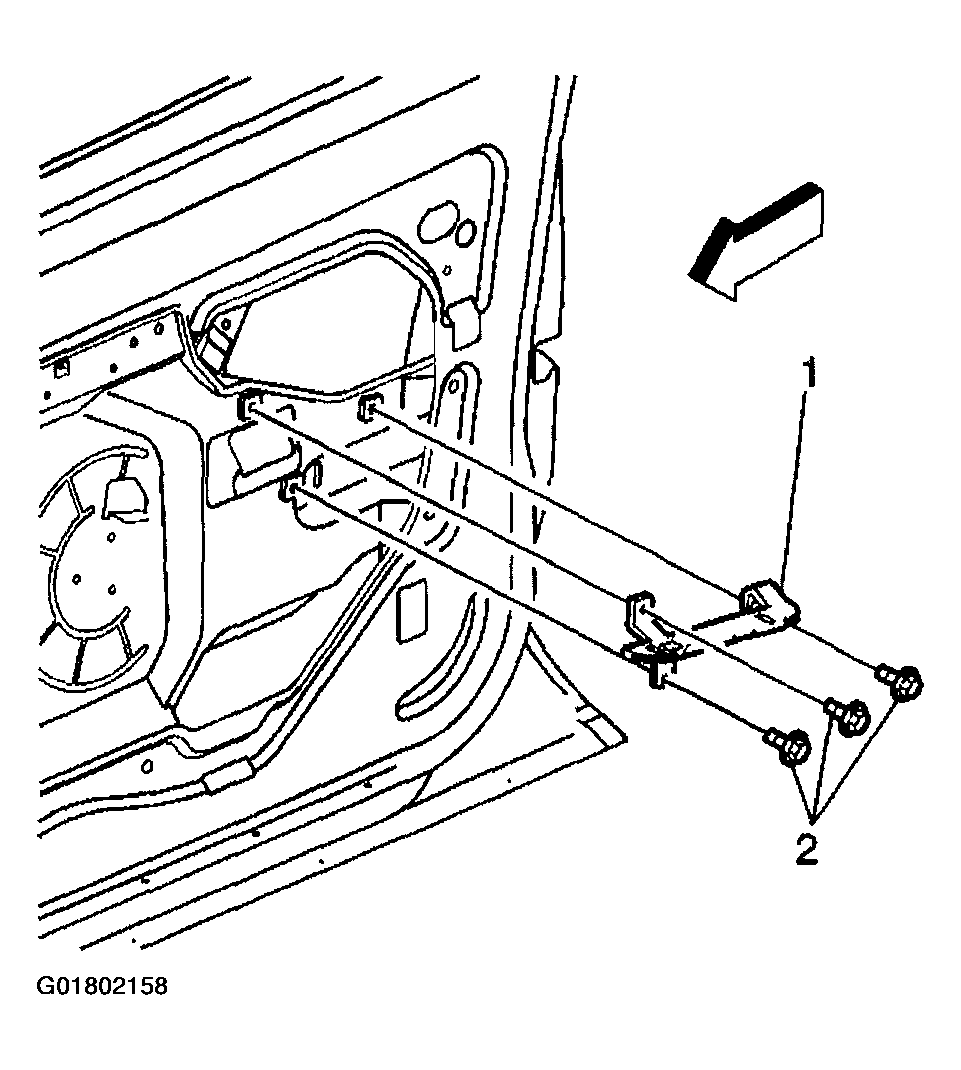

    Fig 1: Armrest Bracket
    G01802158Courtesy of GENERAL MOTORS CORP.
