Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the carpet retainer retaining clips to the openings in the body.
  2. Push downward in order to engage the retainer clips securing the carpet retainer to the vehicle.
  3. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  4. Close the door.

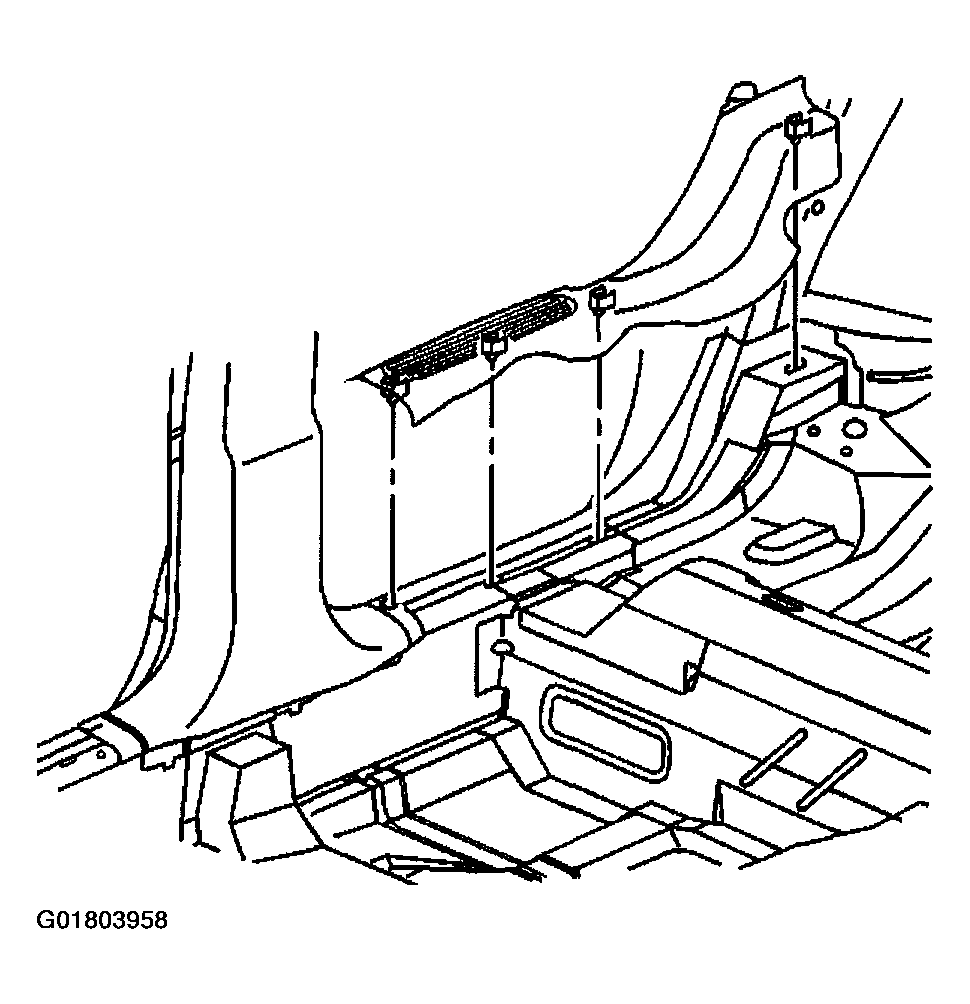

    Fig 1: Installing Carpet Retainer
    G01803958Courtesy of GENERAL MOTORS CORP.
