Removal Procedure

  1. Remove the front seat. Refer to SEAT REPLACEMENT - SPLIT BENCH .

    Important:  When drilling out the rivet do not enlarge the rivet hole.

  2. Drill out the rivet that retain the seat belt buckle to the rear of the front seat track using a 1/4 inch (6.35 mm) drill bit.

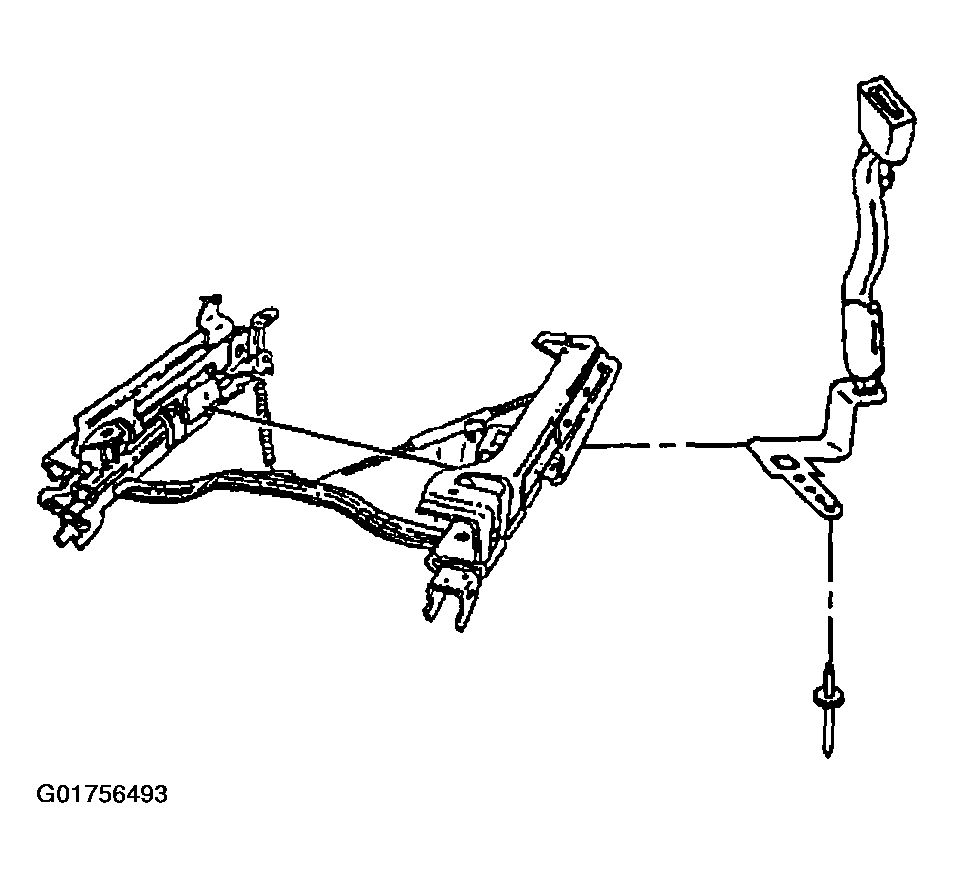

    Fig 1: Identifying Center Front Seat Belt Buckle
    G01756493Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt buckle from the front seat track.
