Removal Procedure

  1. Position the right front seat to the forward position.
  2. Remove the nut from the seat belt buckle.

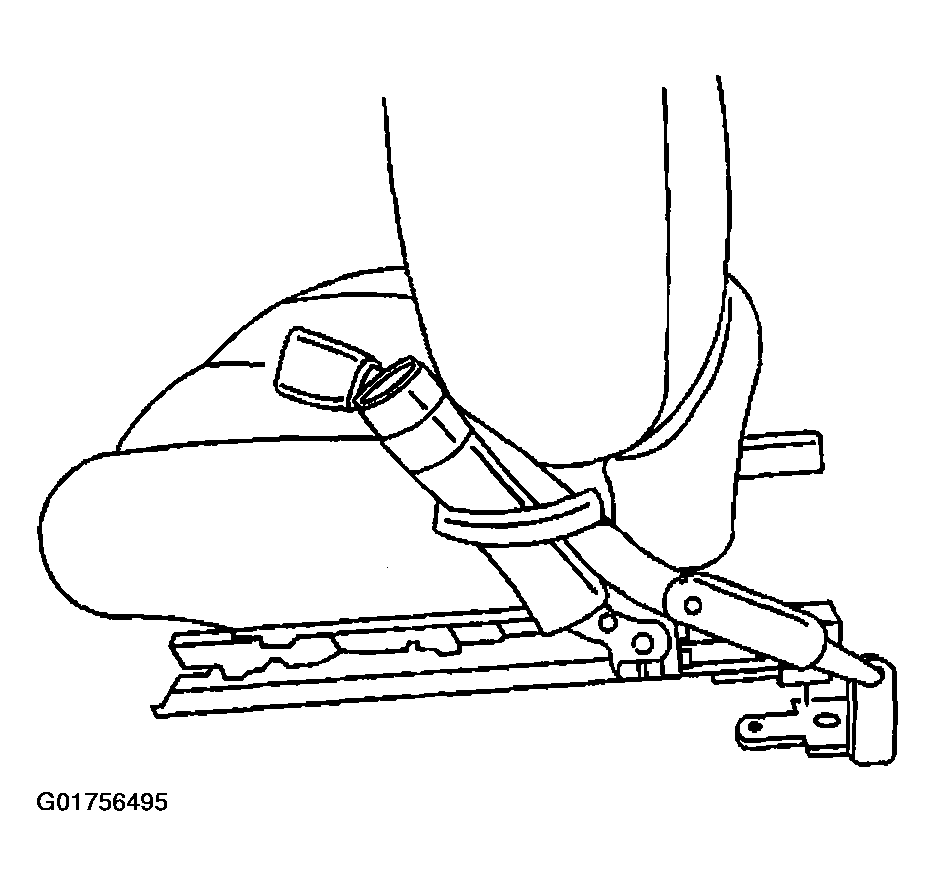

    3. Fig 1: Identifying Right Front Seat Belt Buckle
    G01756495Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt buckle from the right front seat.
