On-Vehicle

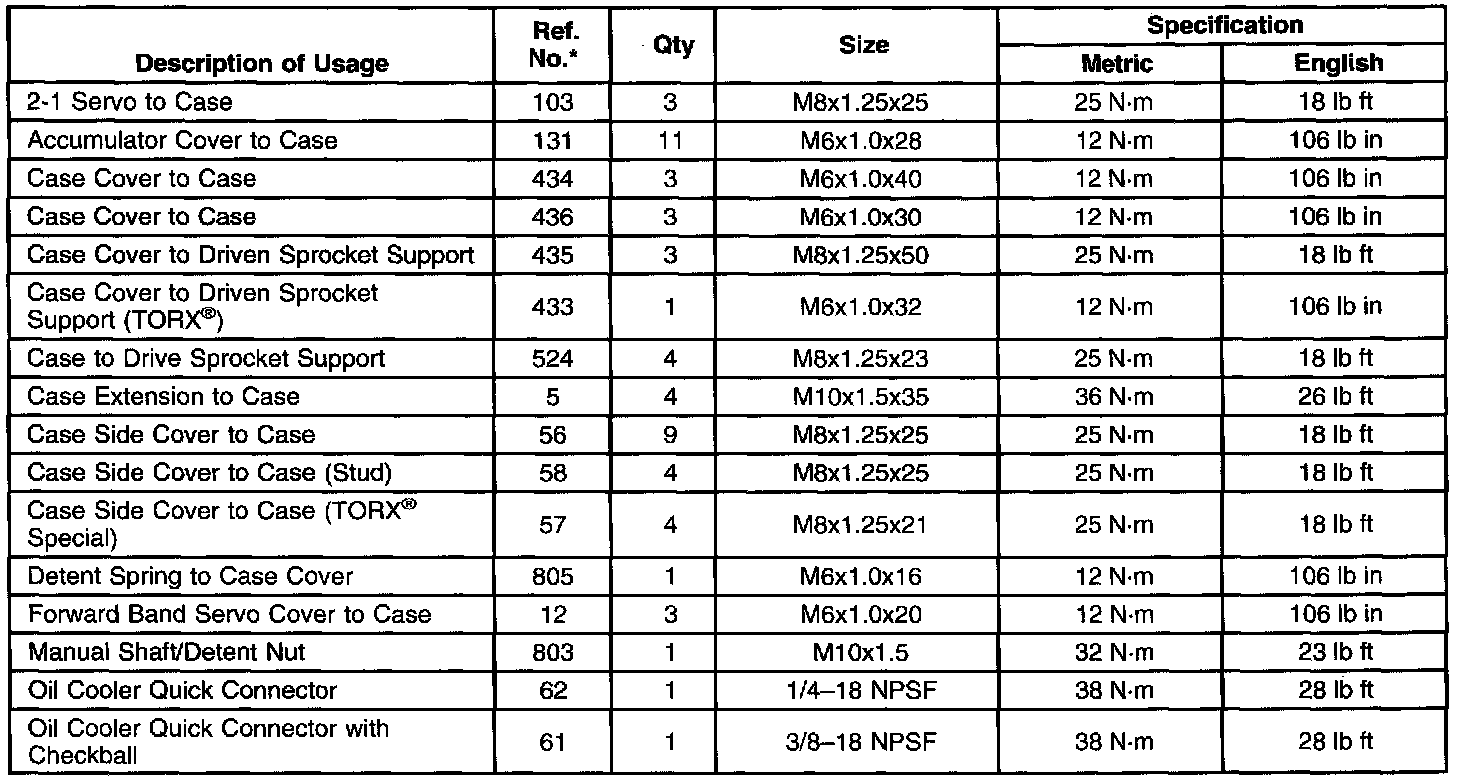

Fastener Tightening Specifications Part 1 of 2

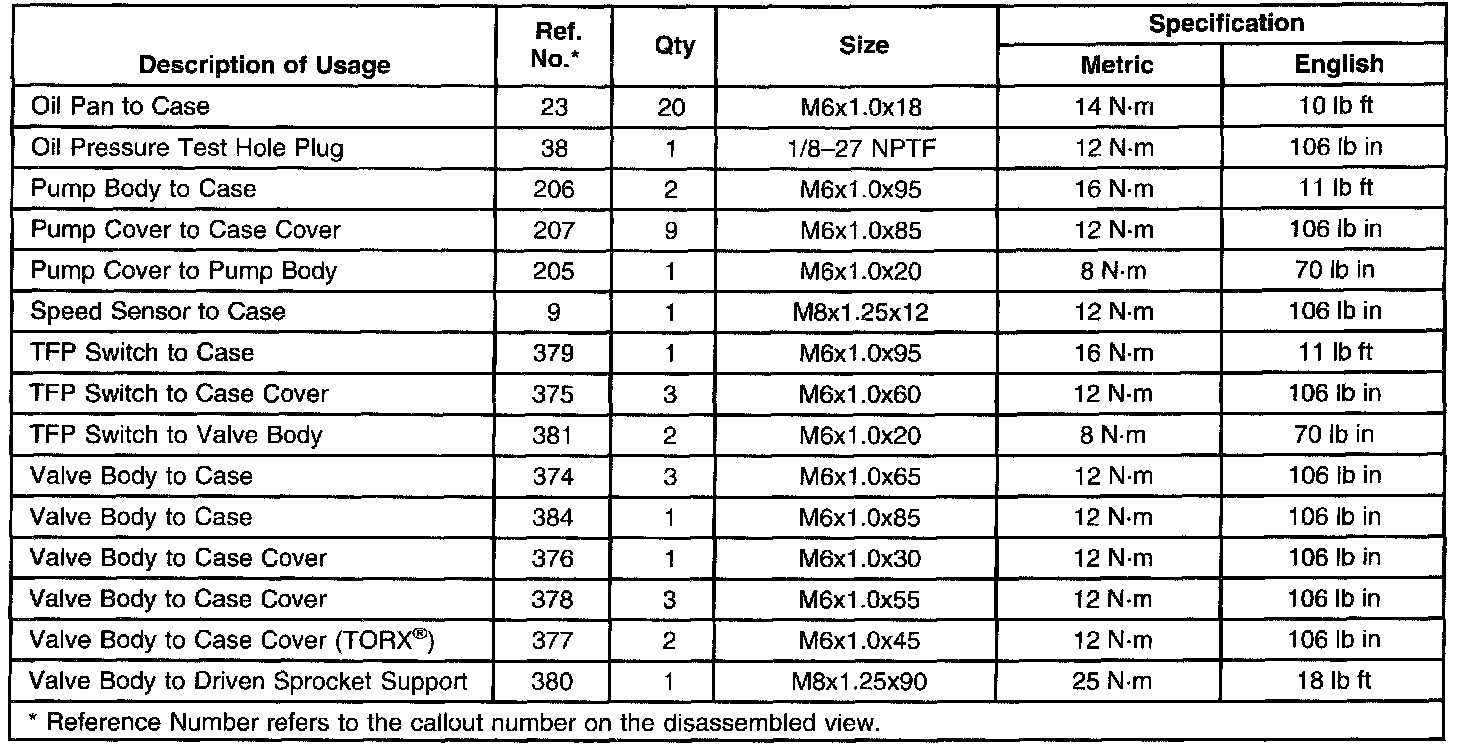

Fastener Tightening Specifications Part 2 of 2





Transmission General Specifications Part 1 of 2





Transmission General Specifications Part 2 of 2





Shift Solenoid Valve State and Gear Ratio





Shift Speed





Transmission Range Switch Logic
