Installation Procedure

  1. Push the top of the BCM up into the mounting bracket in order to install the BCM. Then, while holding the BCM up, engage the bottom of the BCM into the mounting bracket slot.
  2. Connect the BCM electrical connectors.
  3. Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages and Console.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  5. Set up the new BCM. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION  .

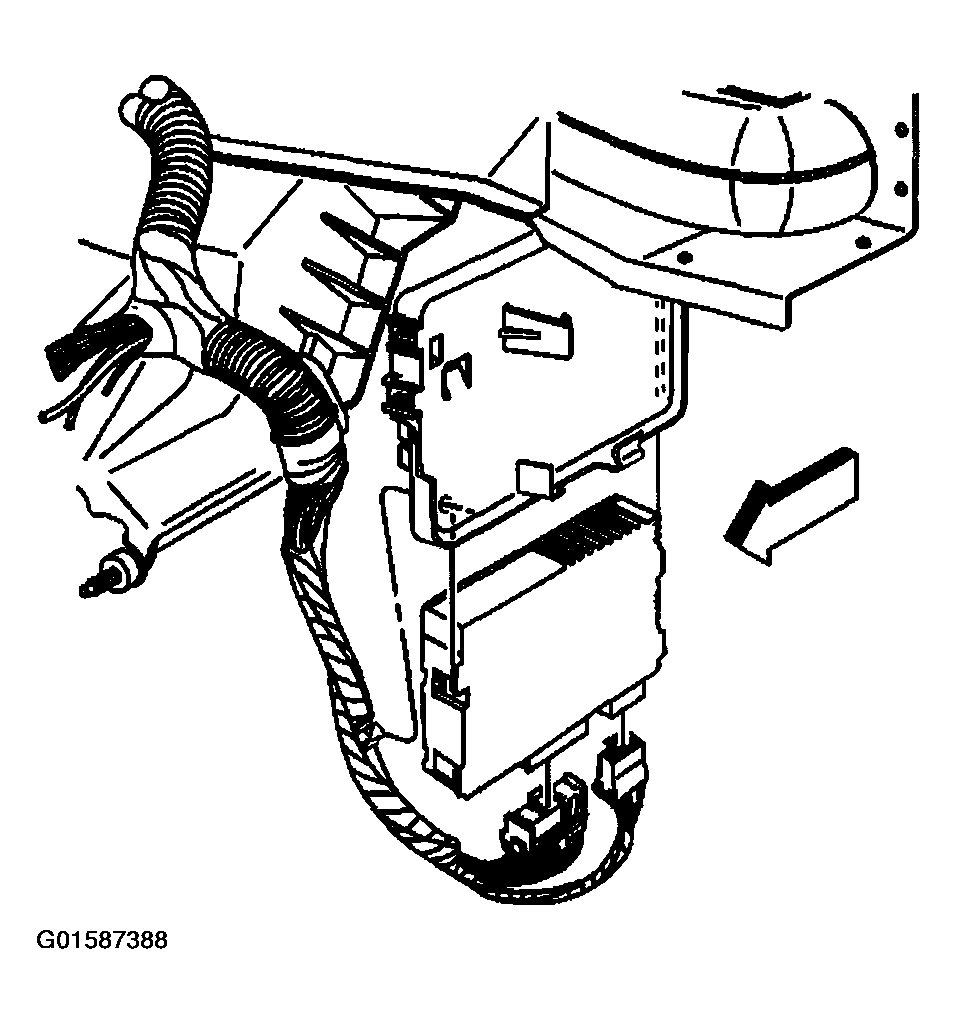

    Fig 1: Removing/Installing Body Control Module
    G01587388Courtesy of GENERAL MOTORS CORP.
