Installation Procedure

IMPORTANT: Locate the opening in the retaining guide block (1).
  1. Install the inside handle rod to the retaining guide block (1), push inward to secure the rod.

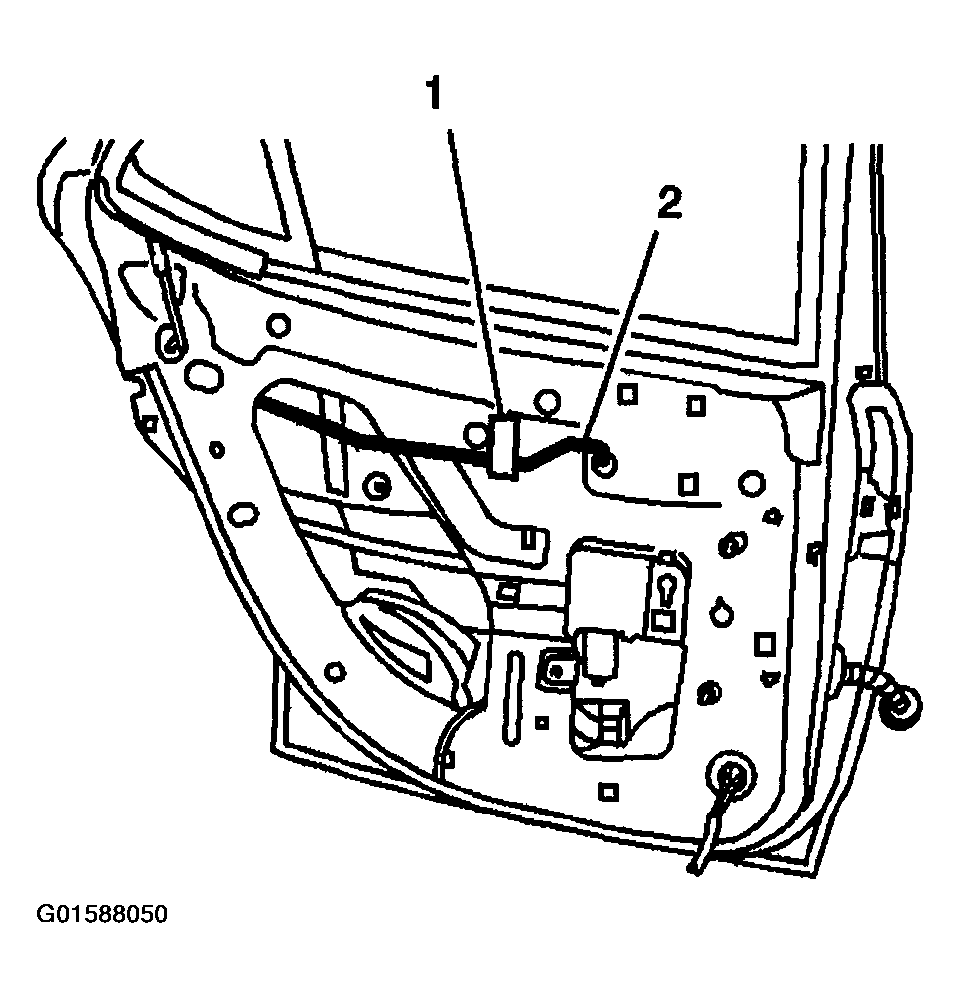

    2. Fig 1: Installing Handle Lock Rod Guide Block
    G01588050Courtesy of GENERAL MOTORS CORP.
  2. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  or Install the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
