Body Control System Component Views

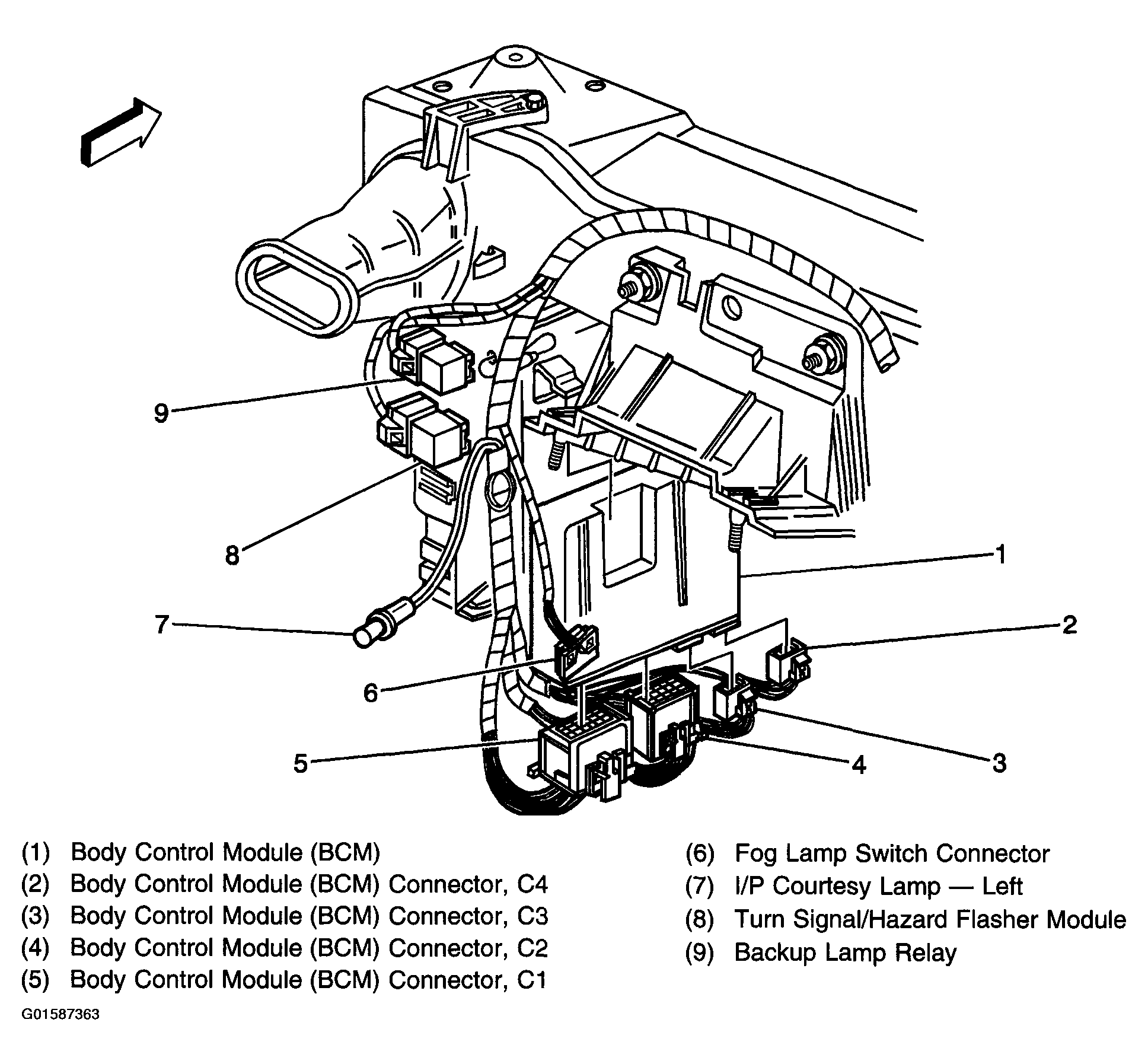

Fig 1: Locating Body Control System Component Views (Below Left Side Of I/P)
G01587363Courtesy of GENERAL MOTORS CORP.
