Body Control System Connector End Views

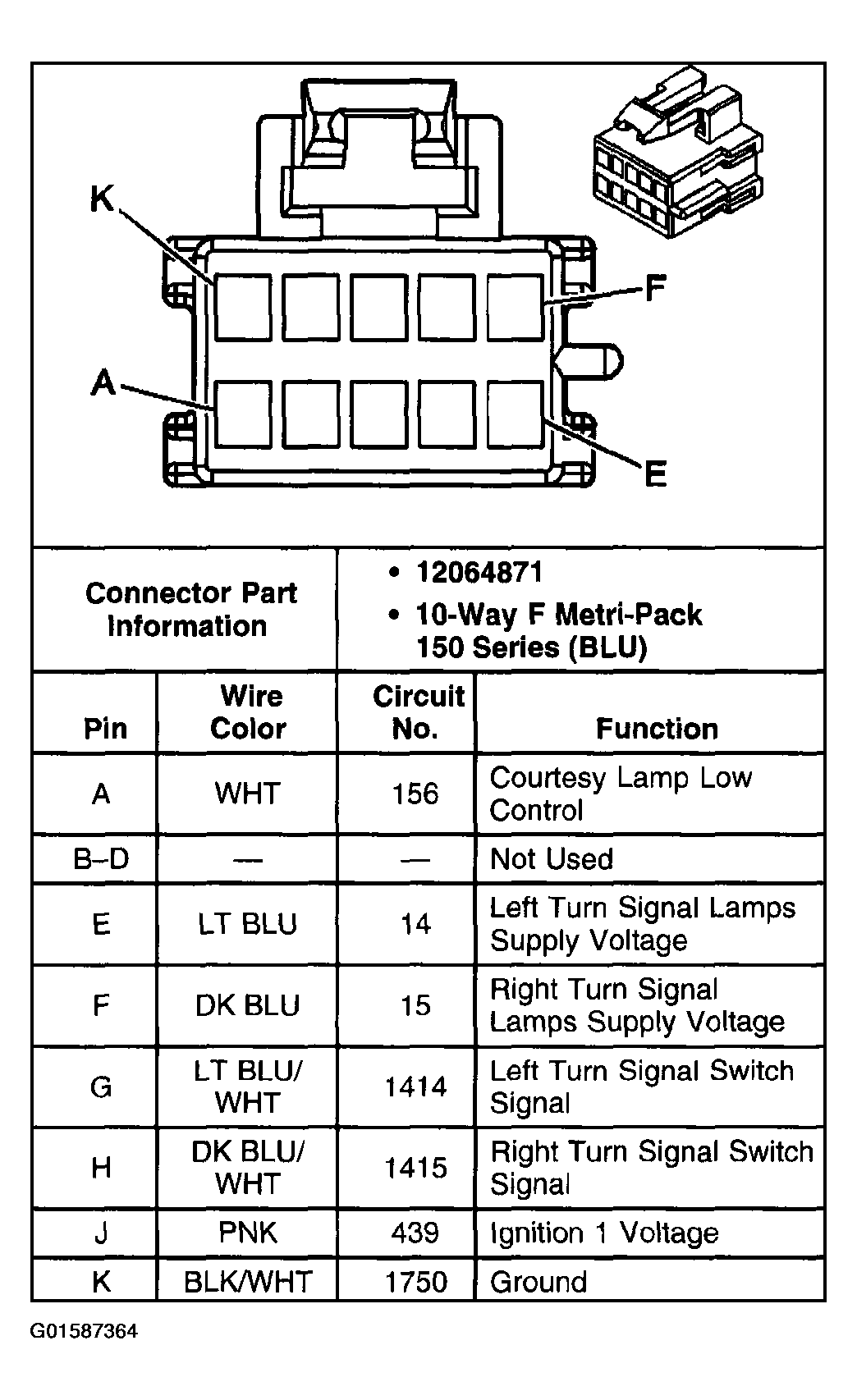

Fig 1: Body Control Module Connector End Views (BCM) C1
G01587364Courtesy of GENERAL MOTORS CORP.

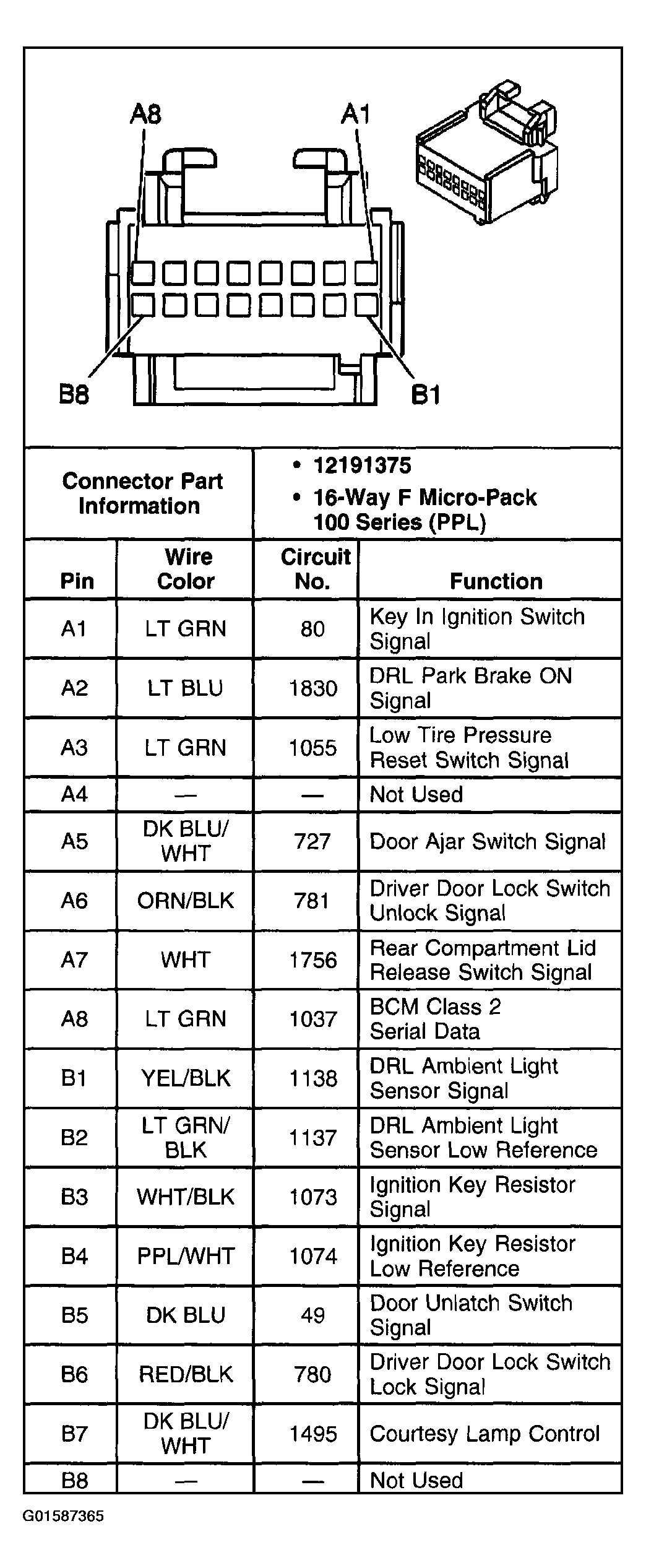

Fig 2: Body Control Module Connector End Views (BCM) C2
G01587365Courtesy of GENERAL MOTORS CORP.

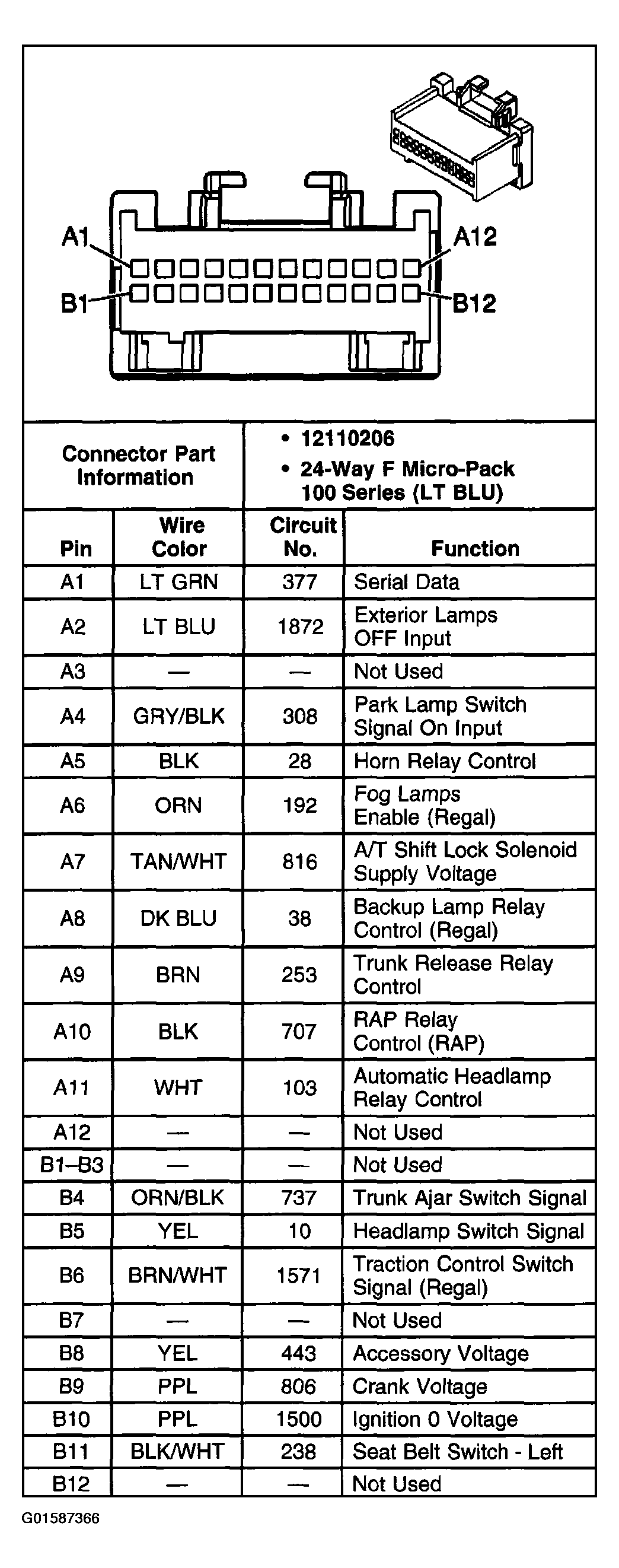

Fig 3: Body Control Module Connector End Views (BCM) C3
G01587366Courtesy of GENERAL MOTORS CORP.

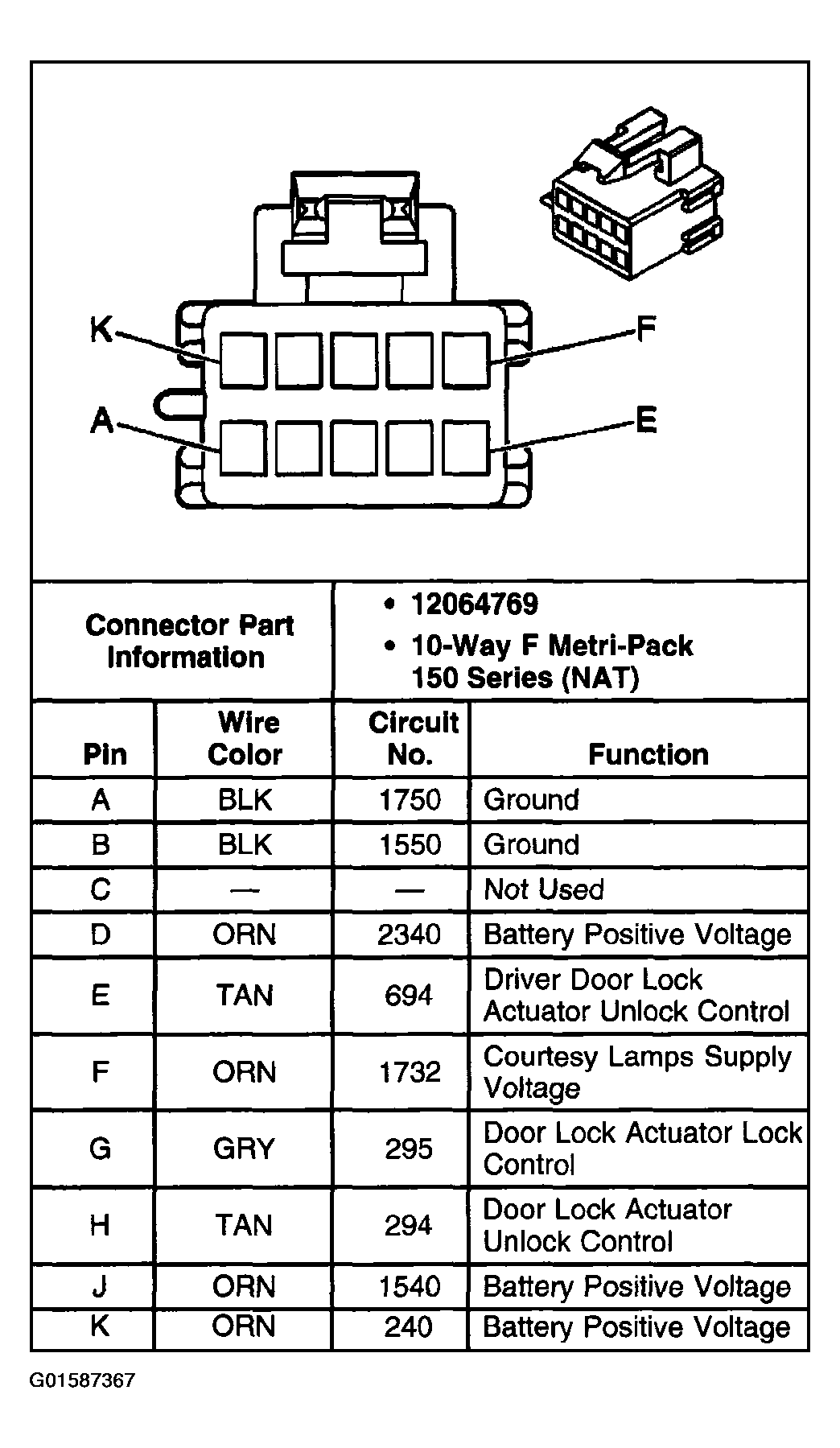

Fig 4: Body Control Module Connector End Views (BCM) C4
G01587367Courtesy of GENERAL MOTORS CORP.
