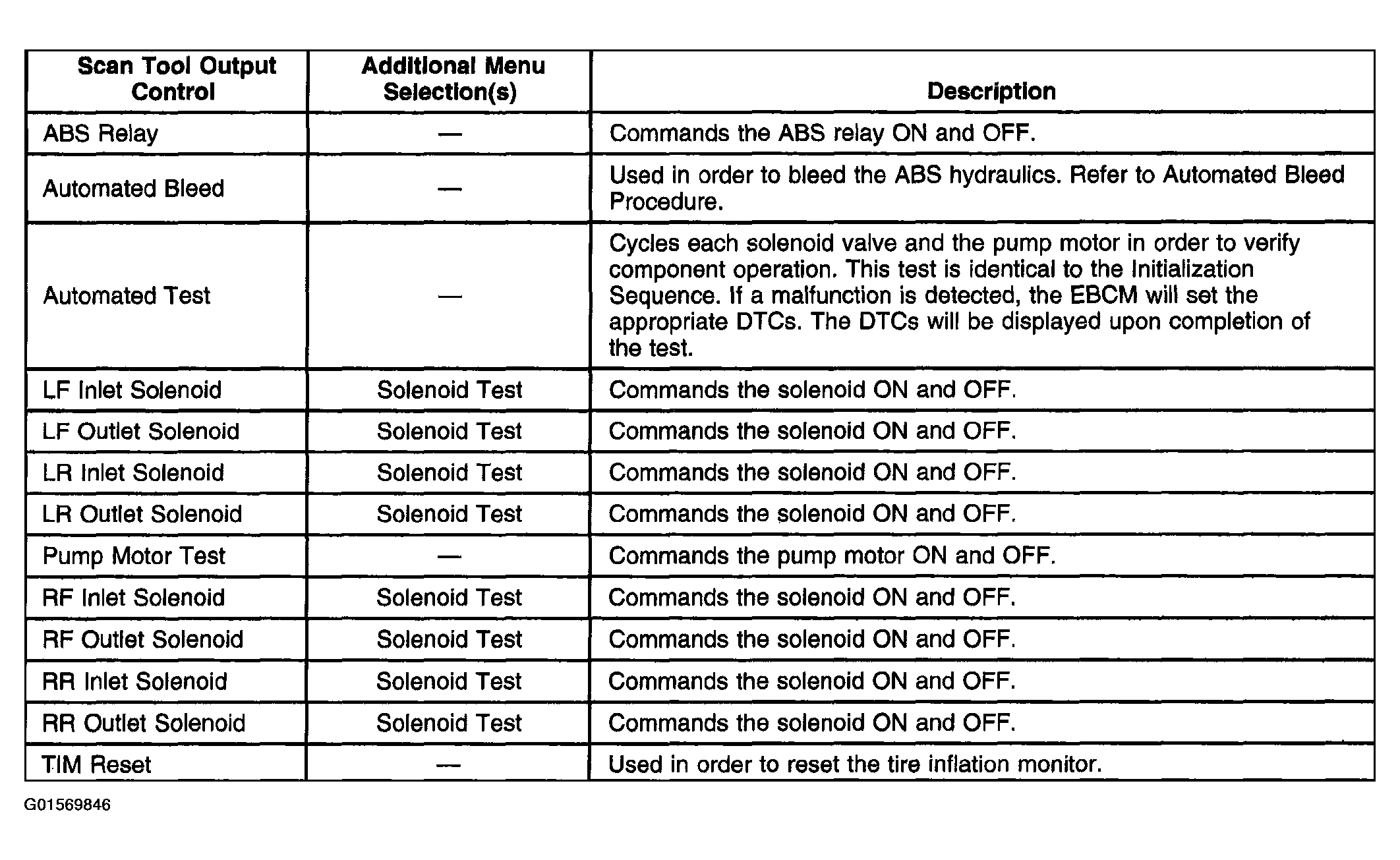

Scan Tool Output Controls
Fig 1: Electronic Brake Control Module (EBCM)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
