Identifying Input Speed Sensor Connector End View (Wiring Harness Side)

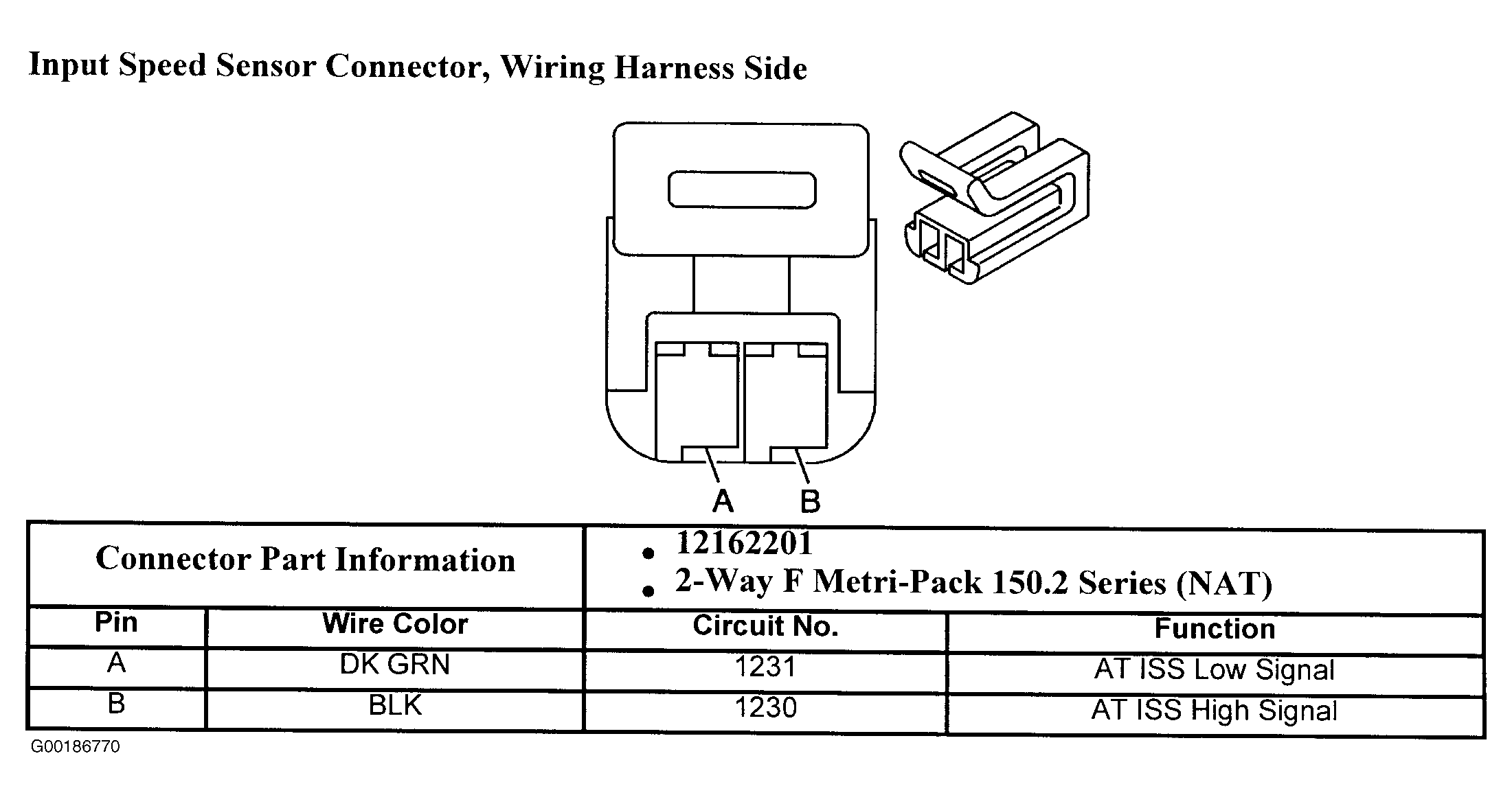

Fig 1: Identifying Input Speed Sensor Connector End View (Wiring Harness Side)
G00186770Courtesy of GENERAL MOTORS CORP.
