Identifying Retained Accessory Power (RAP) Relay Connector End View

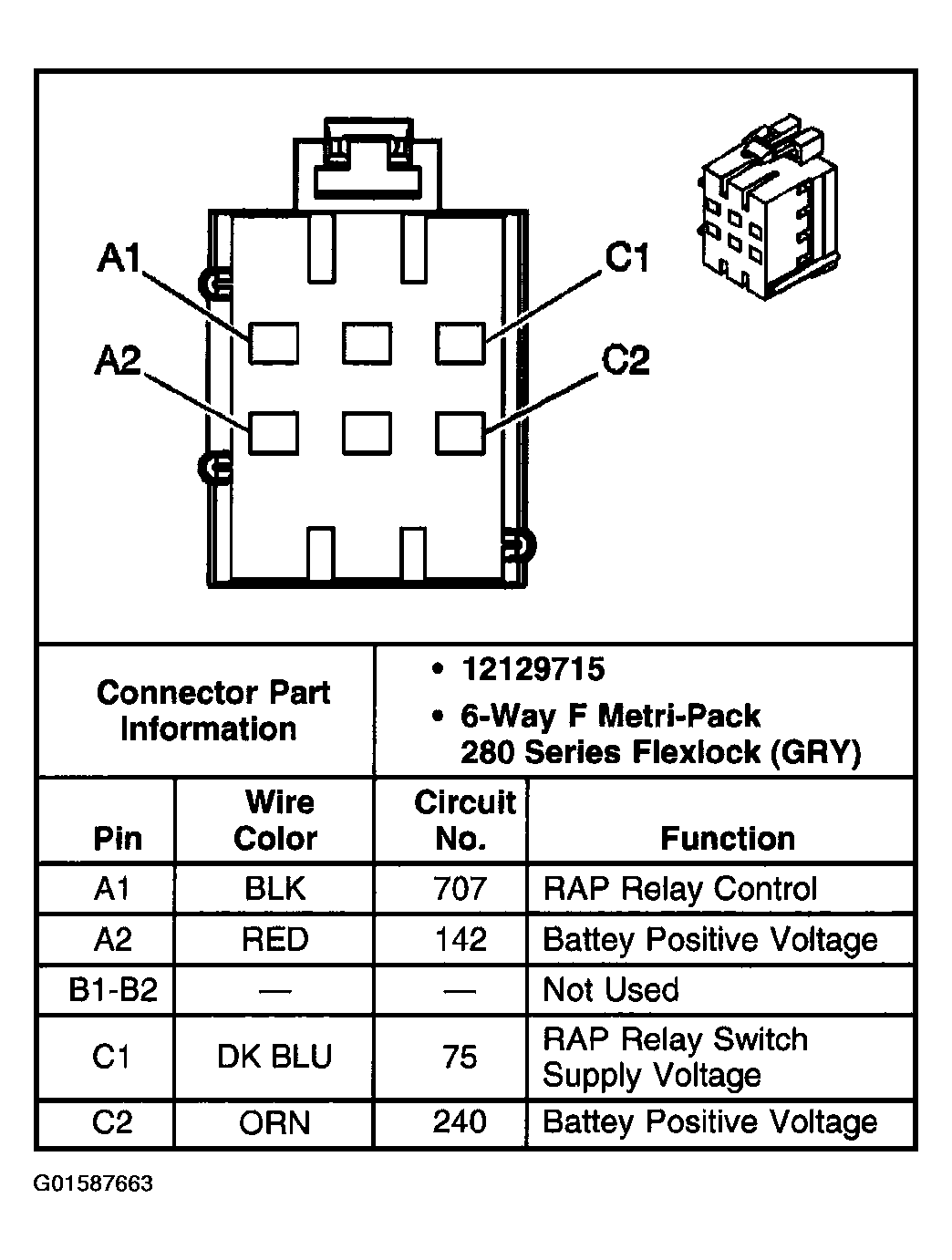

Fig 1: Identifying Retained Accessory Power (RAP) Relay Connector End View
G01587663Courtesy of GENERAL MOTORS CORP.
