Automatic Transmission Shift Lock Control Connector End Views

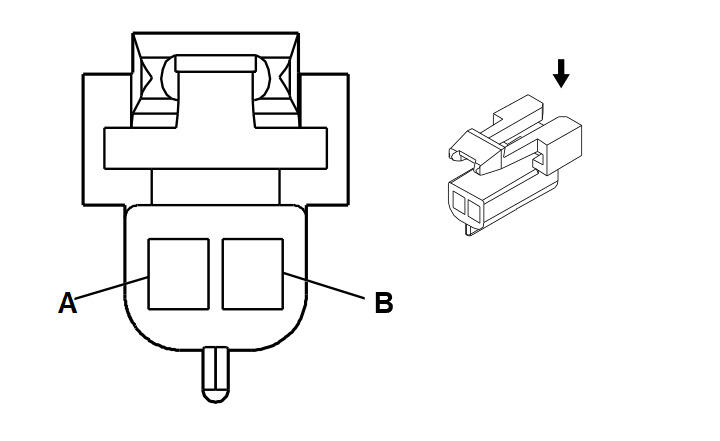

A/T Shift Lock Control Solenoid Connector End Views (Century)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052832 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	DK GRN/ WHT	1135	A/T Shift Lock Control Solenoid Supply Voltage
B	BLK	150	Ground

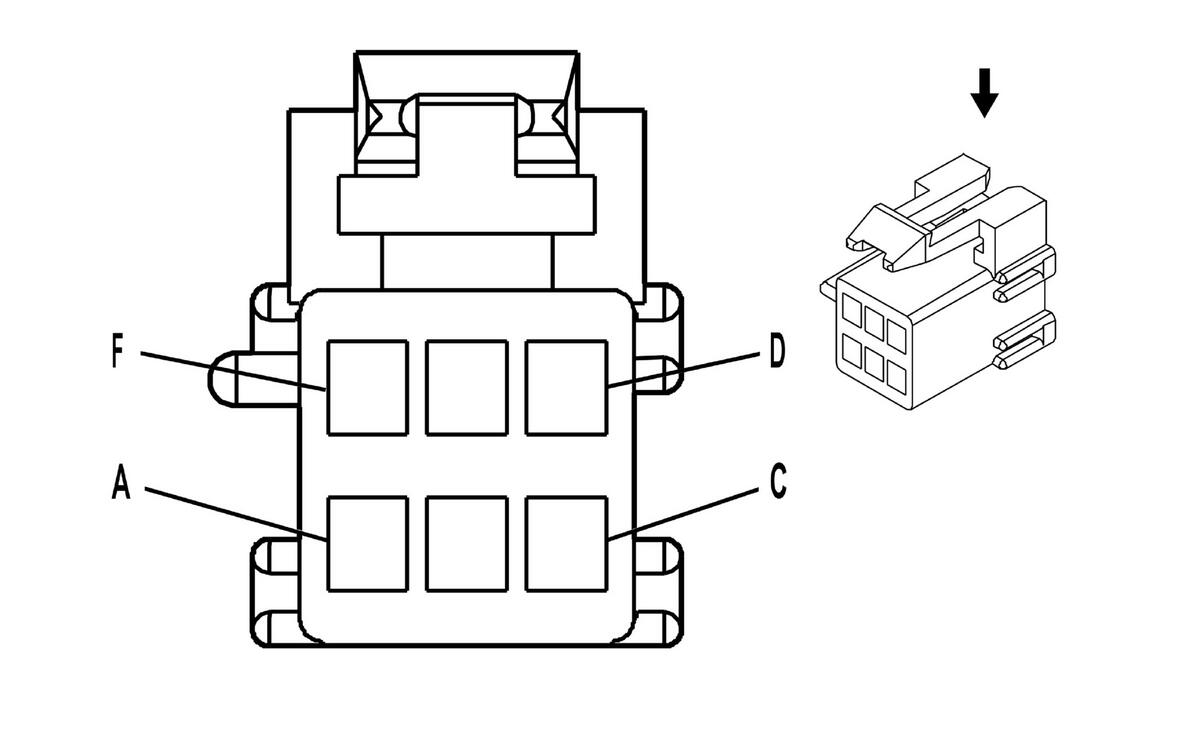

A/T Shift Lock Control Switch Connector End Views (Regal)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064762 6-Way F Metri-Pack 150 Series (GRY)
Pin	Wire Color	Circuit No.	Function
A	ORN/BLK	434	Neutral Safety Switch Signal
B	PNK	1439	Ignition 1 Voltage
C	LT BLU	1134	Ignition Lock Cylinder Control Actuator Signal
D	-	-	Not Used
E	DK GRN/WHT	1135	A/T Shift Lock Control Solenoid Supply Voltage
F	PPL	1600	Ignition 0 Voltage

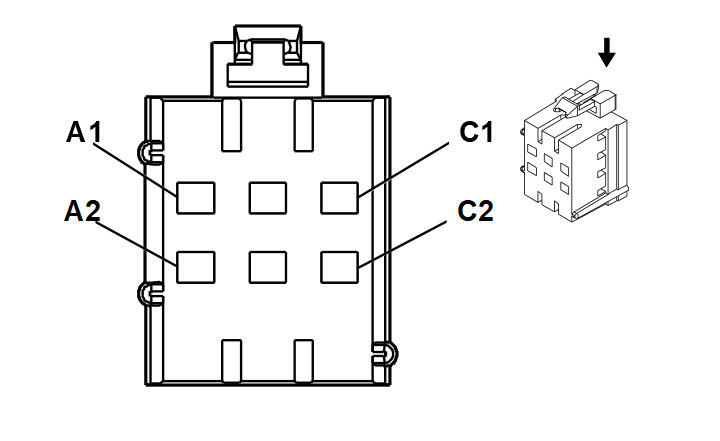

Brake to Shift Relay Connector End Views

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129715 6-Way F Metri-Pack 280 Series Flexlock (MD GRY)
Pin	Wire Color	Circuit No.	Function
A1	PNK	1439	Ignition 1 Voltage
	PNK	1439	Ignition 1 Voltage (Regal)
A2	ORN/BLK	434	Neutral Safety Switch Signal
B1-B2	-	-	Not Used
C1	BLK	1550	Ground
C2	TAN/WHT	816	A/T Shift Lock Solenoid Supply Voltage
