HVAC Control Module Connector End View Terminal (2 Of 2)

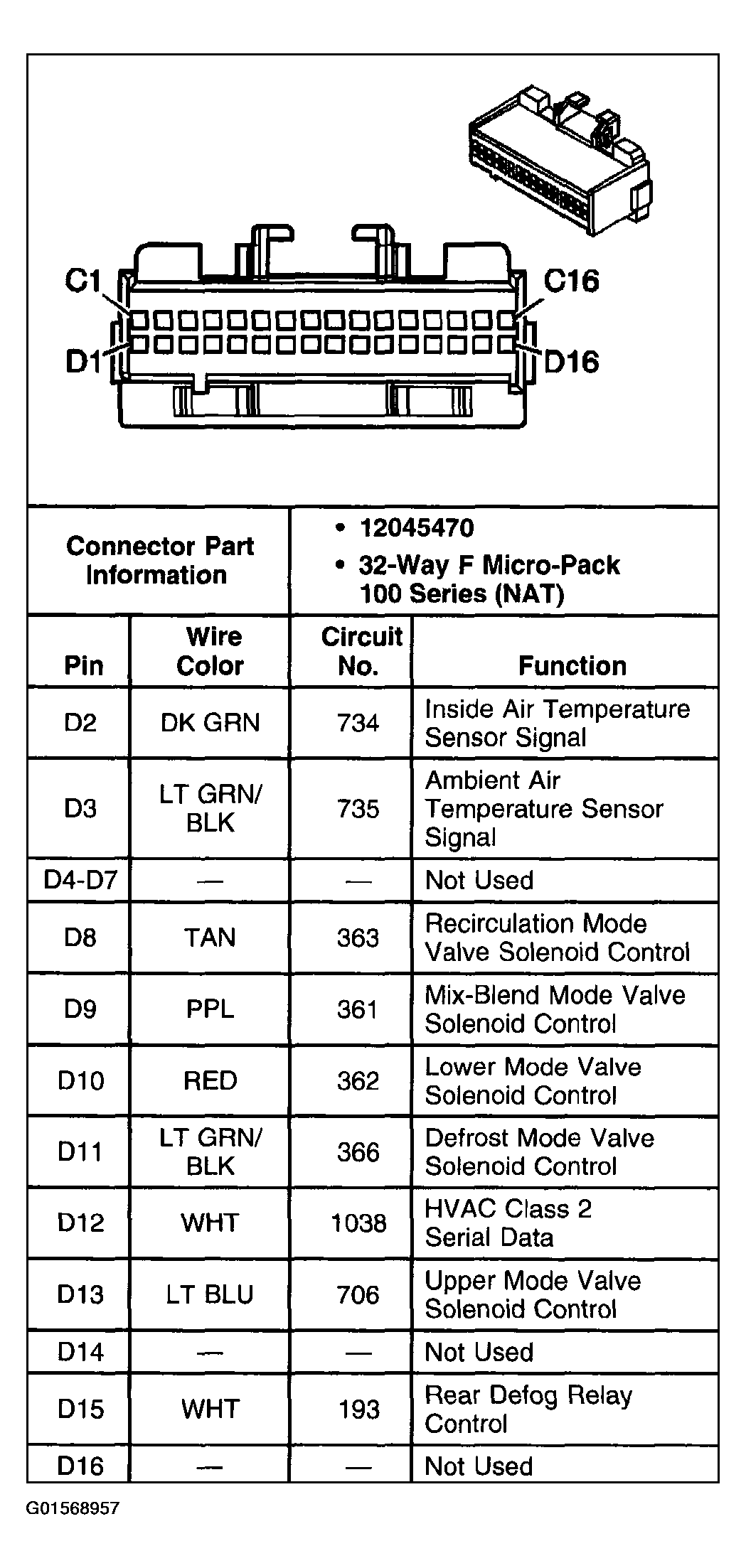

Fig 1: HVAC Control Module Connector End View Terminal (2 Of 2)
G01568957Courtesy of GENERAL MOTORS CORP.
