Installation Procedure

  1. Position the memory seat module to the bottom of the seat cushion.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the memory seat module fasteners.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  3. Install the electrical connectors to the memory seat module.
  4. Ensure the wiring harness is positioned in the same location in which it was removed.
  5. Install the seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  6. Enable the SIR system. Refer to ZONE 7 .

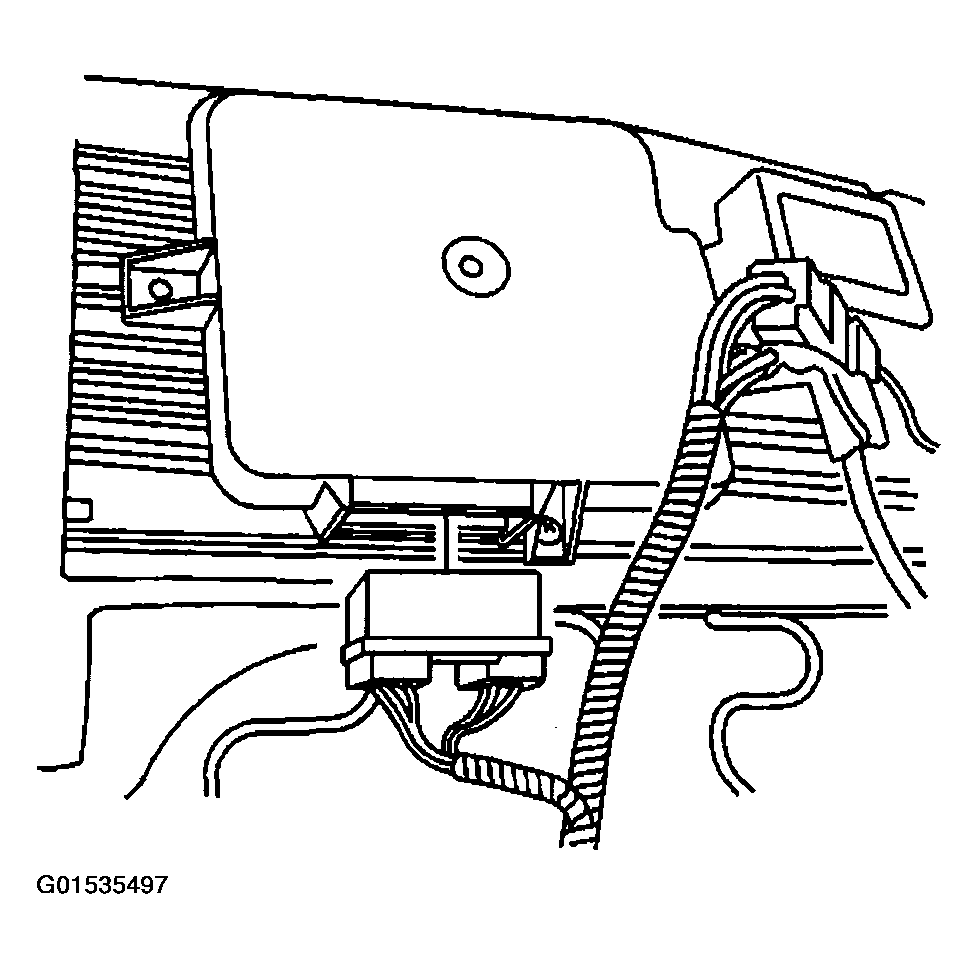

    Fig 1: Installing Electrical Connectors To Memory Seat Module
    G01535497Courtesy of GENERAL MOTORS CORP.
