Automatic Transmission Shift Lock Control Connector End Views

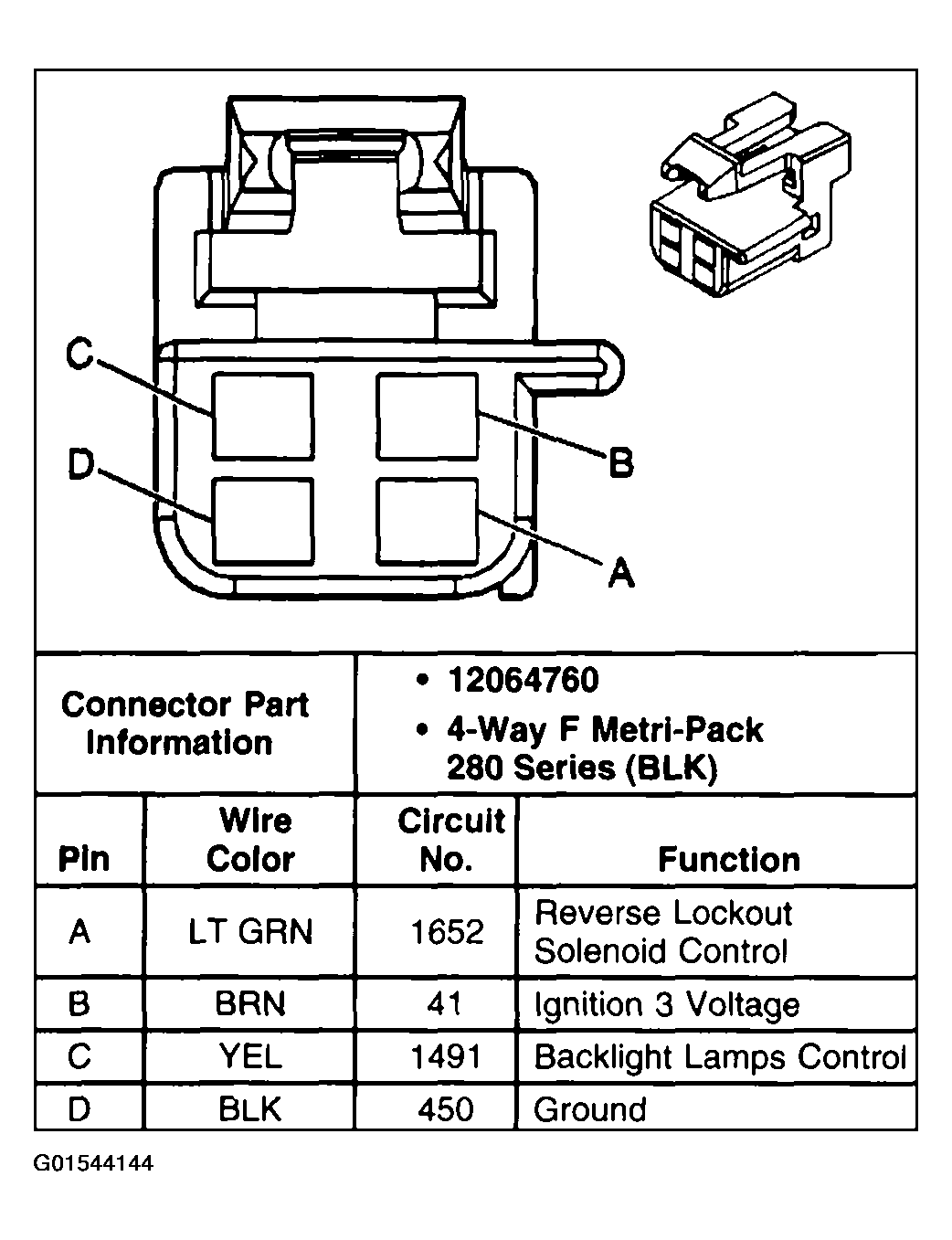

Fig 1: Shift Control Assembly C1 Connector End View
G01544144Courtesy of GENERAL MOTORS CORP.

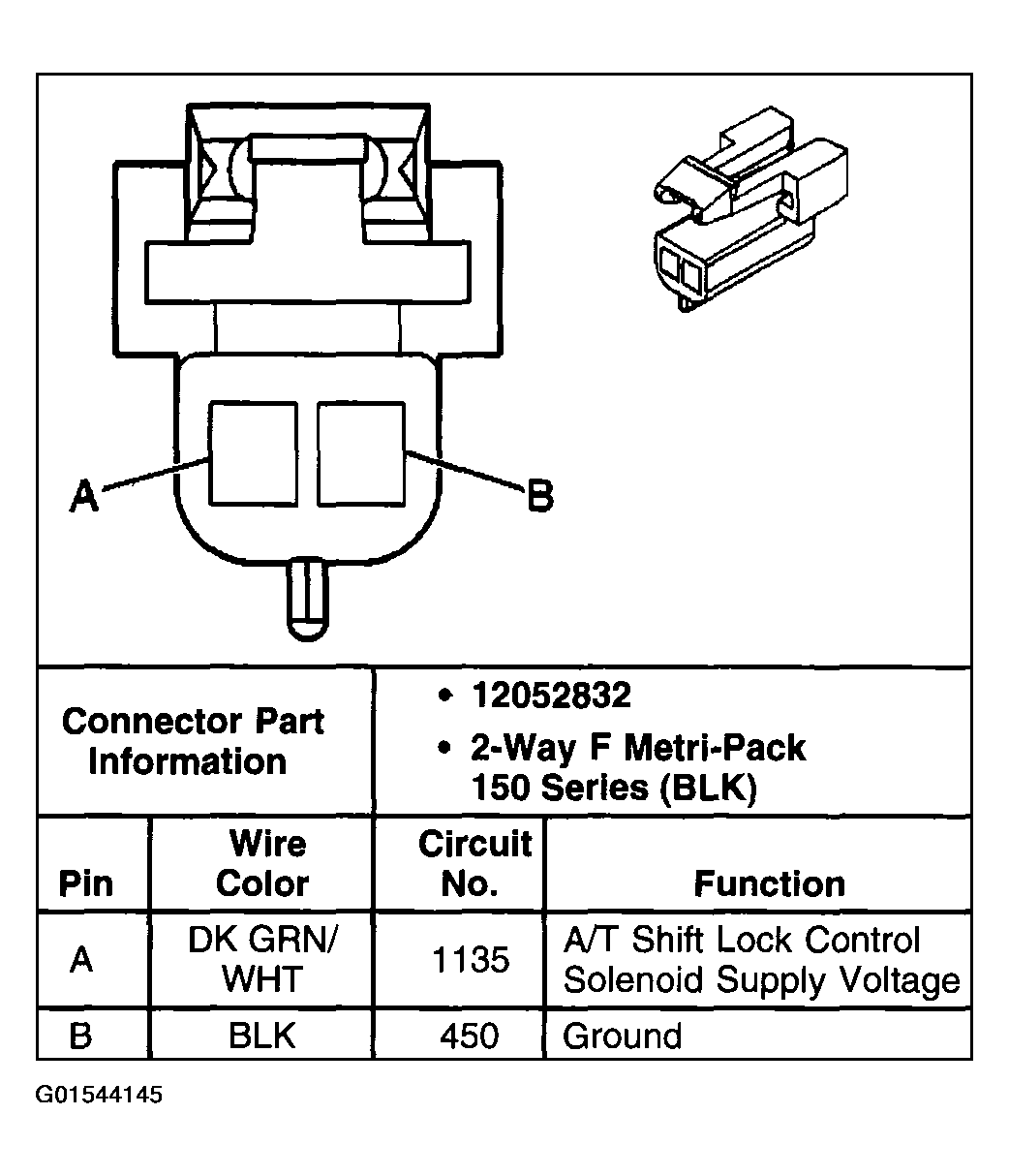

Fig 2: Shift Control Assembly C2 Connector End View
G01544145Courtesy of GENERAL MOTORS CORP.

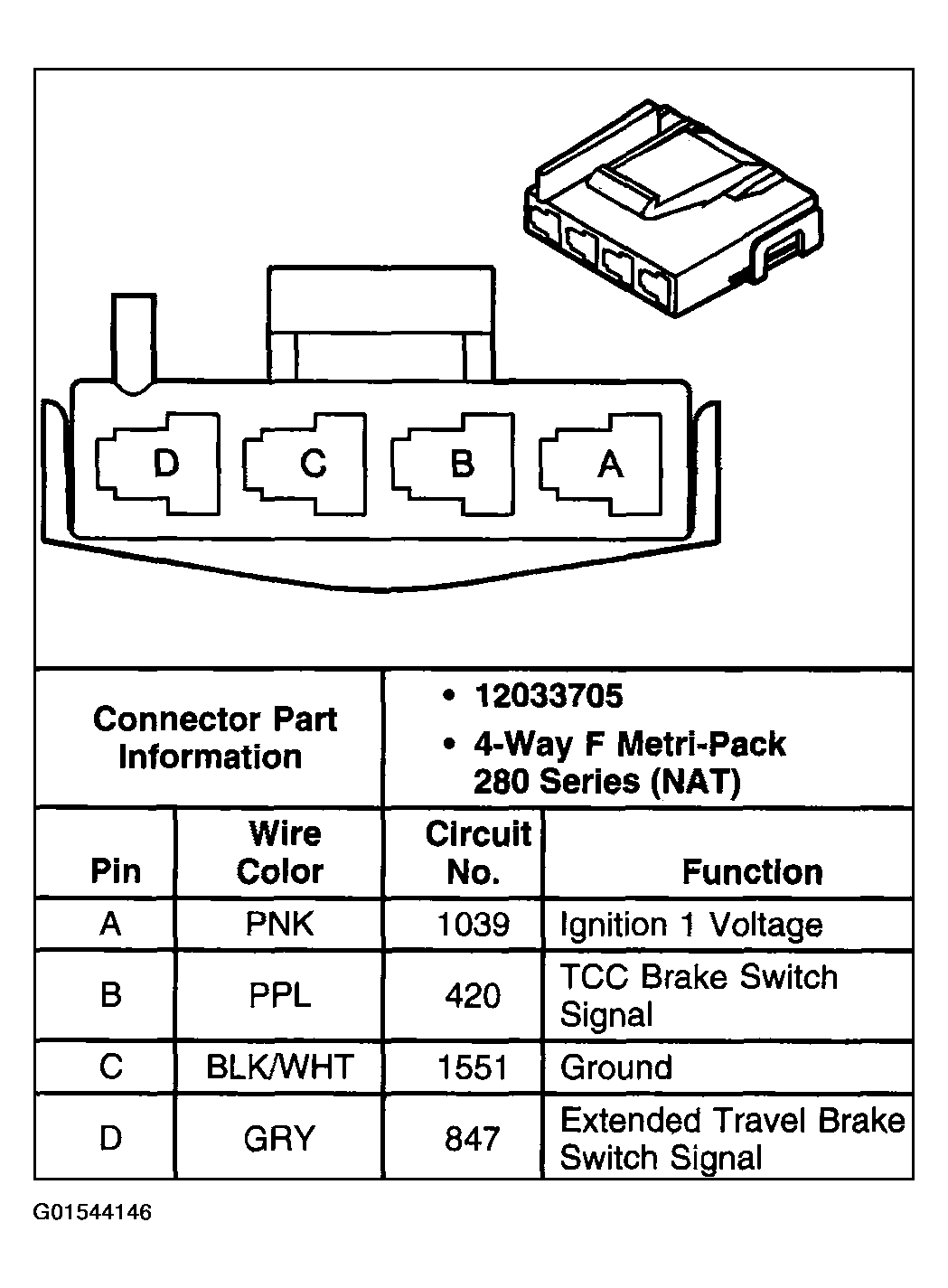

Fig 3: TCC/Cruise Release Switch Connector End View
G01544146Courtesy of GENERAL MOTORS CORP.
