Stop Lamp/AT Shift Lock Control Switch Connector End View C1

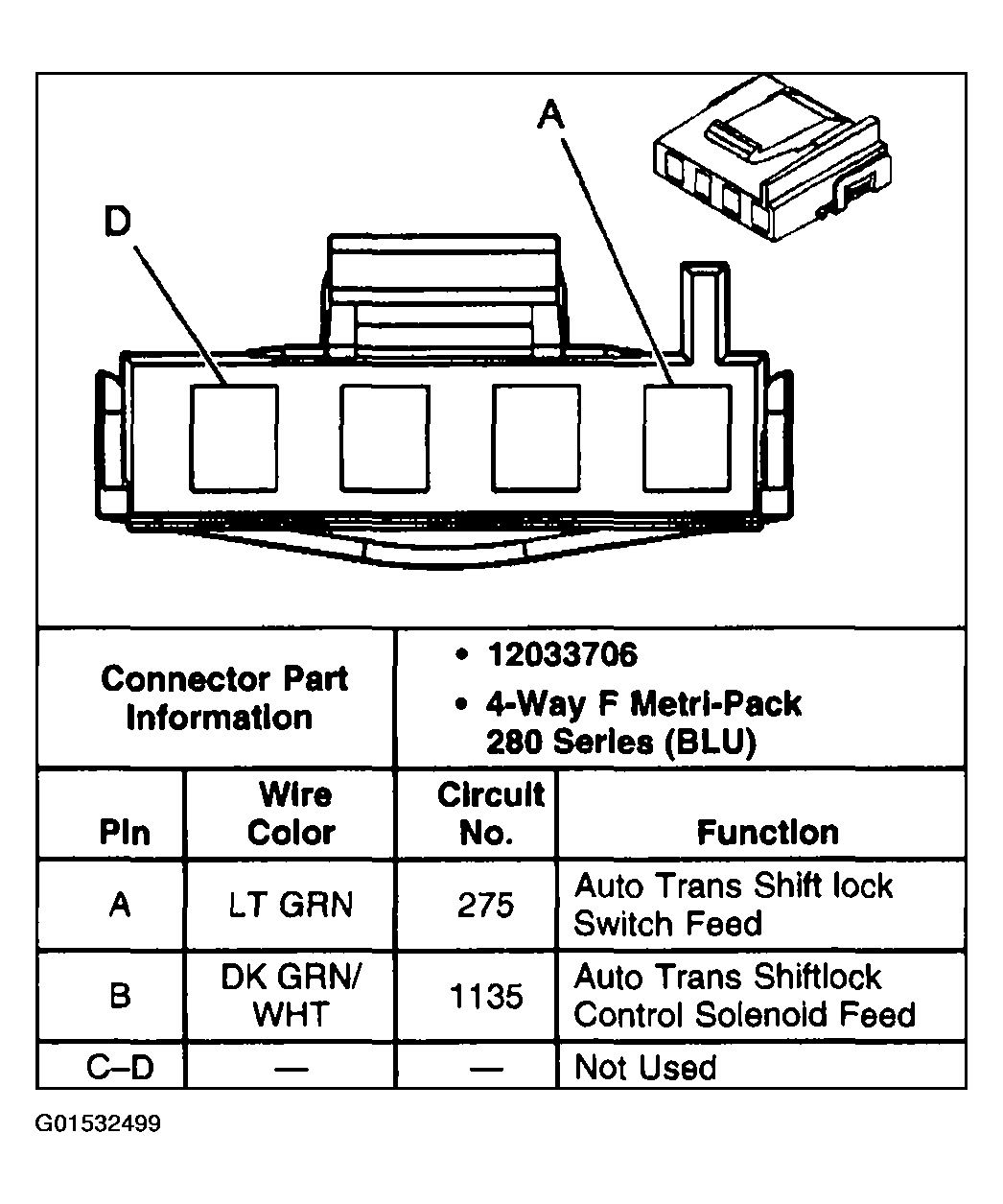

Fig 1: Stop Lamp/AT Shift Lock Control Switch C1
G01532499Courtesy of GENERAL MOTORS CORP.
