Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the engine oil level sensor to the oil pan.
Tighten

Tighten the sensor to 20 N-m (15 lb ft).

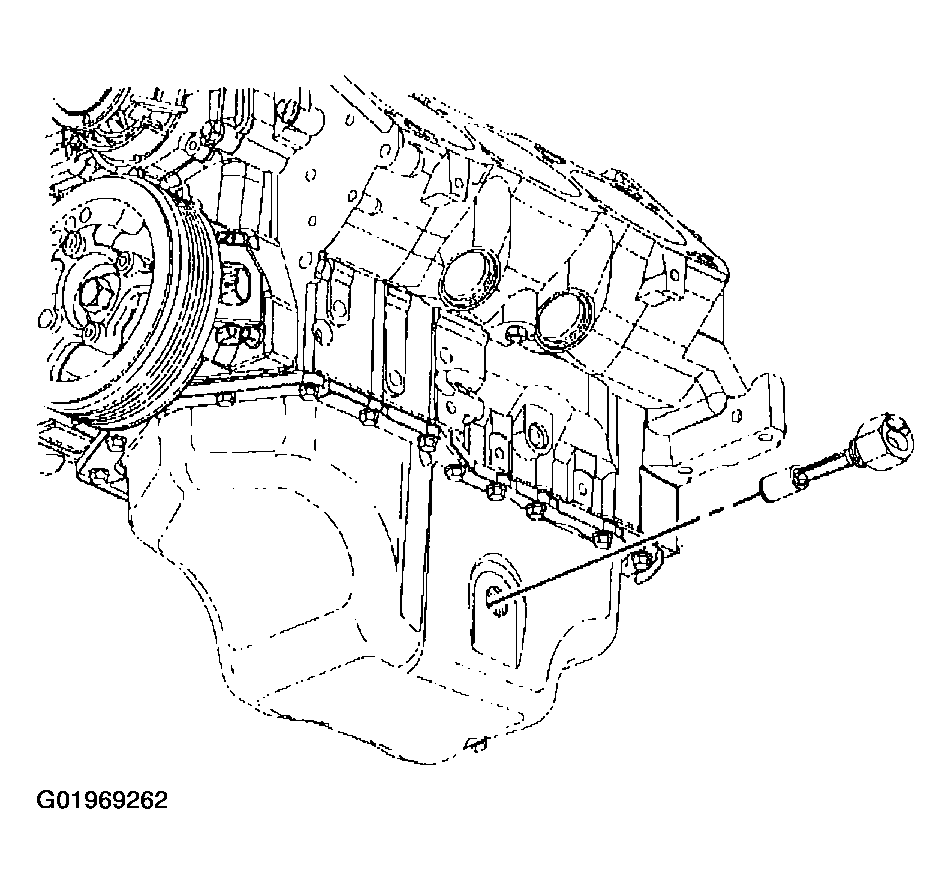

Fig 1: Installing Engine Oil Level Sensor To Oil Pan
Courtesy of GENERAL MOTORS CORP.
Connect the oil level sensor electrical connector.
Install the engine oil drain plug.
Tighten

Tighten the plug to 30 N-m (22 lb ft).

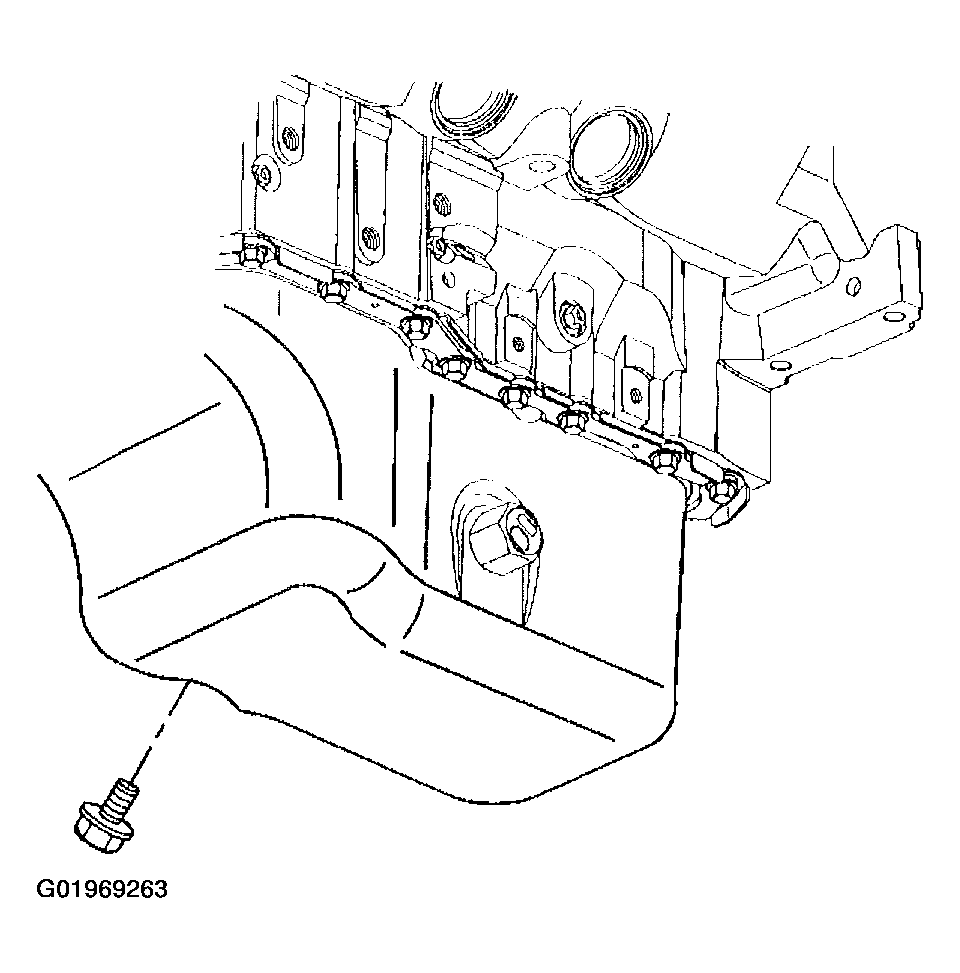

Fig 2: Installing Engine Oil Drain Plug
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
Fill the crankcase with engine oil. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT .
