Door Lock/Indicator Schematics

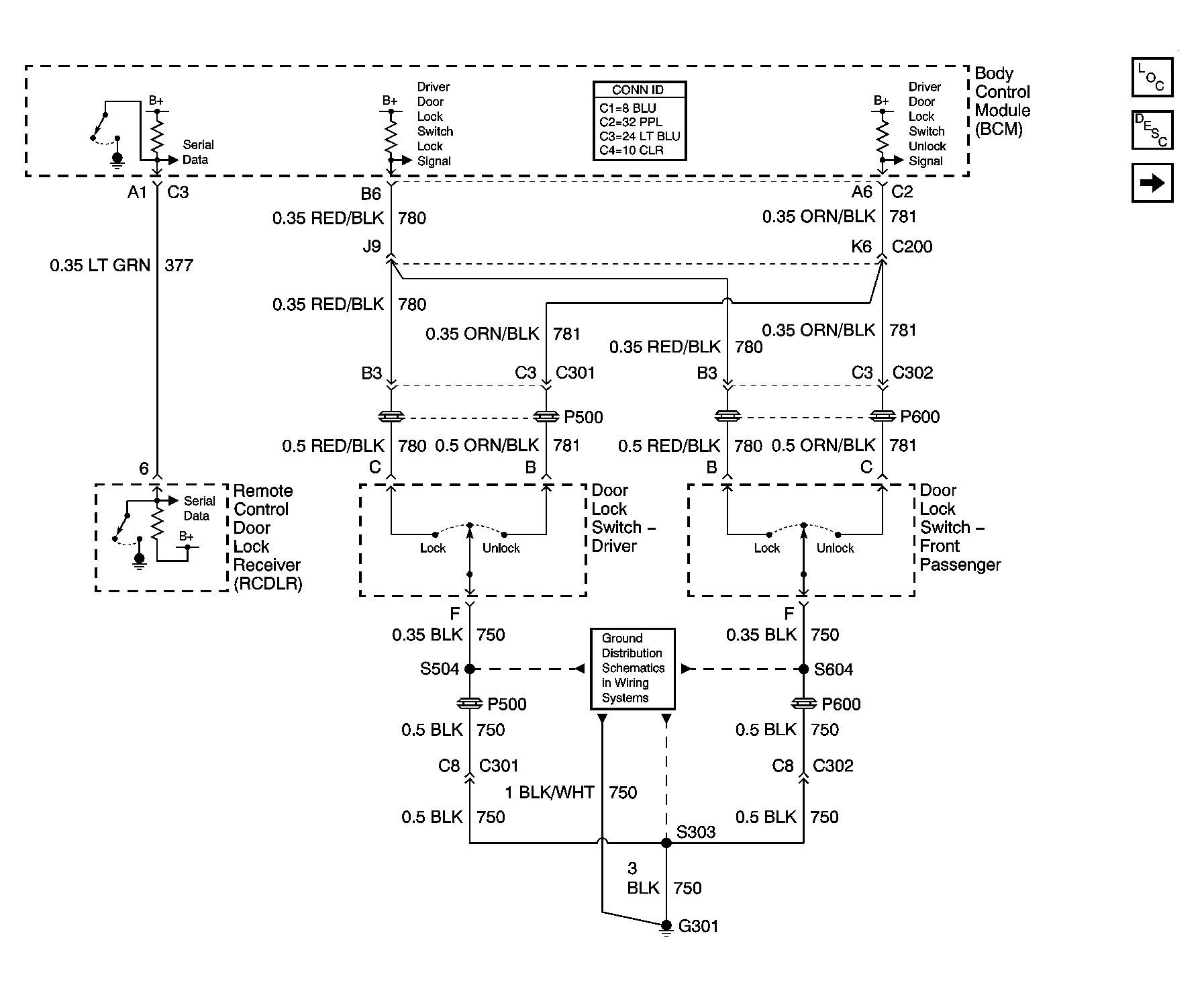

Fig 1: Door Lock/Indicator Schematics - Switches
GM1276246Courtesy of GENERAL MOTORS CORP.

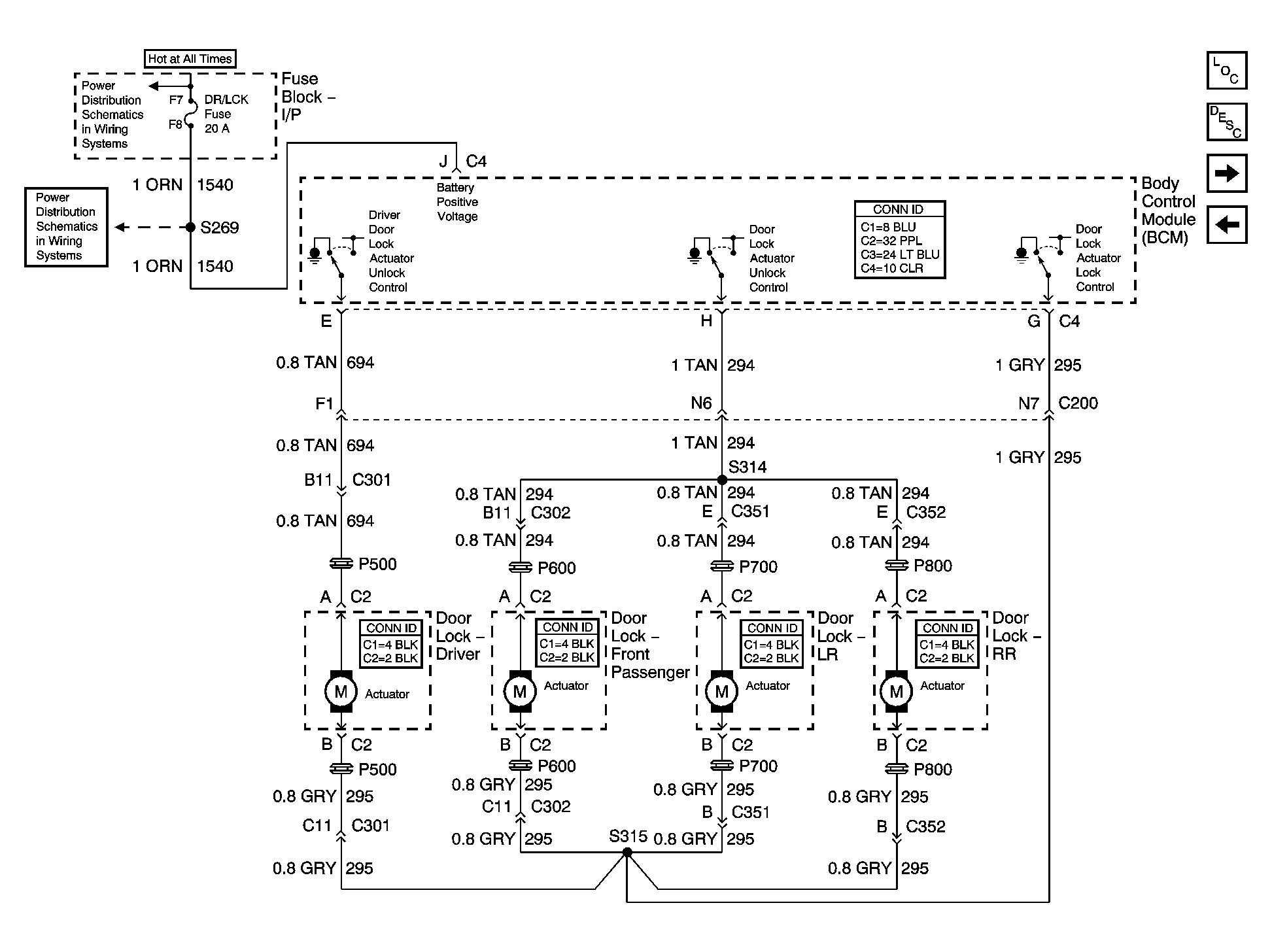

Fig 2: Door Lock/Indicator Schematics - Actuators
GM1354608Courtesy of GENERAL MOTORS CORP.

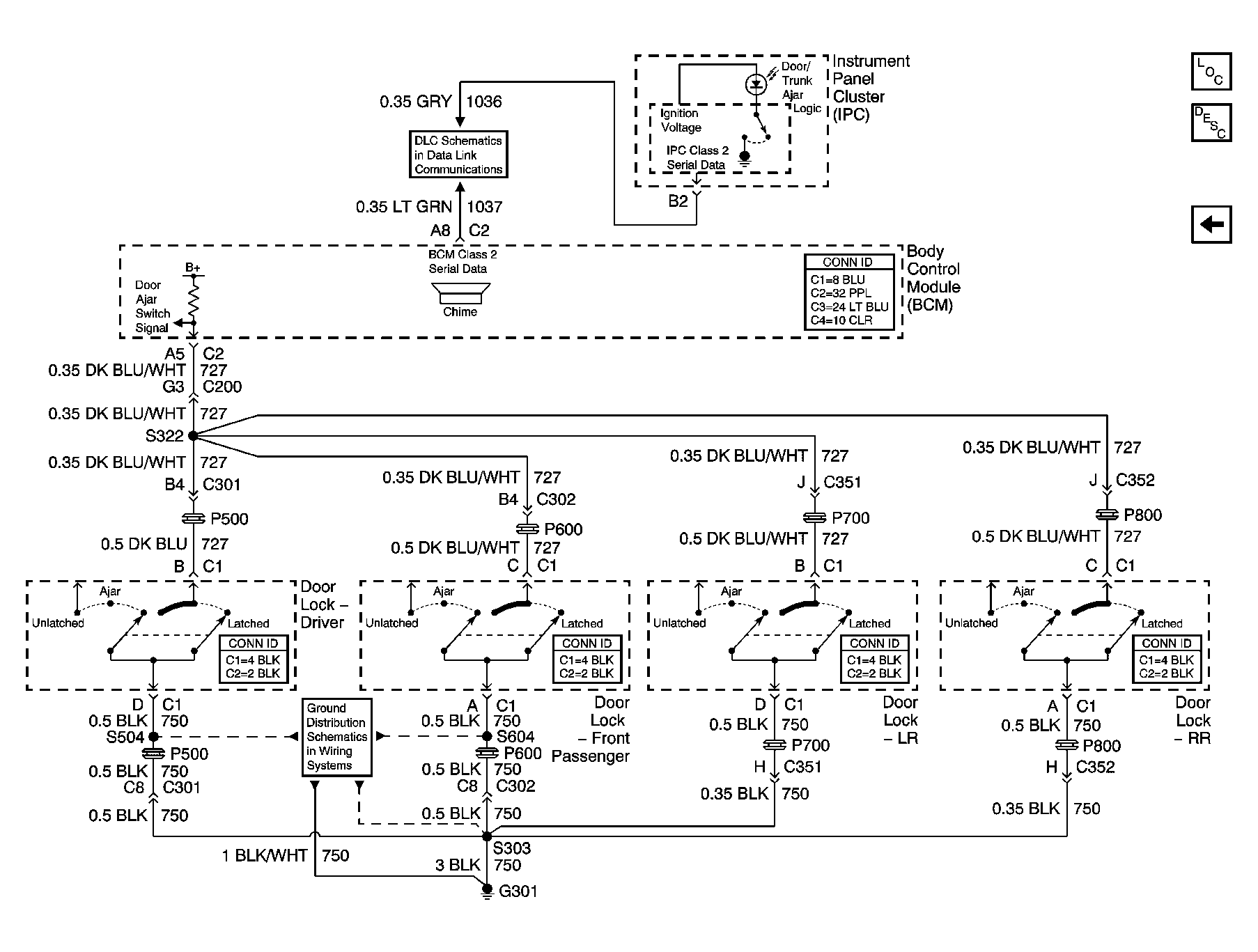

Fig 3: Door Lock/Indicator Schematics - Ajar Indicator
GM874281Courtesy of GENERAL MOTORS CORP.
