Installation Procedure

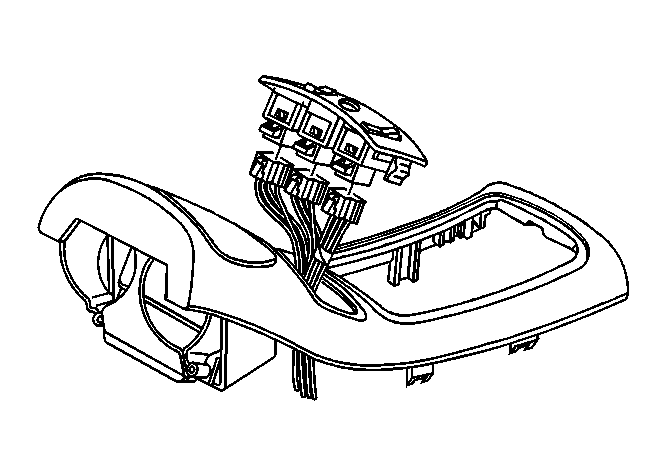

    Fig 1: Traction Control Switch & Electrical Connectors
    GM629741Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the traction control switch.
  2. Connect the electrical connectors to the heater seat switches.
  3. Position the traction control/heated seat switch to the front floor console trim plate.
  4. Install the traction control/heated seat switch into the console trim plate pressing in until the retainers are fully seated.
