Wiper/Washer System Component Views

Fig 1: Right Front Of The Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Wiring Harness
2	Windshield Washer Fluid Level Switch
3	Windshield Washer Pump

Fig 2: Base Of Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

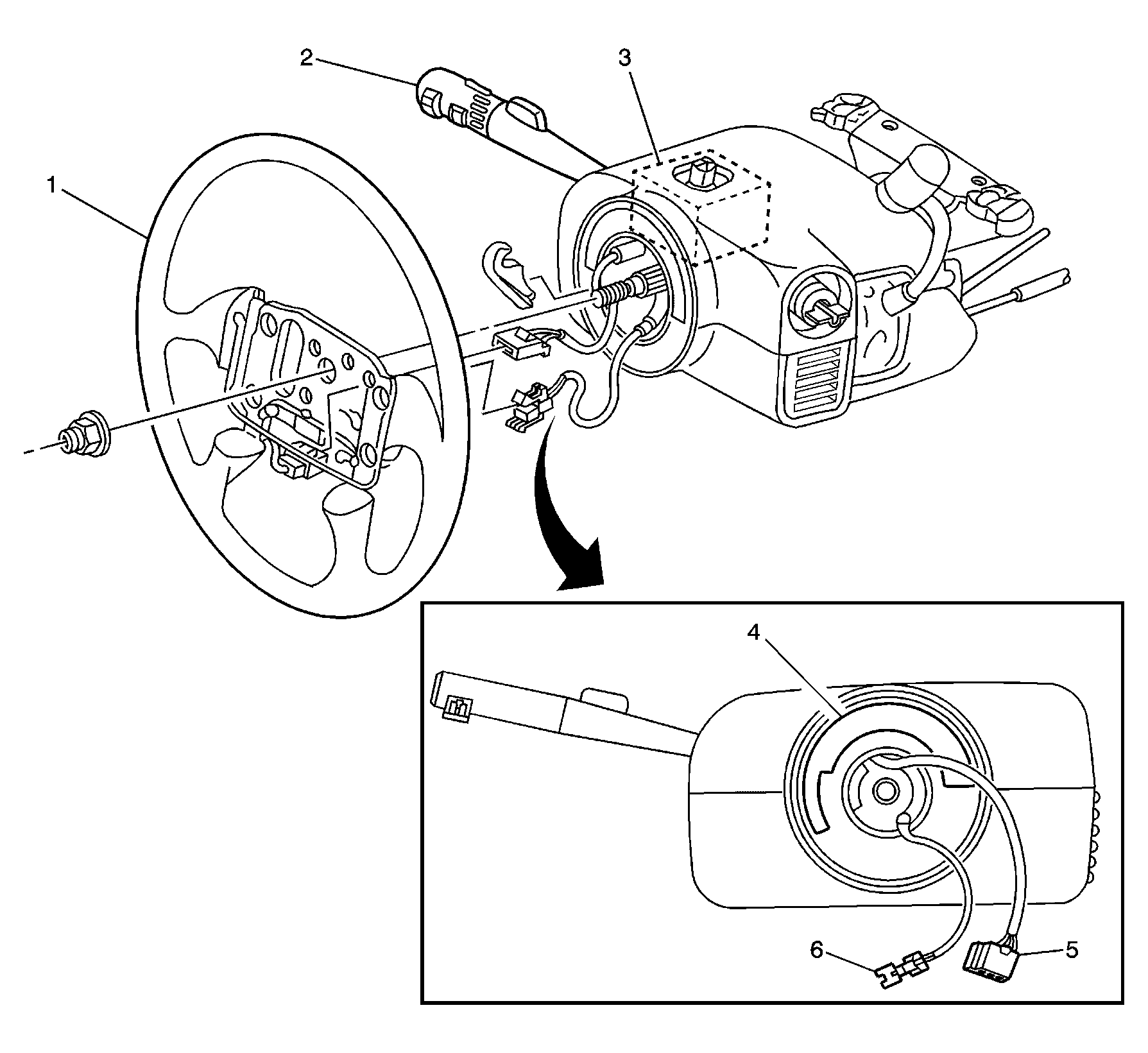

Fig 3: Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Cruise Control On/Off Switch (K34)
3	Turn Signal/Multifunction Switch
4	Inflatable Restraint Steering Wheel Module Coil
5	C203 (UK3)
6	Inflatable Restraint Steering Wheel Module Connector
