Installation Procedure

    Fig 1: Oil Level Sensor Electrical Connector
    GM54406Courtesy of GENERAL MOTORS CORP.
  1. Install the engine oil level sensor to the oil pan.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine oil level sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the engine oil level sensor electrical connector.

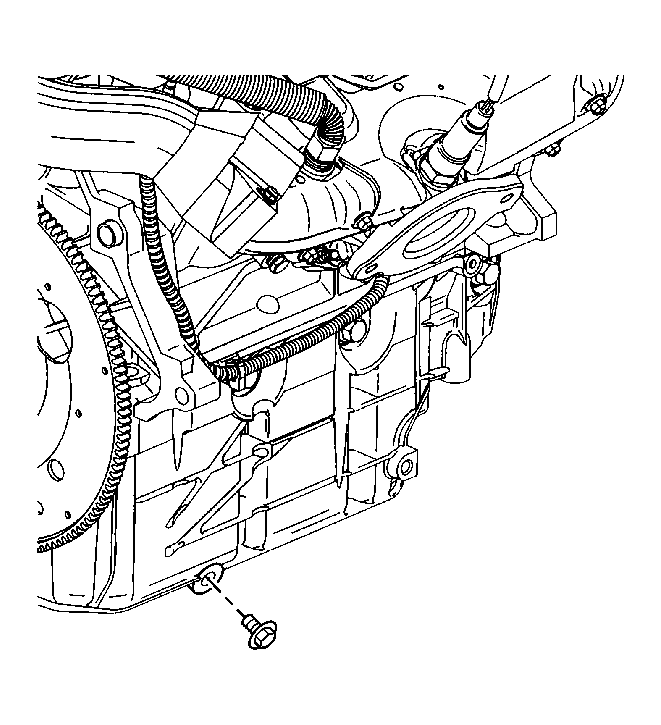

    4. Fig 2: View Of Engine Oil Drain Plug
    GM190542Courtesy of GENERAL MOTORS CORP.
  4. Install the engine oil pan drain plug.

    Tighten:  Tighten the plug to 30 N.m (22 lb ft).

  5. Lower the vehicle.
  6. Fill the crankcase with engine oil. Refer to Engine Oil and Oil Filter Replacement .
