PCM 80-Way Clear Connector C2 Details

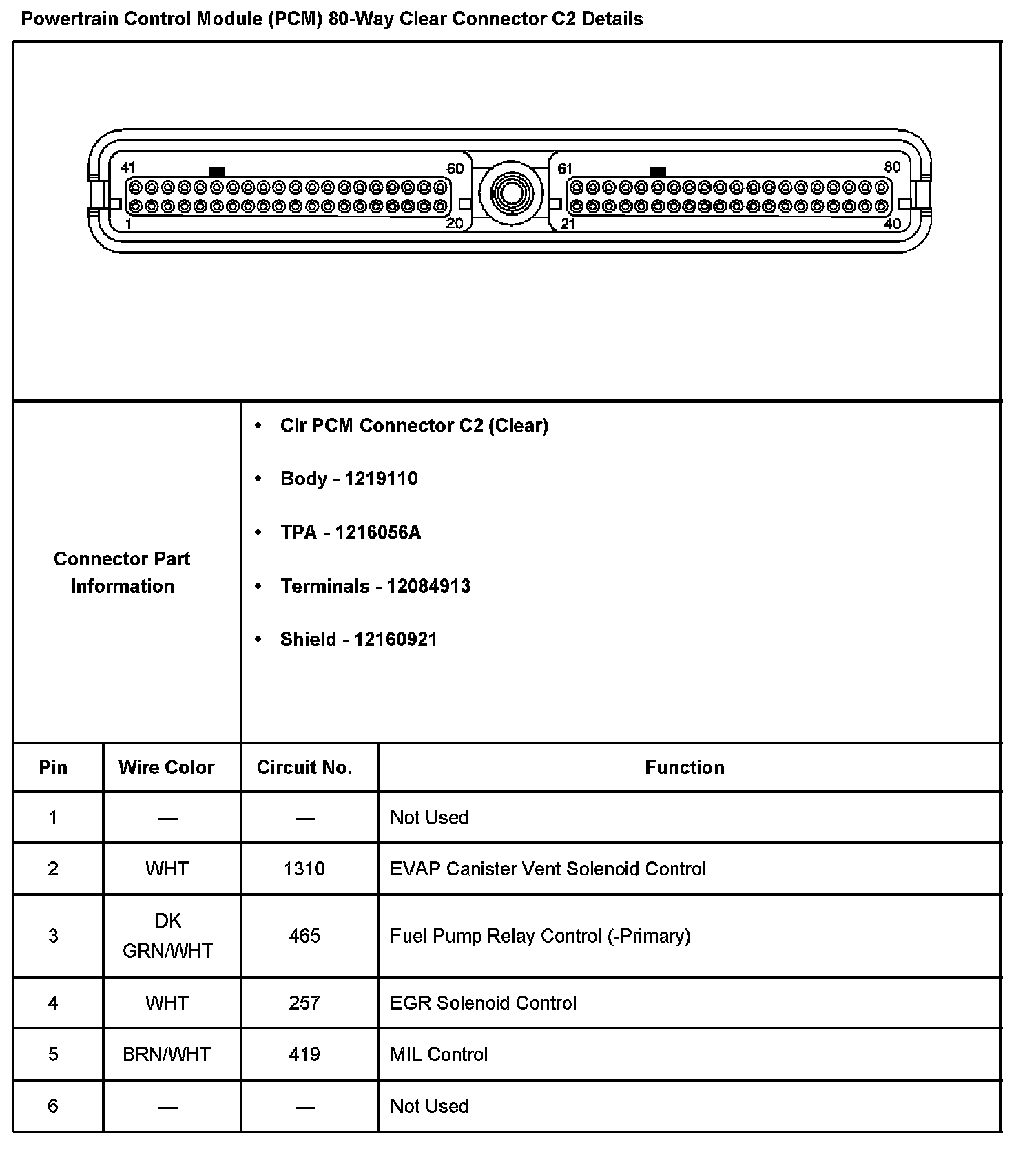

PCM 80-Way Clear Connector C2 Details Part 1:

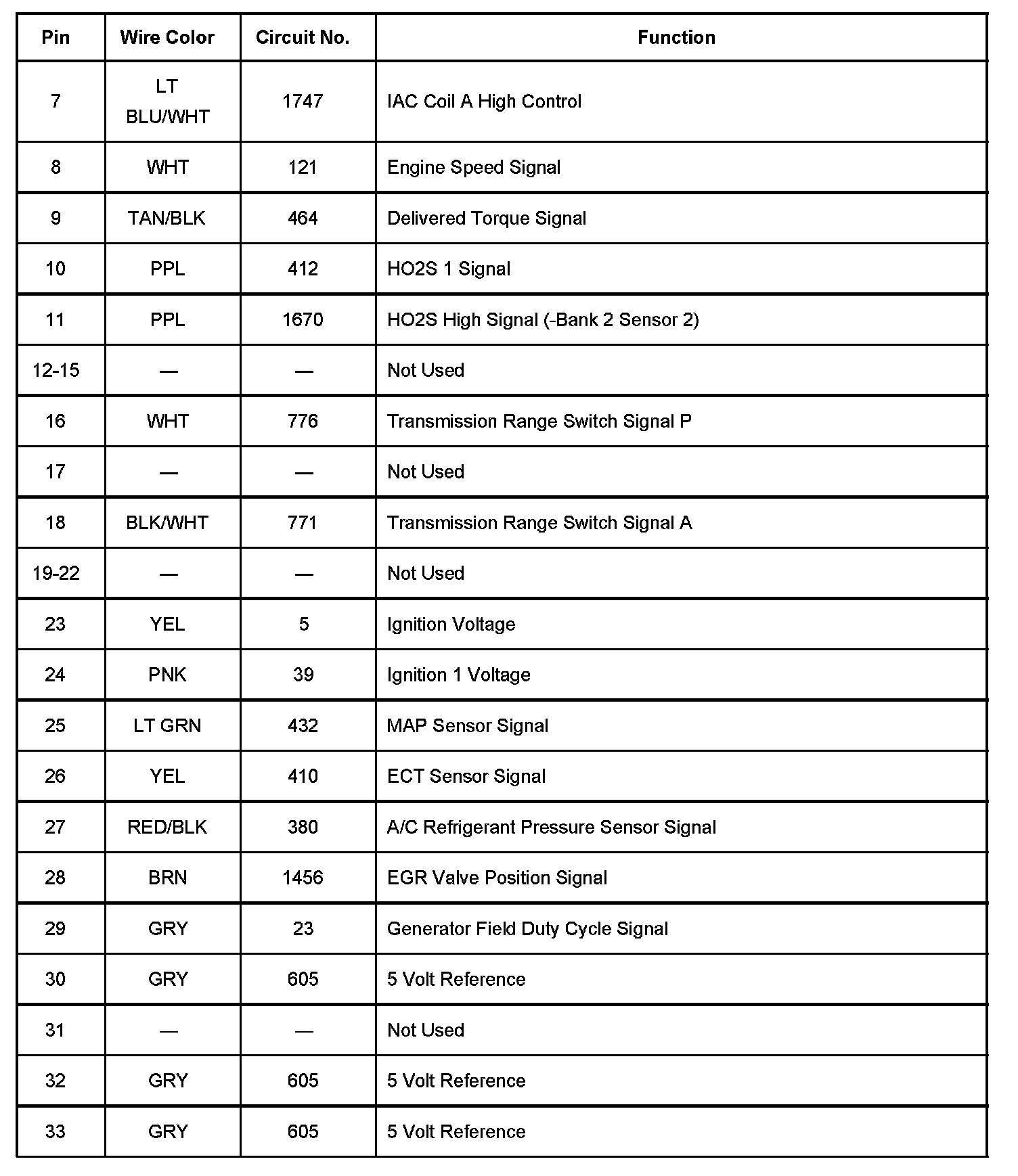

PCM 80-Way Clear Connector C2 Details Part 2:

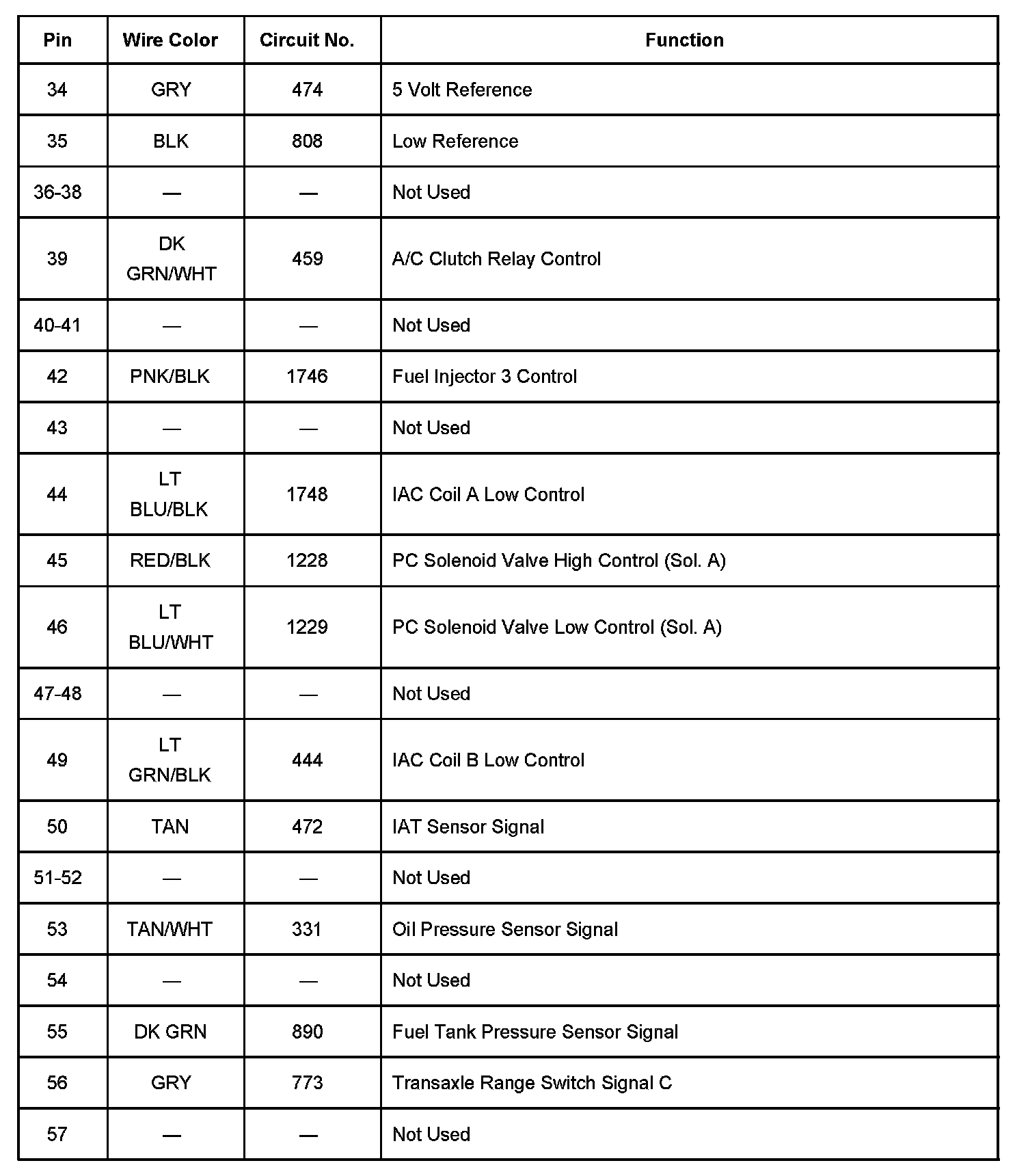

PCM 80-Way Clear Connector C2 Details Part 3:



PCM 80-Way Clear Connector C2 Details Part 4:
