Thread Repair Specifications
>>
Cylinder Head - Top View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

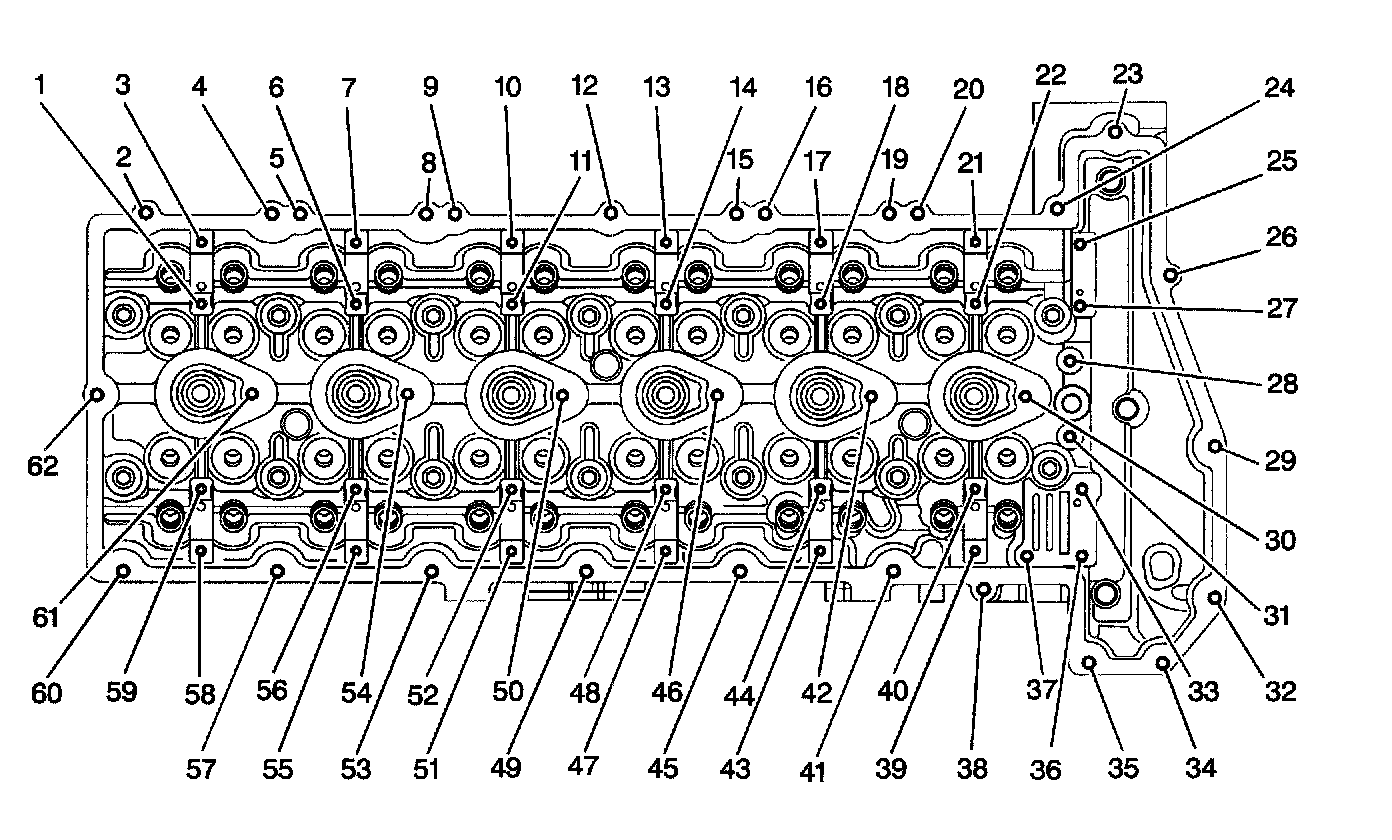

Cylinder Head - Top View
Cylinder Head - Top View

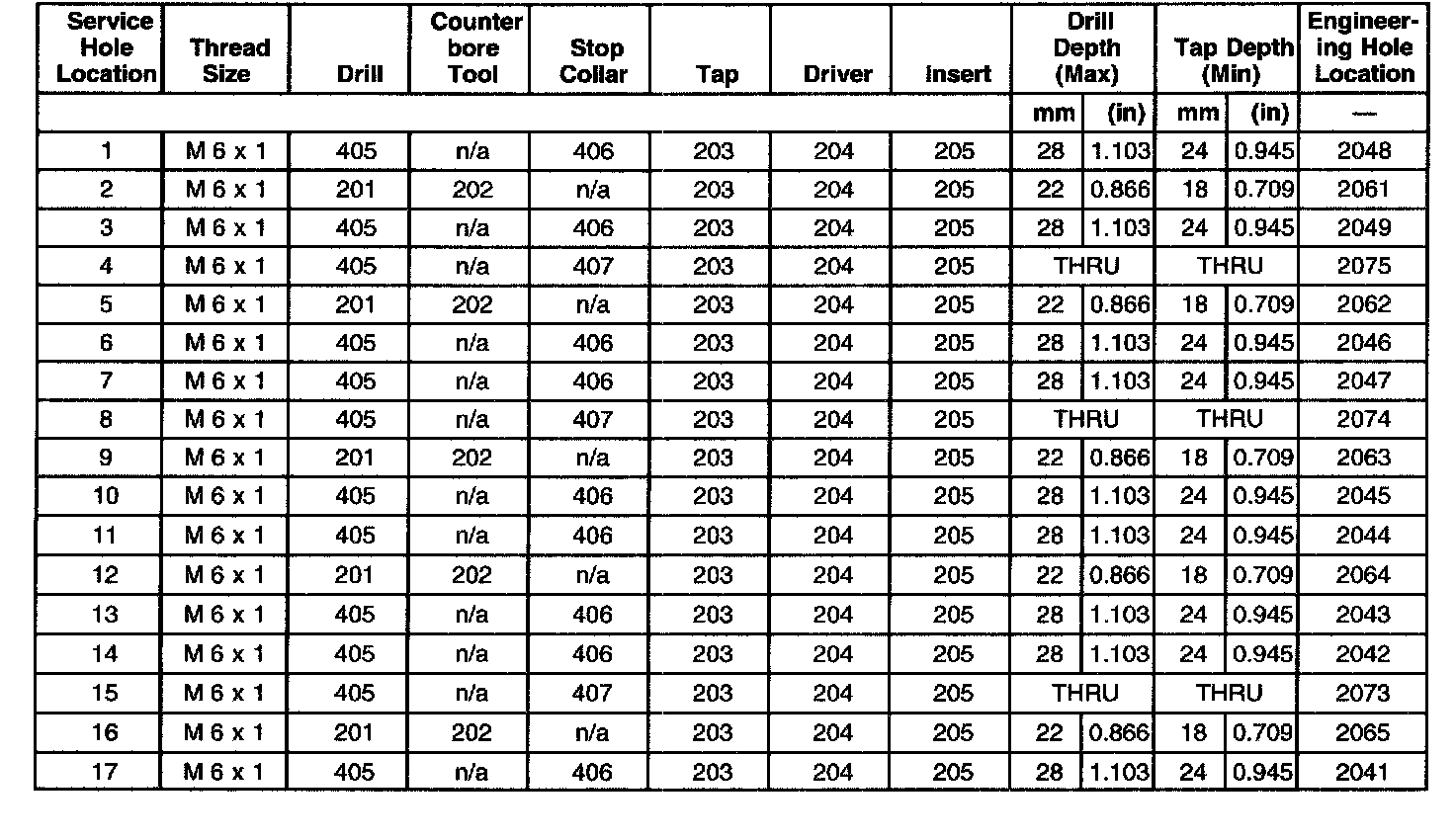

Part 1 of 3

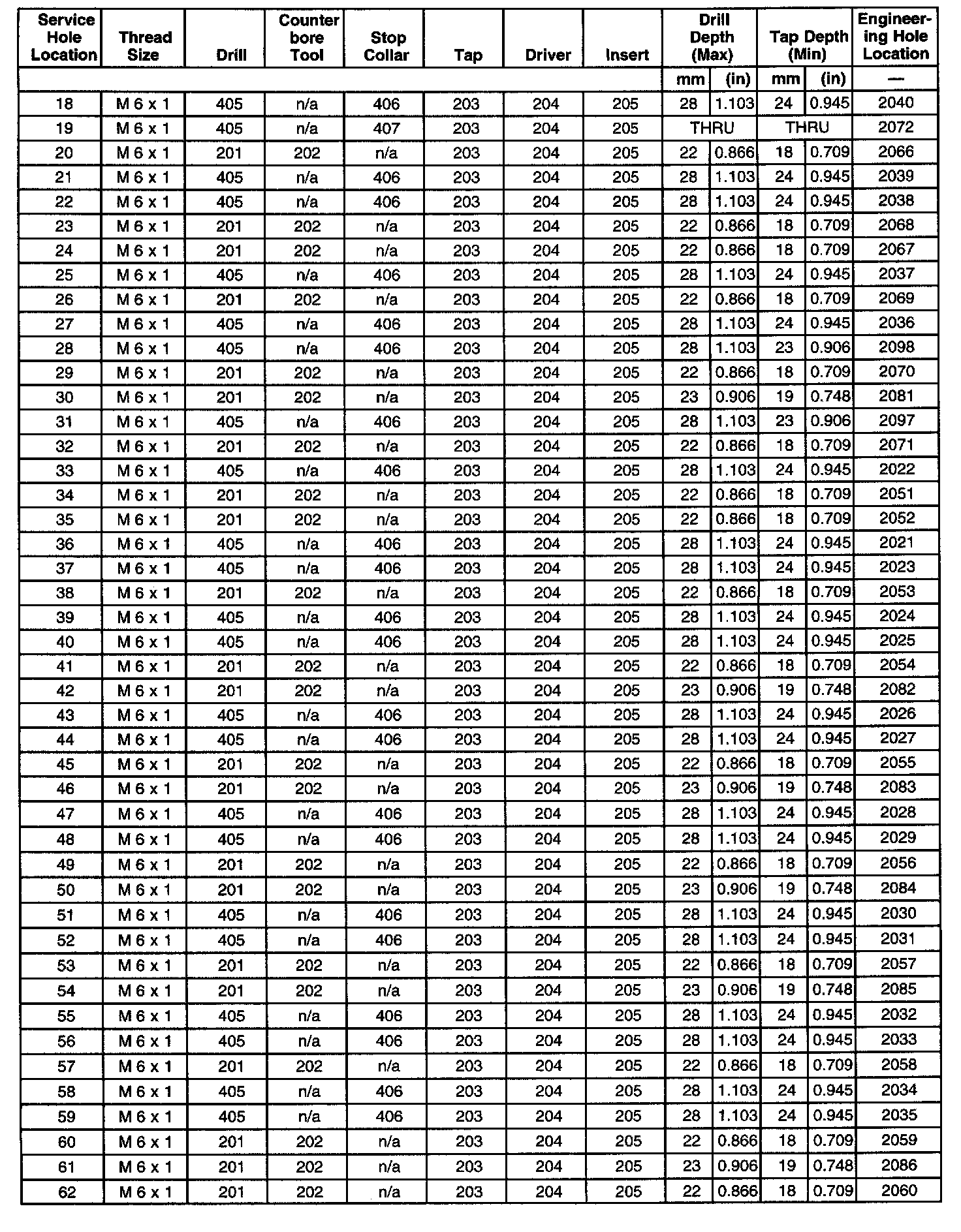

Part 2 of 3
Part 3 of 3
