HVAC System - Automatic

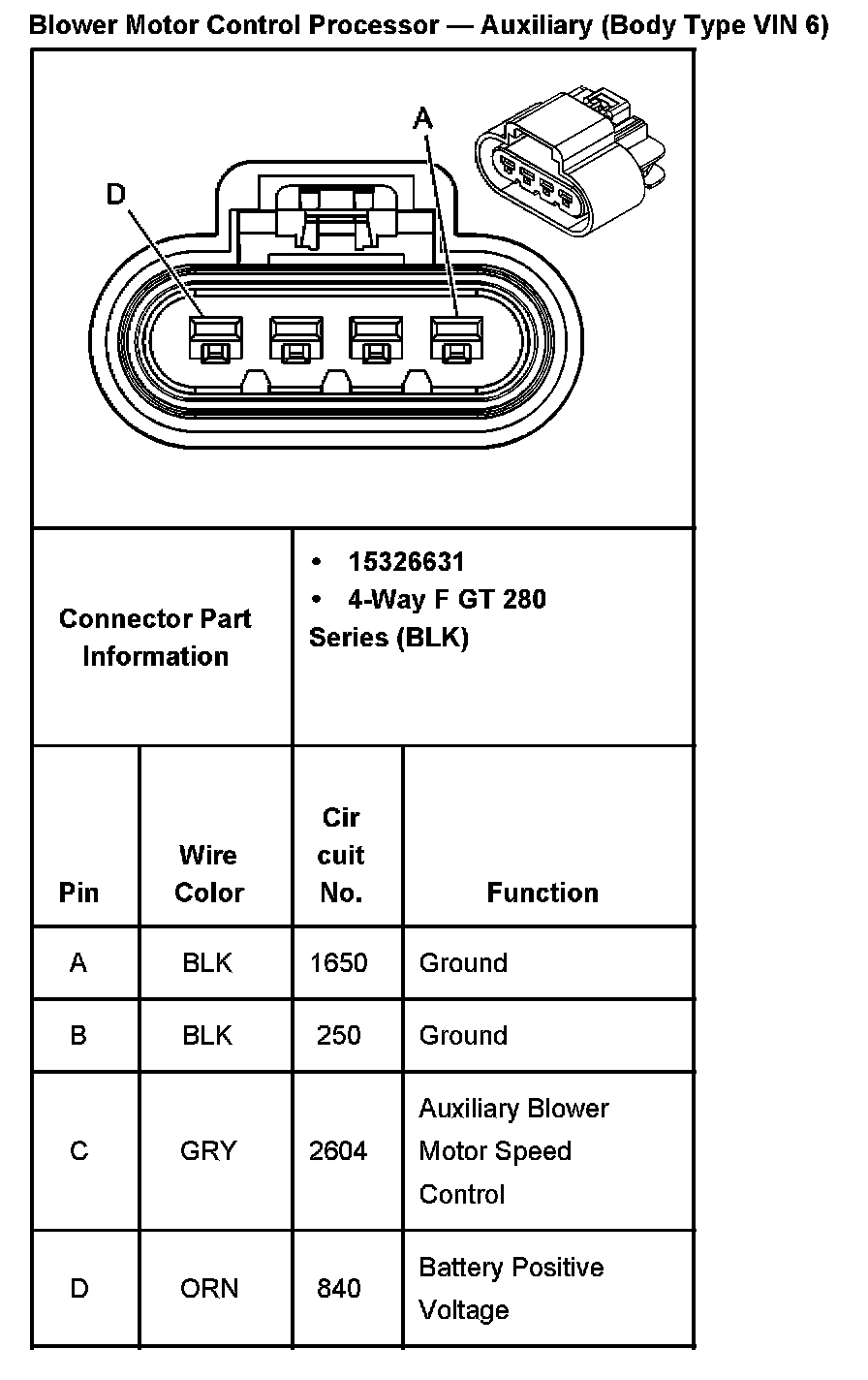

Blower Motor Control Processor-Auxiliary (Body Type VIN 6):

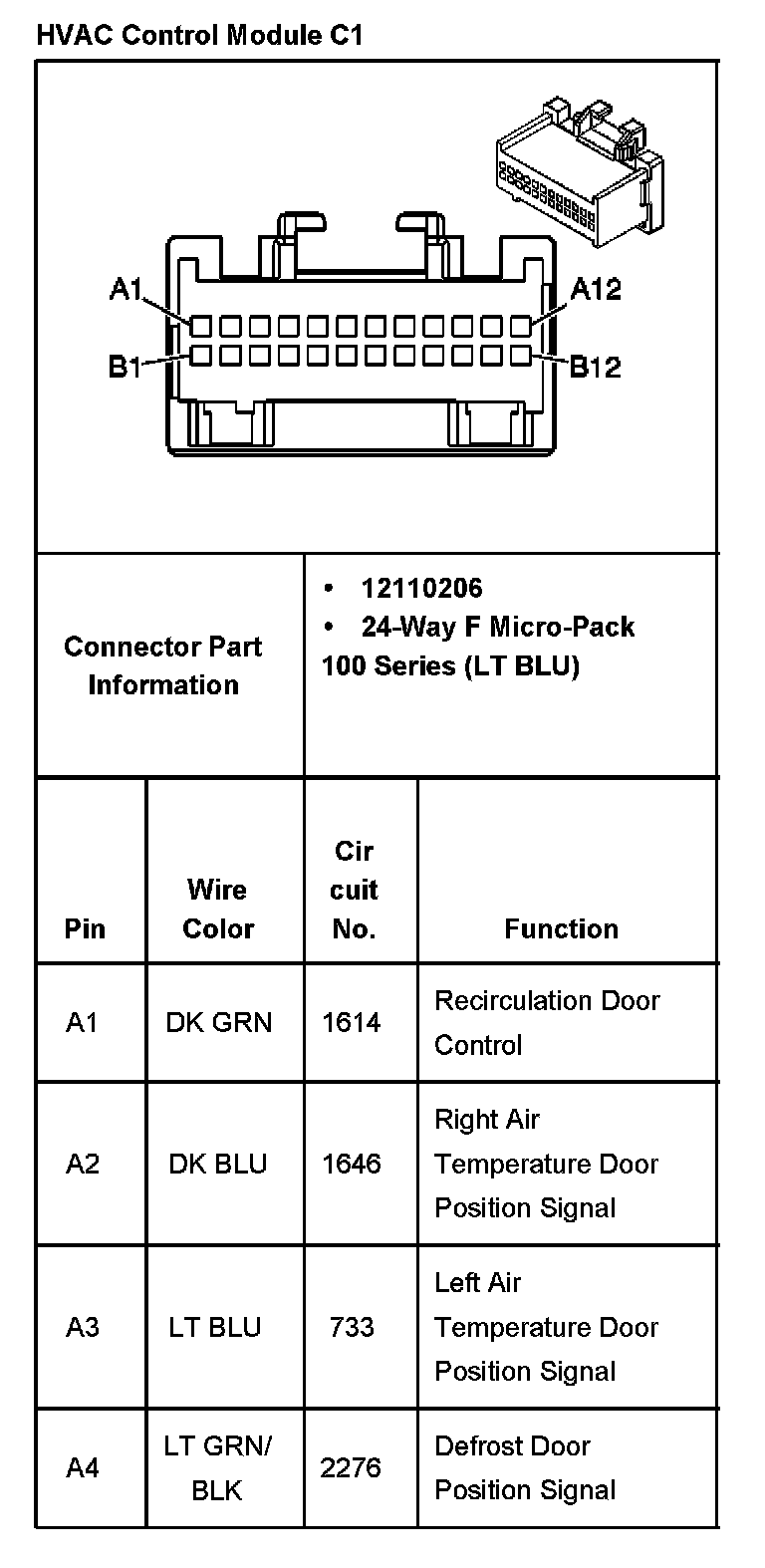

HVAC Control Module C1 Part 1:

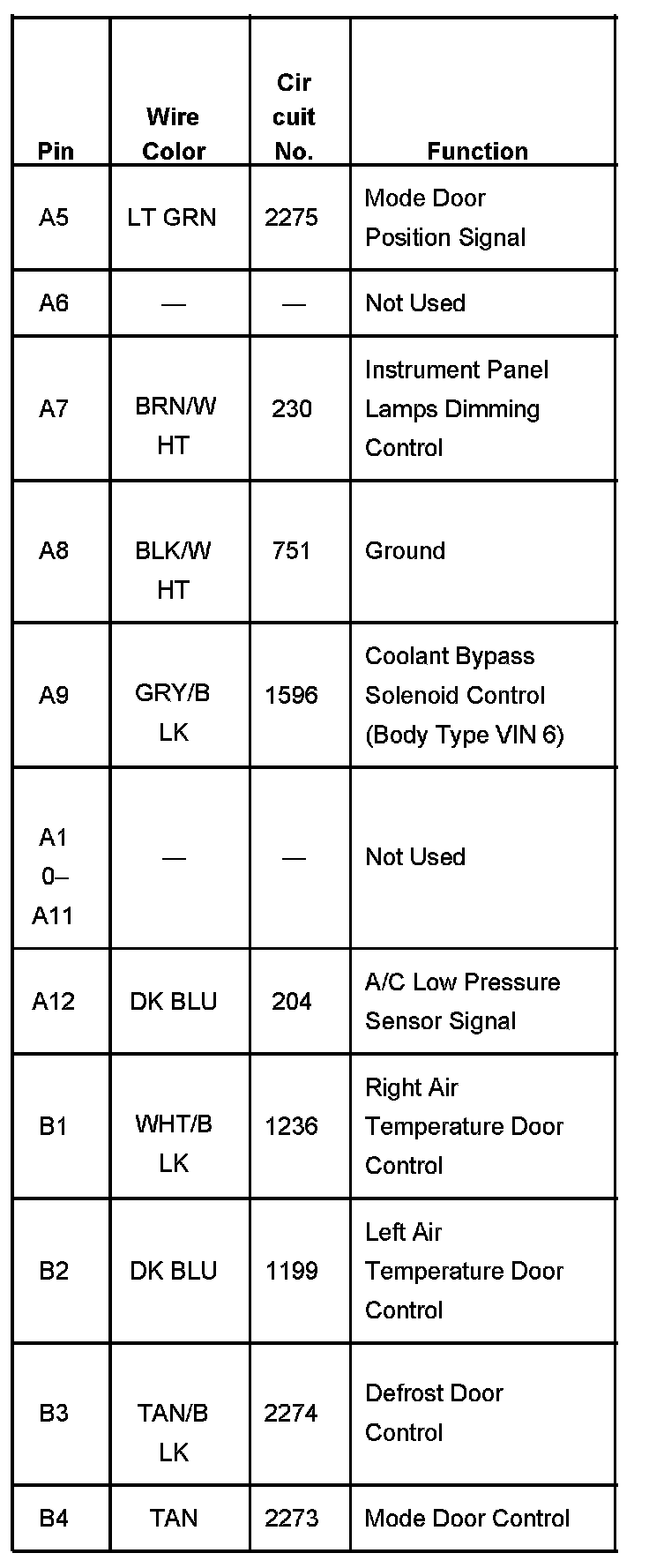

HVAC Control Module C1 Part 2:

HVAC Control Module C1 Part 3:

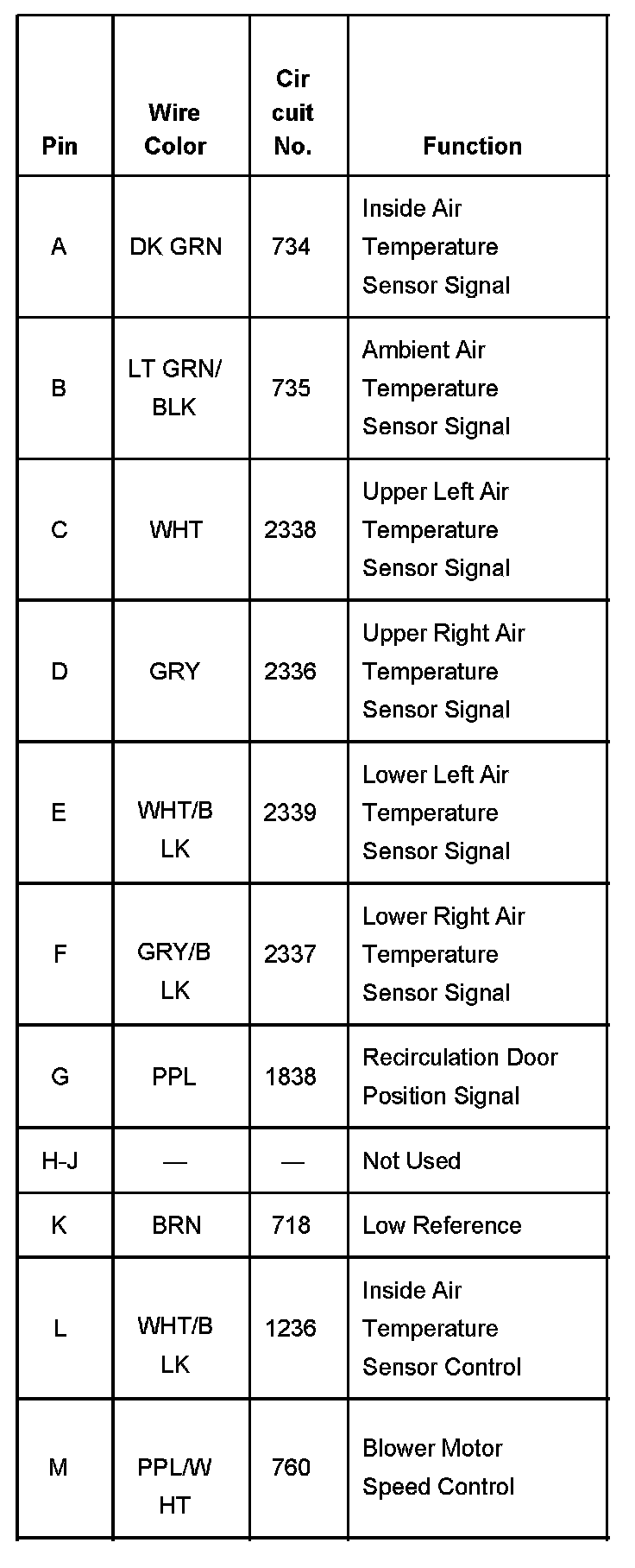

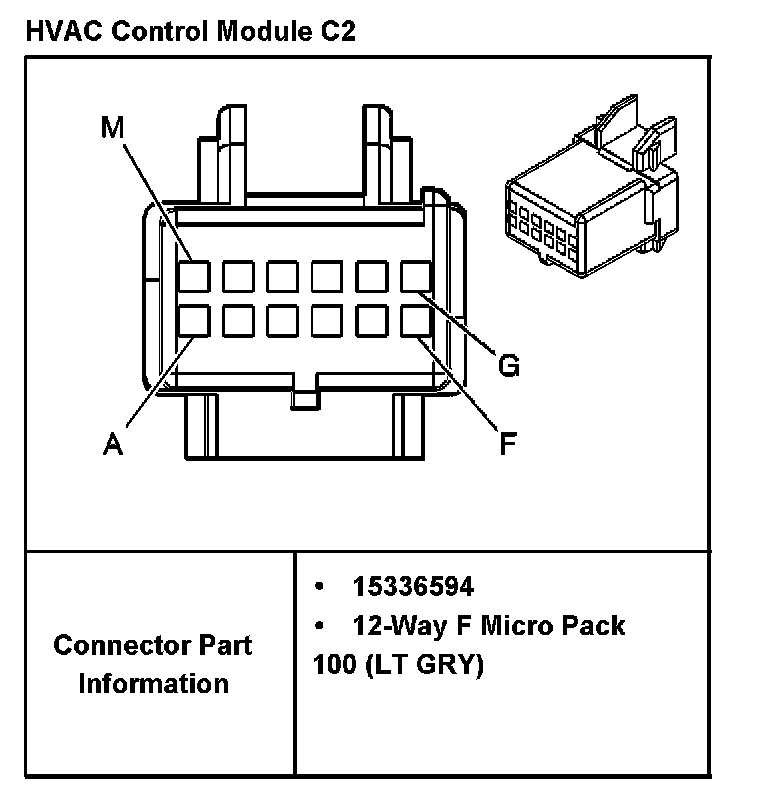

HVAC Control Module C2 Part 1:

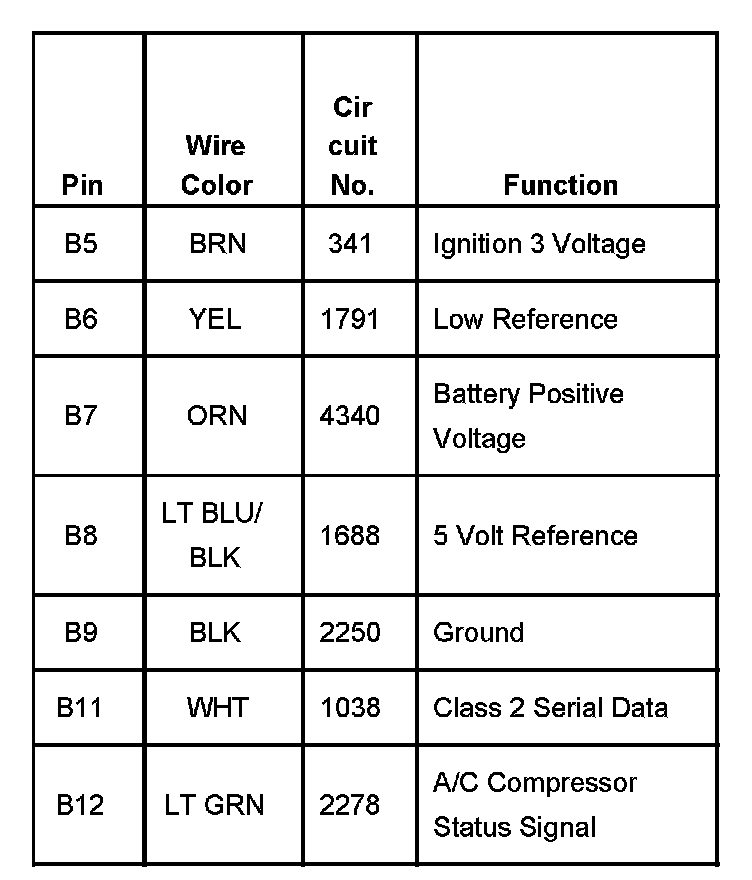

HVAC Control Module C2 Part 2:

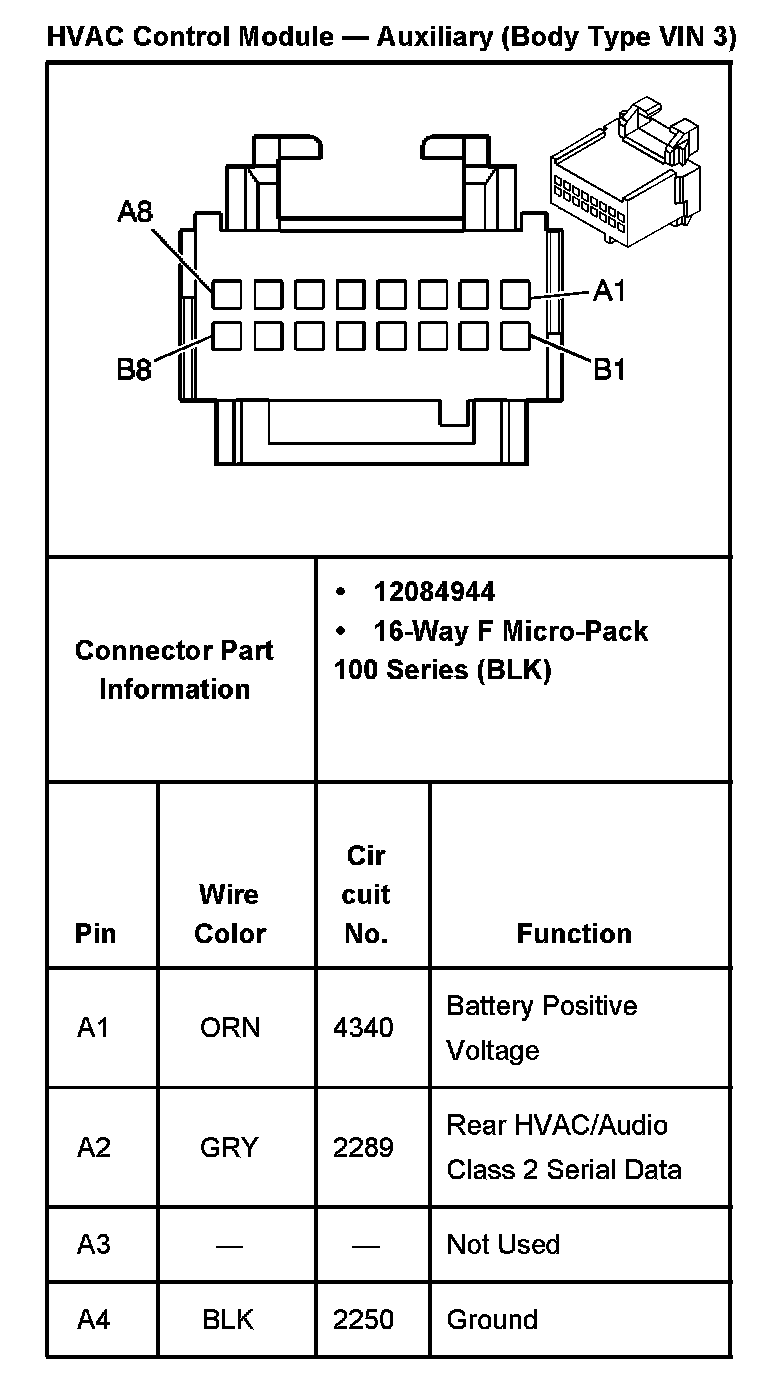

HVAC Control Module-Auxiliary (Body Type VIN 3) Part 1:

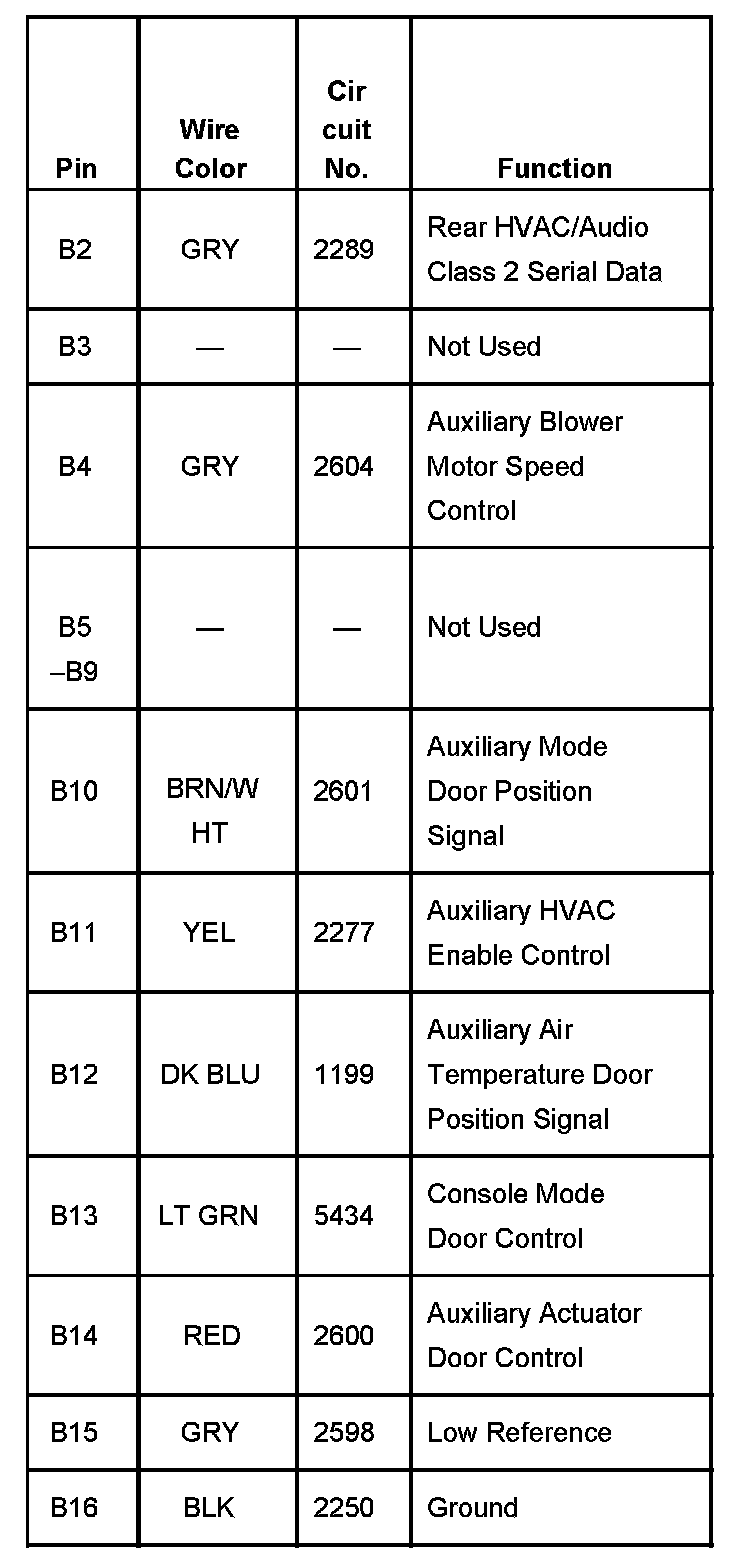

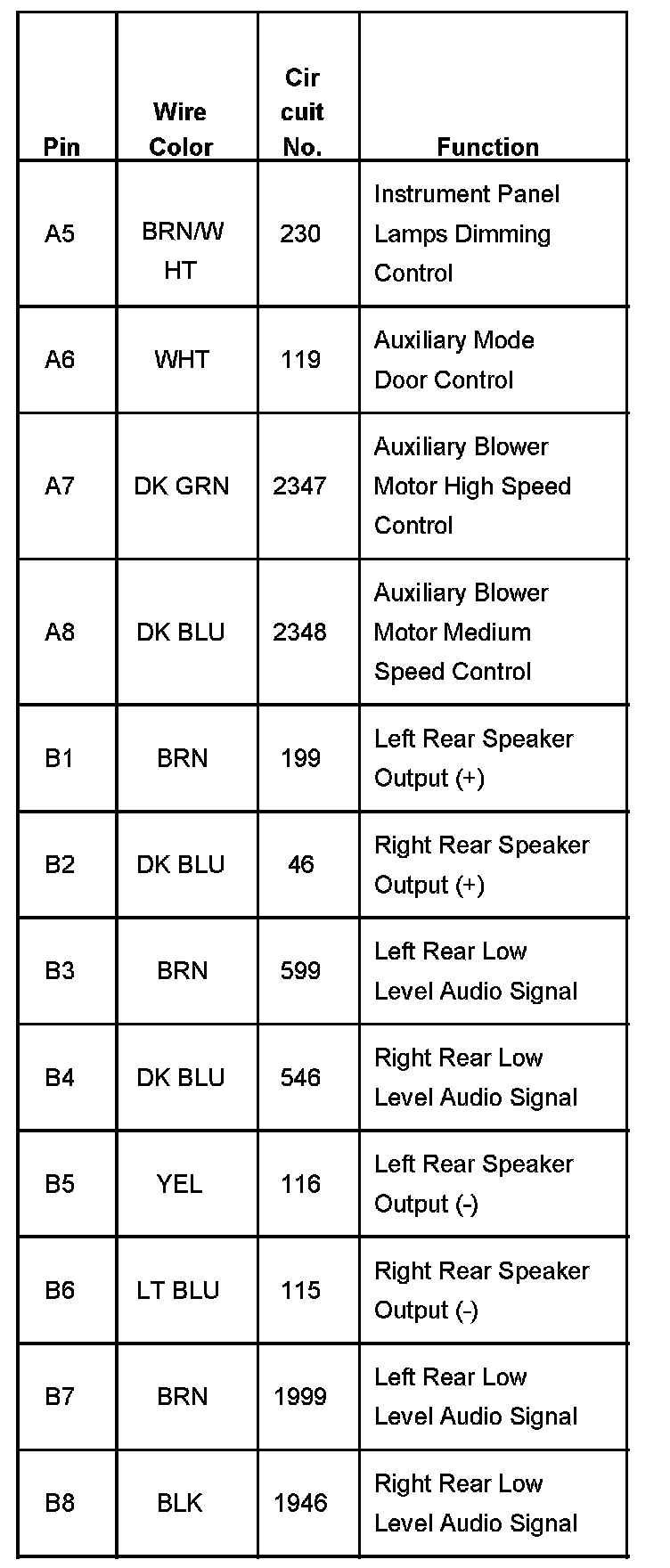

HVAC Control Module-Auxiliary (Body Type VIN 3) Part 2:

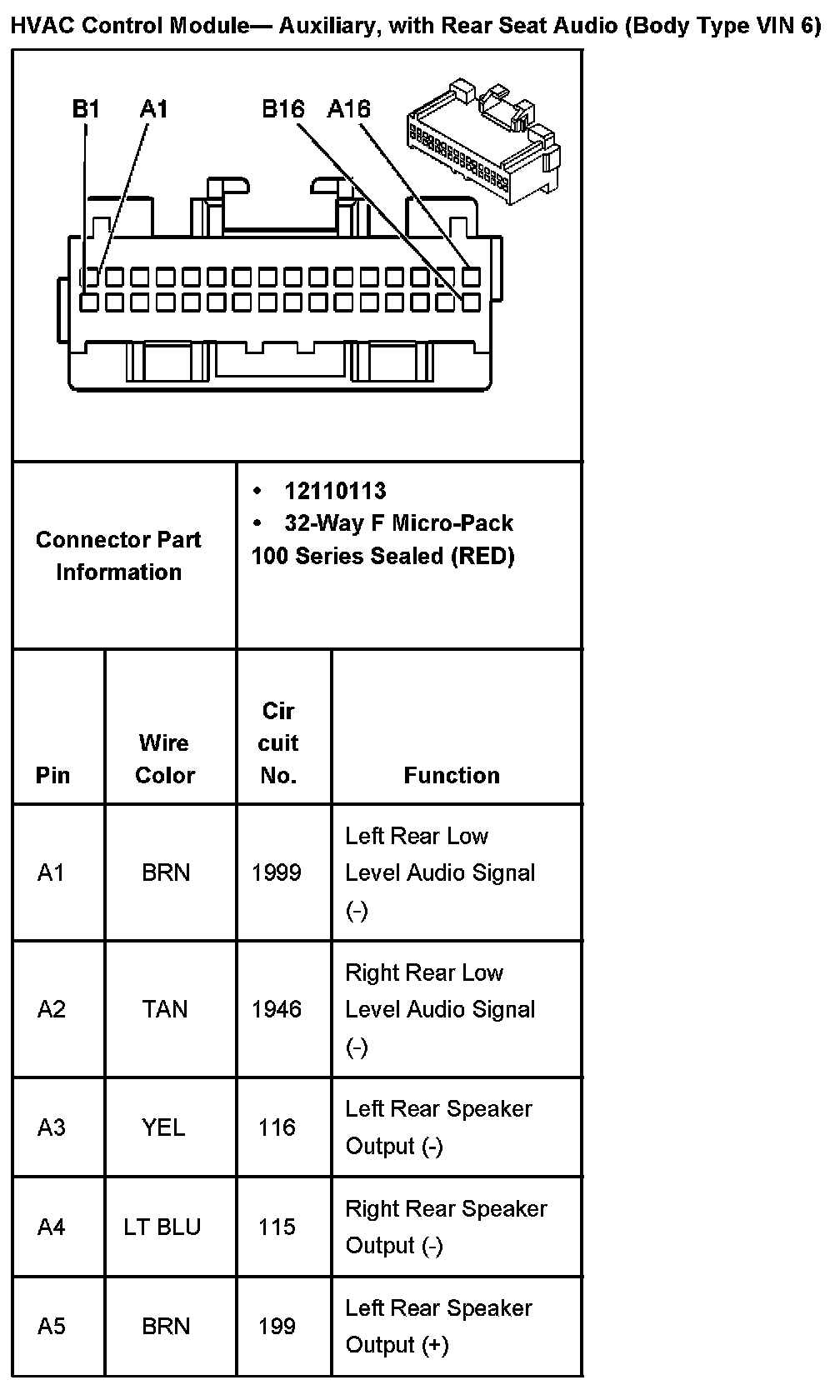

HVAC Control Module-Auxiliary, With Rear Seat Audio (Body Type VIN 6) Part 1:

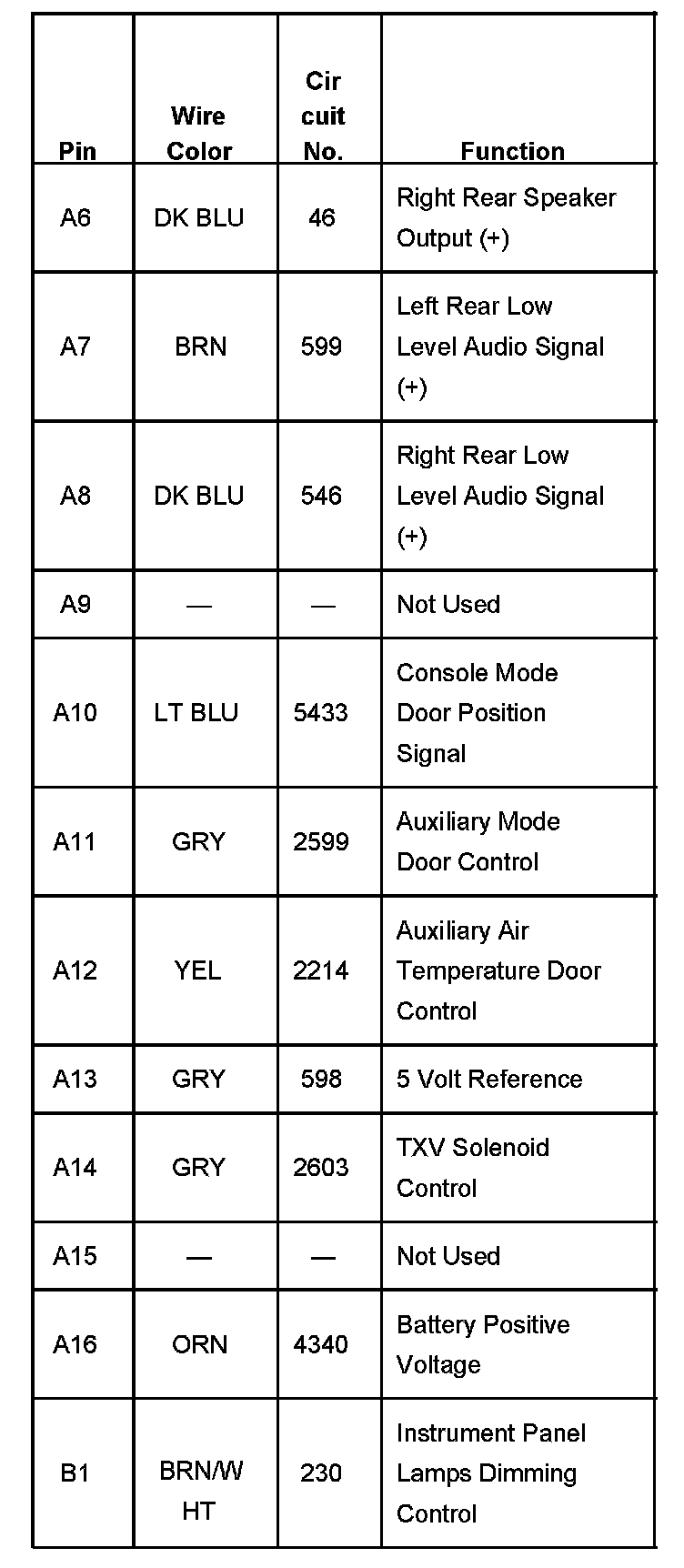

HVAC Control Module-Auxiliary, With Rear Seat Audio (Body Type VIN 6) Part 2:

HVAC Control Module-Auxiliary, With Rear Seat Audio (Body Type VIN 6) Part 3:

HVAC System - Automatic
