Disassembled Views

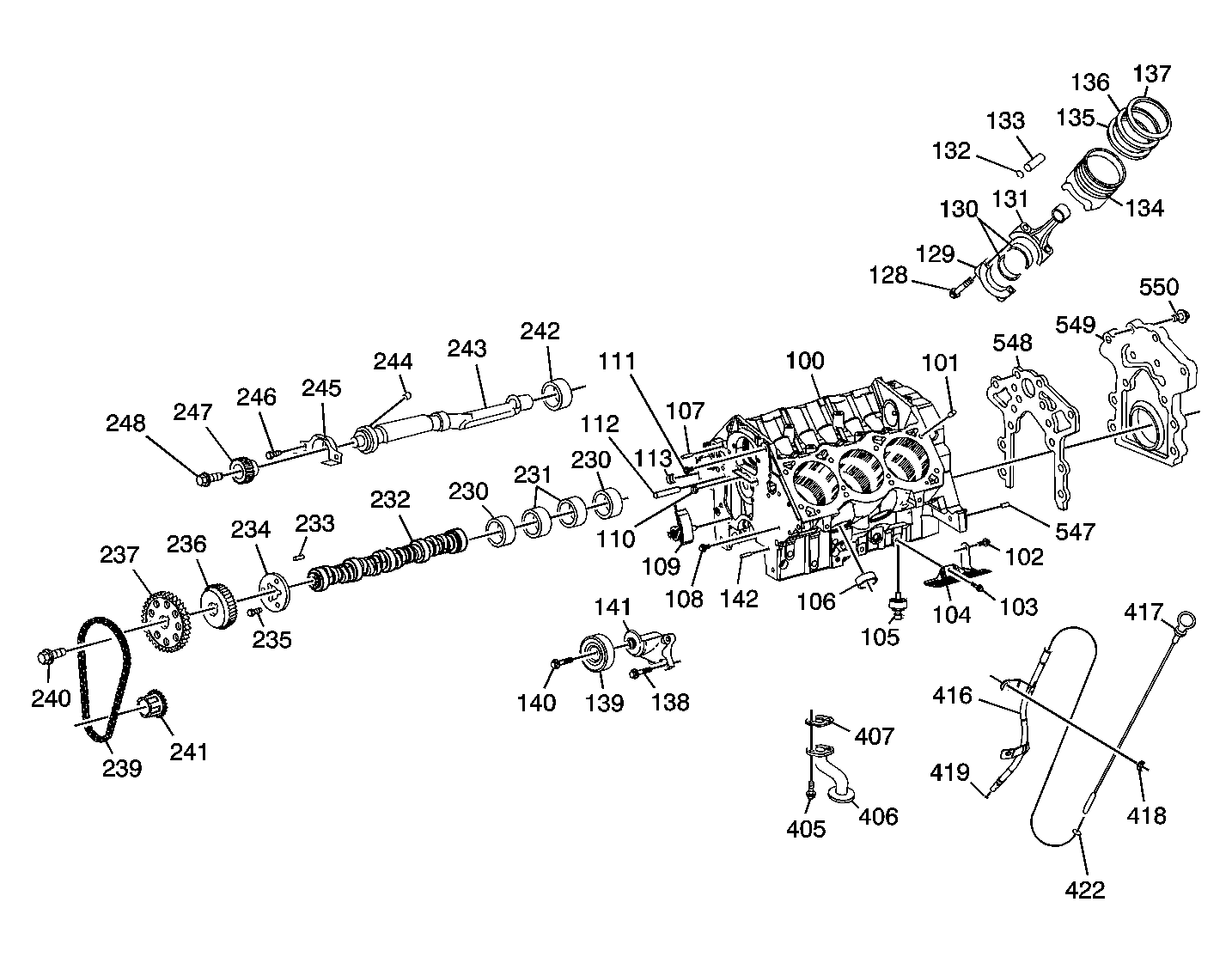

Fig 1: Engine Block And Components
GM1226860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
101 Cylinder Head Locator Pins
102 Starter Motor Heat Shield Bolt - Large
103 Starter Motor Heat Shield Bolt - Small
104 Starter Motor Heat Shield
105 Knock Sensor
106 Engine Block Expansion Plug
107 Engine Front Cover Locator Pins
108 Engine Block Coolant Drain Plug
109 Timing Chain Dampener
110 Engine Block Oil Gallery Plug - Front
111 Engine Mount Strut Access Hole Plug
112 Engine Mount Strut Bracket Stud
113 Engine Block Oil Gallery Plug - Right
128 Connecting Rod Bearing Cap Bolt
129 Connecting Rod Bearing Cap
130 Connecting Rod Bearing
131 Connecting Rod
132 Piston Pin Retainer
133 Piston Pin
134 Piston
135 Piston Oil Control Ring
136 Piston Compression Ring
137 Piston Compression Ring
138 Drive Belt Idler Pulley Bracket Bolt - Lower - Supercharger
139 Drive Belt Idler Pulley - Lower - Supercharger
140 Drive Belt Idler Pulley Bolt - Lower - Supercharger
141 Drive Belt Idler Pulley Bracket - Lower - Supercharger
142 Engine Front Cover Locator Pins - Small
230 Camshaft Bearing - 1 and 4
230 Camshaft Bearing - 1 and 4
231 Camshaft Bearing - 2 and 3
232 Camshaft
233 Camshaft Key
234 Camshaft Thrust Plate
235 Camshaft Thrust Plate Bolt
236 Balance Shaft Drive Gear
237 Camshaft Sprocket
239 Timing Chain
240 Camshaft Sprocket Bolt
241 Crankshaft Sprocket
242 Balance Shaft Rear Bushing
243 Balance Shaft
244 Balance Shaft Gear Pin
245 Balance Shaft Retainer
246 Balance Shaft Retainer Bolt
247 Balance Shaft Driven Gear
248 Balance Shaft Gear Bolt
405 Oil Pump Screen Bolt
406 Oil Pump Screen
407 Oil Pump Screen Gasket
416 Oil Level Indicator Tube
417 Oil Level Indicator
418 Oil Level Indicator Tube Nut
419 Oil Level Indicator Tube Seal
422 Oil Level Indicator Seal
547 Transmission Locator Pin
548 Crankshaft Rear Oil Seal Housing Gasket
549 Crankshaft Rear Oil Seal Housing
550 Crankshaft Rear Oil Seal Housing Bolt

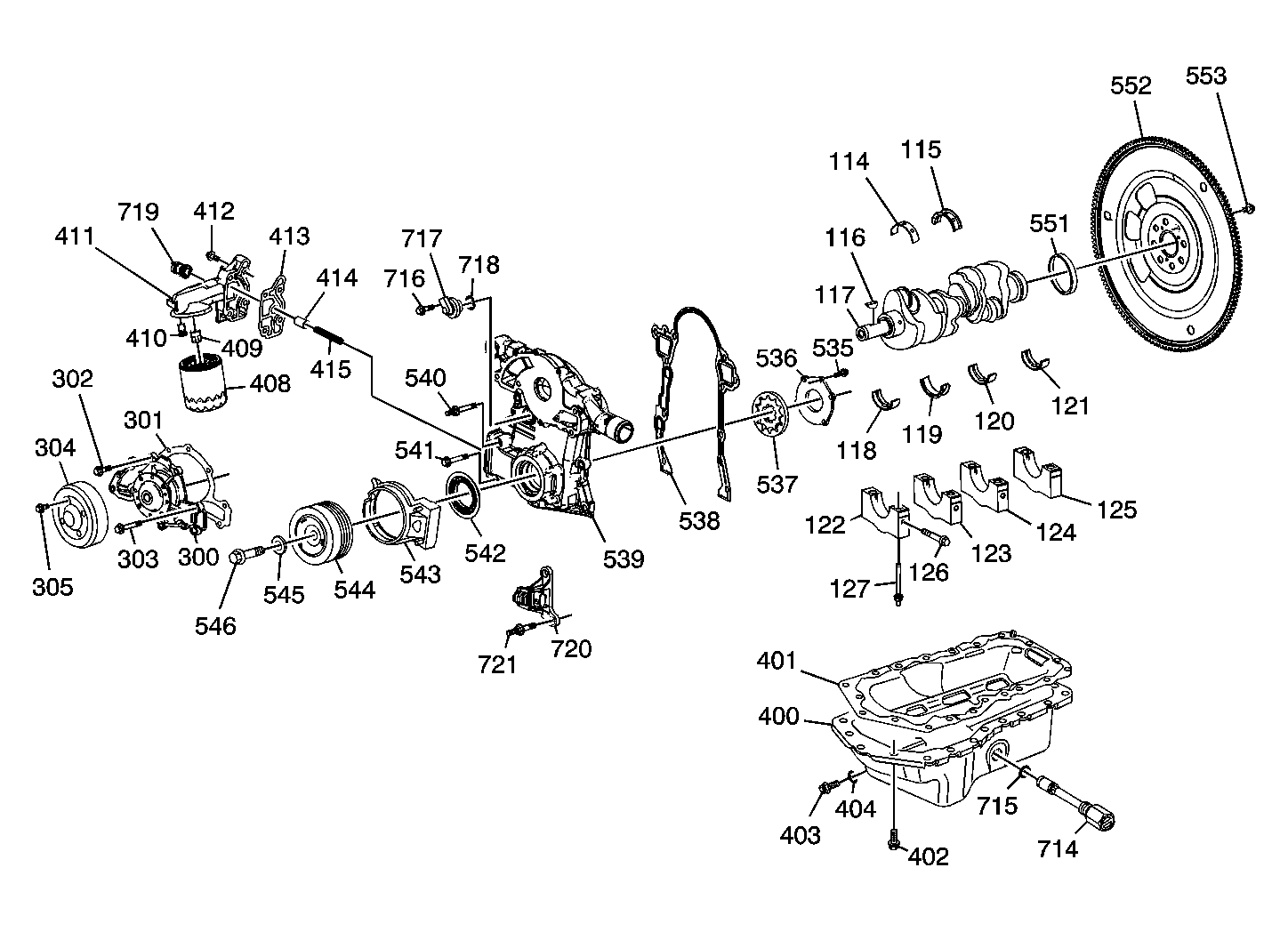

Fig 2: Crankshaft And Components
GM1210580Courtesy of GENERAL MOTORS CORP.
Callout Component Name
114 Crankshaft Main Bearing - Upper - 1, 3 & 4
115 Crankshaft Main Bearing - Upper - 2
116 Crankshaft Balancer Key
117 Crankshaft
118 Crankshaft Main Bearing - Lower - 1
119 Crankshaft Main Bearing - Lower - 2
120 Crankshaft Main Bearing - Lower - 3
121 Crankshaft Main Bearing - Lower - 4
122 Crankshaft Main Bearing Cap 1
123 Crankshaft Main Bearing Cap 2
124 Crankshaft Main Bearing Cap 3
125 Crankshaft Main Bearing Cap 4
126 Crankshaft Main Bearing Cap Bolt - Side
127 Crankshaft Main Bearing Cap Bolt
300 Water Pump
301 Water Pump Gasket
302 Water Pump Bolt - Short
303 Water Pump Bolt - Long
304 Water Pump Pulley
305 Water Pump Pulley Bolt
400 Oil Pan
401 Oil Pan Gasket
402 Oil Pan Bolt
403 Oil Pan Drain Plug
404 Oil Pan Drain Plug Seal
408 Oil Filter
409 Oil Filter Fitting
410 Oil Filter Bypass Valve
411 Oil Filter Adapter
412 Oil Filter Adapter Bolt
413 Oil Filter Adapter Gasket
414 Oil Pressure Relief Valve
415 Oil Pressure Relief Valve Spring
535 Oil Pump Cover Bolt
536 Oil Pump Cover
537 Oil Pump Gear Set
538 Engine Front Cover Gasket
539 Engine Front Cover
540 Engine Front Cover Stud
541 Engine Front Cover Bolt
542 Crankshaft Front Oil Seal
543 Crankshaft Position Sensor Shield
544 Crankshaft Balancer Key
545 Crankshaft Balancer Washer
546 Crankshaft Balancer Bolt
551 Crankshaft Rear Oil Seal
552 Flywheel
553 Flywheel Bolt
714 Oil Level Indicator Switch
715 Oil Level Indicator Switch Seal
716 Camshaft Position Sensor Bolt
717 Camshaft Position Sensor
718 Camshaft Position Sensor Seal
719 Engine Oil Pressure Indicator Sensor
720 Crankshaft Position Sensor
721 Crankshaft Position Sensor Stud

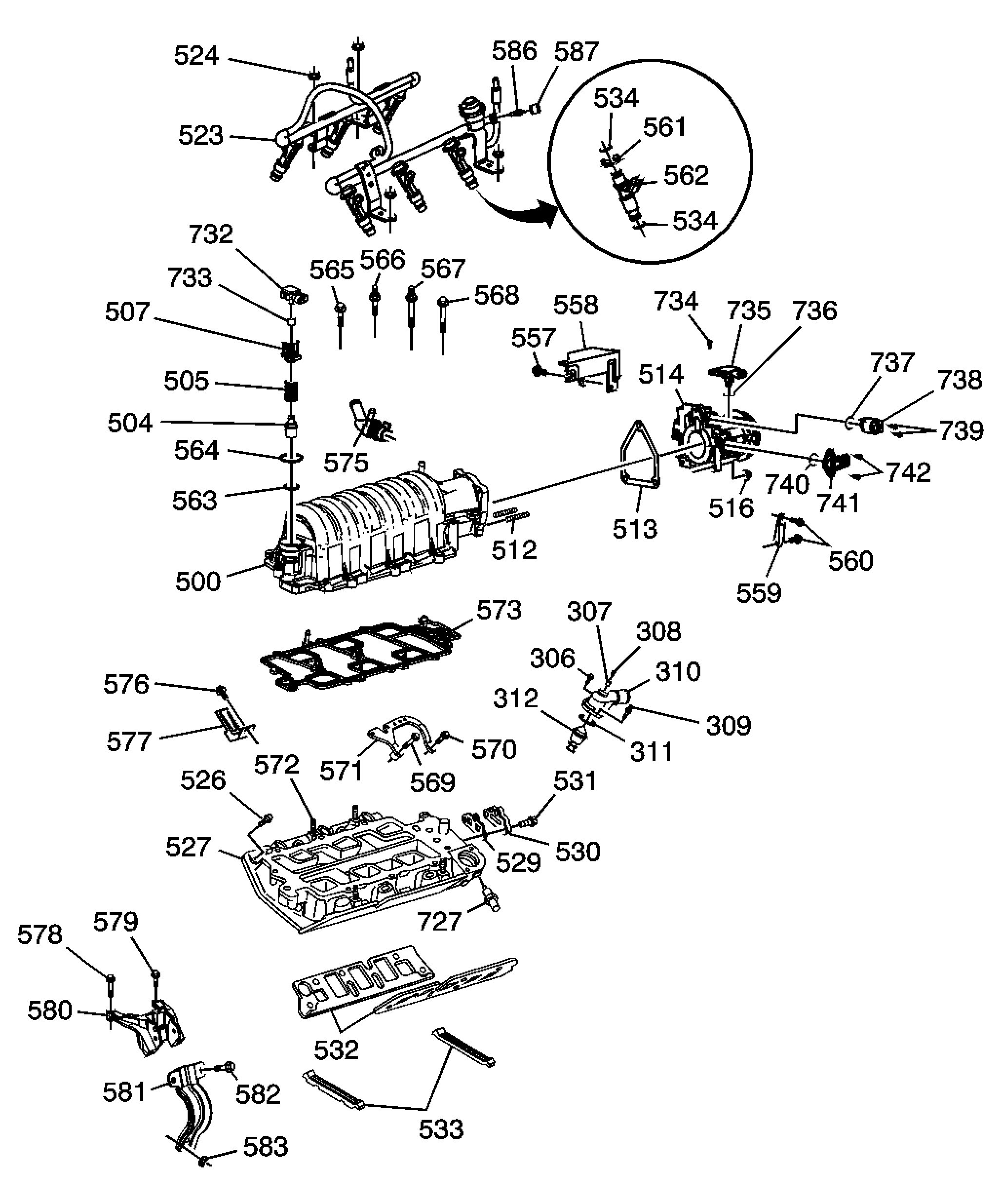

Fig 3: Intake Manifold And Components
GM1226863Courtesy of GENERAL MOTORS CORP.
Callout Component Name
306 Water Outlet Housing Bolt
307 Coolant Bleed Valve Fitting
308 Coolant Bleed Valve
309 Water Outlet Housing Stud
310 Water Outlet Housing
311 Thermostat Seal
312 Thermostat
500 Intake Manifold - Upper
504 PCV Valve
505 PCV Valve Spring
507 PCV Valve Retainer
512 Throttle Body Stud
513 Throttle Body Gasket
514 Throttle Body
516 Throttle Body Nut
523 Fuel Rail
524 Fuel Rail Nut
526 Intake Manifold Bolt
527 Intake Manifold - Lower
529 Engine Coolant Manifold Gasket
530 Engine Coolant Manifold
531 Engine Coolant Manifold Bolt
532 Intake Manifold Gasket - Lower
533 Intake Manifold Seal - Lower
534 Fuel Injector Seal
534 Fuel Injector Seal
557 Throttle Cable Bracket Bolt
558 Throttle Cable Bracket
559 Throttle Body Support Bracket
560 Throttle Body Support Bracket Bolt
561 Fuel Injector Retaining Clip
562 Fuel Injector
563 PCV Valve Seal - Small
564 PCV Valve Seal - Large
565 Intake Manifold Bolt - Upper - Short
566 Intake Manifold Stud - Upper - Short
567 Intake Manifold Stud - Upper - Long
568 Intake Manifold Bolt - Upper - Long
569 Generator Brace Bracket Bolt - Long
570 Generator Brace Bracket Bolt - Short
571 Generator Brace Bracket
572 Intake Manifold Stud - Lower
573 Intake Manifold Gasket - Upper
575 Vacuum Manifold
576 EVAP Purge Valve Bracket Bolt
577 EVAP Purge Valve Bracket
578 Engine Mounting Strut Bracket Bolt - Upper - Long
579 Engine Mounting Strut Bracket Bolt - Upper - Short
580 Engine Mounting Strut Bracket - Upper
581 Engine Mounting Strut Bracket - Lower
582 Engine Mounting Strut Bracket Bolt - Lower
583 Engine Mounting Strut Bracket Nut - Lower
586 Fuel Schrader Valve
587 Fuel Service Port
727 Engine Coolant Temperature Sensor
732 MAP Sensor
733 MAP Sensor Seal
734 MAF Sensor Bolt
735 MAF Sensor
736 MAF Sensor Seal
737 IAC Sensor Seal
738 IAC Sensor
739 IAC Sensor Bolt
740 TPS Sensor Seal
741 TPS Sensor
742 TPS Sensor Bolt

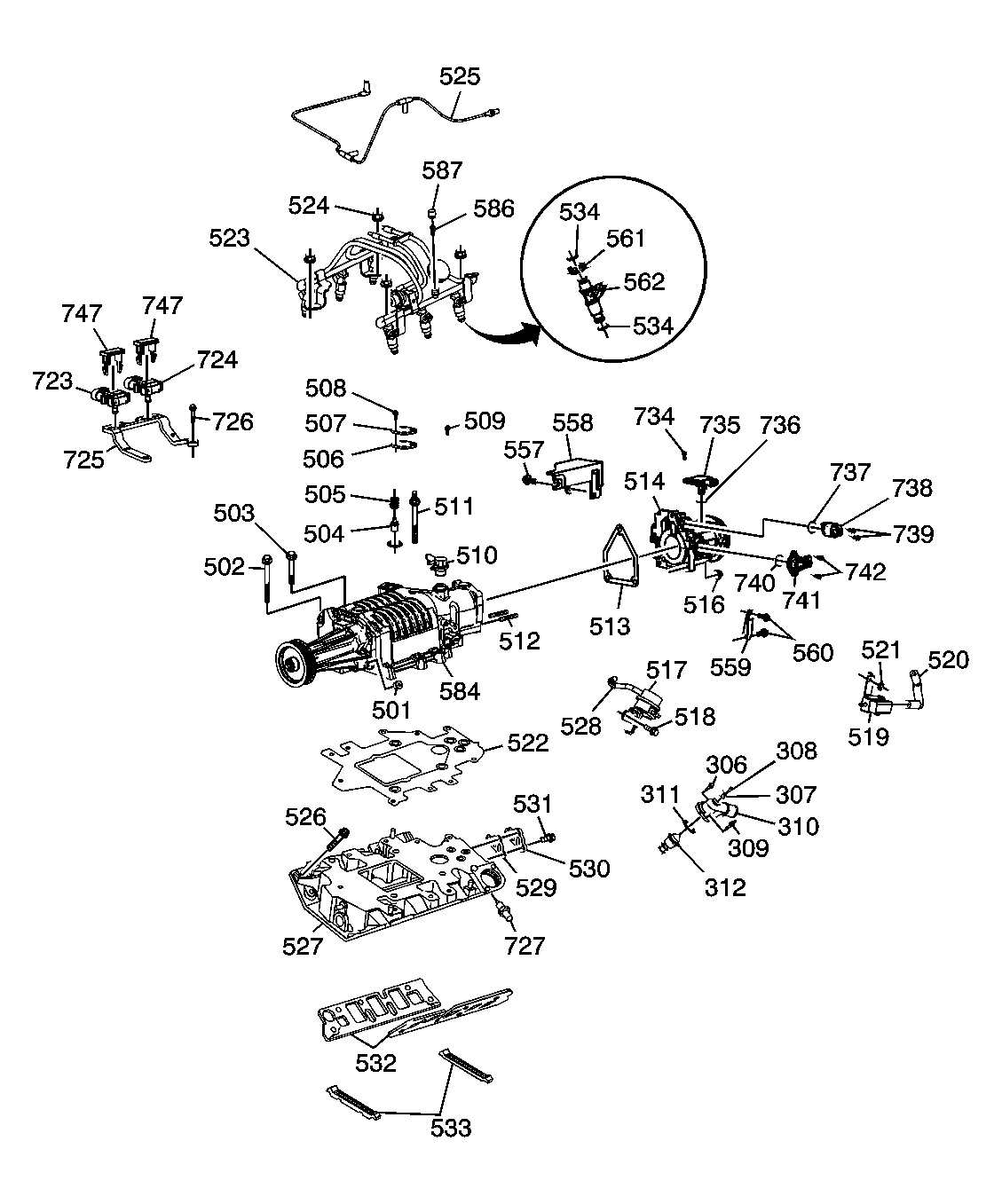

Fig 4: Supercharger And Components
GM1226864Courtesy of GENERAL MOTORS CORP.
Callout Component Name
306 Water Outlet Housing Bolt
307 Coolant Bleed Valve Fitting
308 Coolant Bleed Valve
309 Water Outlet Housing Stud
310 Water Outlet Housing
311 Thermostat Seal
312 Thermostat
501 Supercharger Oil Filter Plug
502 Supercharger Bolt - Long
503 Supercharger Bolt - Short
504 PCV Valve
505 PCV Valve Spring
506 PCV Valve Retainer Gasket
507 PCV Valve Retainer
508 PCV Valve Retainer Bolt
509 Vacuum Source Manifold Bolt
510 Vacuum Source Manifold
511 Supercharger Stud
512 Throttle Body Stud
513 Throttle Body Gasket
514 Throttle Body
516 Throttle Body Nut
517 Wastegate Valve
518 Wastegate Valve Bolt
519 Supercharger Bypass Valve
520 Supercharger Bypass Valve Hose - to Wastegate Valve
521 Supercharger Bypass Valve Nut
522 Intake Manifold Gasket - Upper
523 Fuel Rail
524 Fuel Rail Nut
525 Supercharger Bypass Valve Harness
526 Intake Manifold Bolt - Lower
527 Intake Manifold - Lower
528 Vacuum Source Manifold Tube
529 Engine Coolant Manifold Gasket
530 Engine Coolant Manifold
531 Engine Coolant Manifold Bolt
532 Intake Manifold Gasket - Lower
533 Intake Manifold Seal - Lower
534 Fuel Injector Seal
534 Fuel Injector Seal
557 Throttle Cable Bracket Bolt
558 Throttle Cable Bracket
559 Throttle Body Support Bracket
560 Throttle Body Support Bracket Bolt
561 Fuel Injector Retaining Clip
562 Fuel Injector
584 Supercharger Assembly
586 Fuel Schrader Valve
587 Fuel Service Port Cap
723 BARO Sensor
724 MAP Sensor
725 MAP/BARO Sensor Bracket
726 MAP/BARO Sensor Bracket bolt
727 Engine Coolant Temperature Sensor
734 MAF Sensor Bolt
735 MAF Sensor
736 MAF Sensor Seal
737 IAC Sensor Seal
738 IAC Sensor
739 IAC Sensor Bolt
740 TPS Sensor Seal
741 TPS Sensor
742 TPS Sensor Bolt
747 MAP/BARO Sensor Retaining Clip
747 MAP/BARO Sensor Retaining Clip

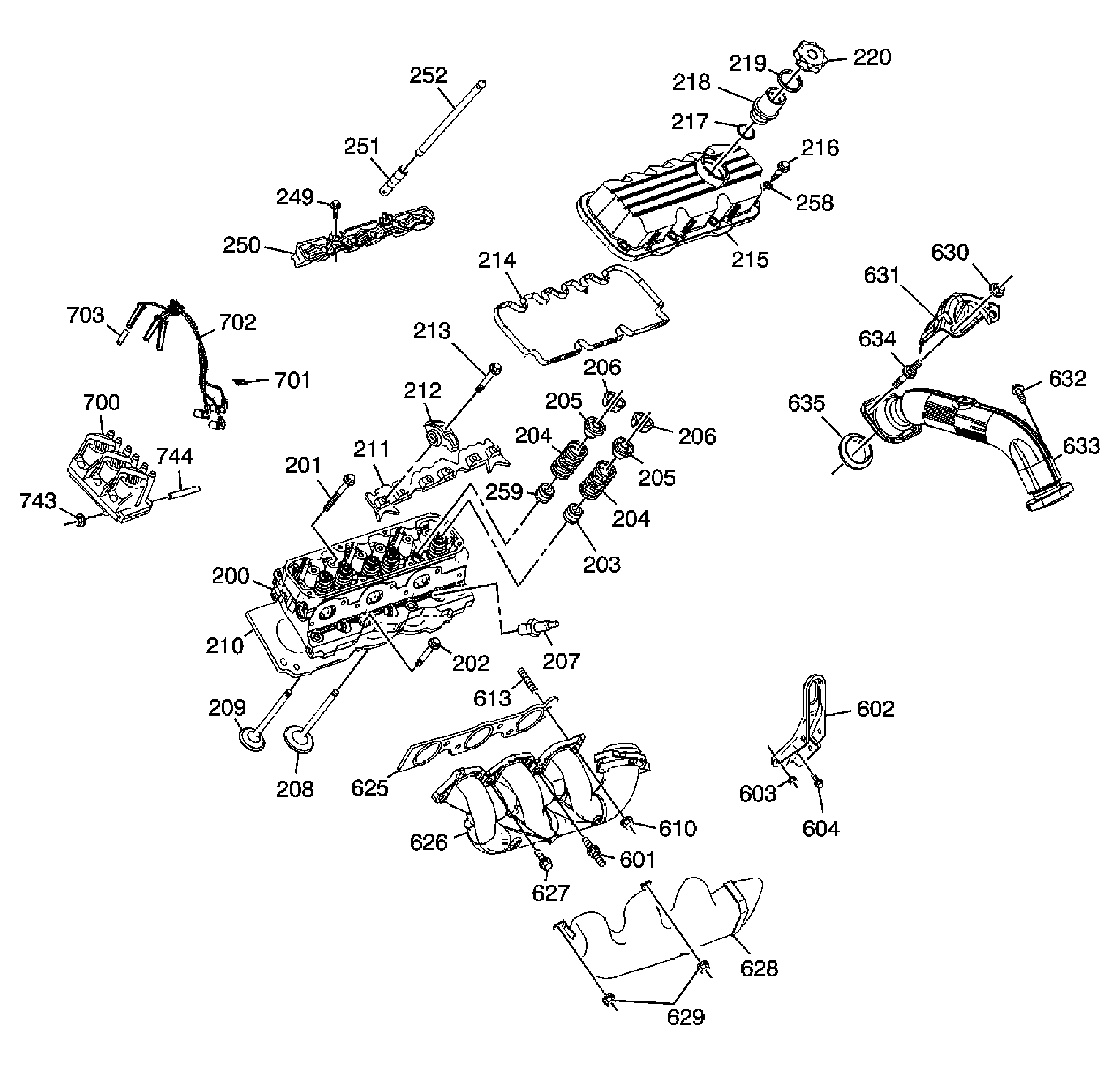

Fig 5: Cylinder Head And Components - Left - L36
GM1226865Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Cylinder Head
201 Cylinder Head Bolt - Long
202 Cylinder Head Bolt - Short
203 Valve Seal - Exhaust
204 Valve Spring
204 Valve Spring
205 Valve Stem Cap
205 Valve Stem Cap
206 Valve Stem Key
206 Valve Stem Key
207 Spark Plug
208 Exhaust Valve
209 Intake Valve
210 Cylinder Head Gasket - LH
211 Valve Rocker Arm Retainer
212 Valve Rocker Arm
213 Valve Rocker Arm Bolt
214 Valve Rocker Arm Cover Gasket
215 Valve Rocker Arm Cover - LH
216 Valve Rocker Arm Cover Bolt
217 Oil Fill Tube Seal
218 Oil Fill Tube
219 Oil Fill Cap Seal
220 Oil Fill Cap
249 Valve Lifter Guide Bolt
250 Valve Lifter Guide
251 Valve Lifter
252 Pushrod
258 Valve Rocker Arm Cover Bolt Seal
259 Valve Seal - Intake
601 Exhaust Manifold Stud
602 Engine Lift Bracket
603 Engine Lift Bracket Nut
604 Engine Lift Bracket Bolt
610 Exhaust Manifold Nut
613 Exhaust Manifold Stud - to Cylinder Head
625 Exhaust Manifold Gasket - Left
626 Exhaust Manifold - Left
627 Exhaust Manifold Bolt - Left
628 Exhaust Manifold Heat Shield - Left
629 Exhaust Manifold Heat Shield Nut - Left
630 Power Brake Booster Heat Shield Nut
631 Power Brake Booster Heat Shield
632 Exhaust Crossover Pipe Bolt
633 Exhaust Crossover Pipe
634 Exhaust Crossover Pipe Stud
635 Exhaust Crossover Pipe Seal
700 Electronic Ignition Module
701 Spark Plug Wire Harness Clip
702 Spark Plug Wire Harness
703 Spark Plug Wire Heat Shield
743 Electronic Ignition Module Nut
744 Electronic Ignition Module Stud

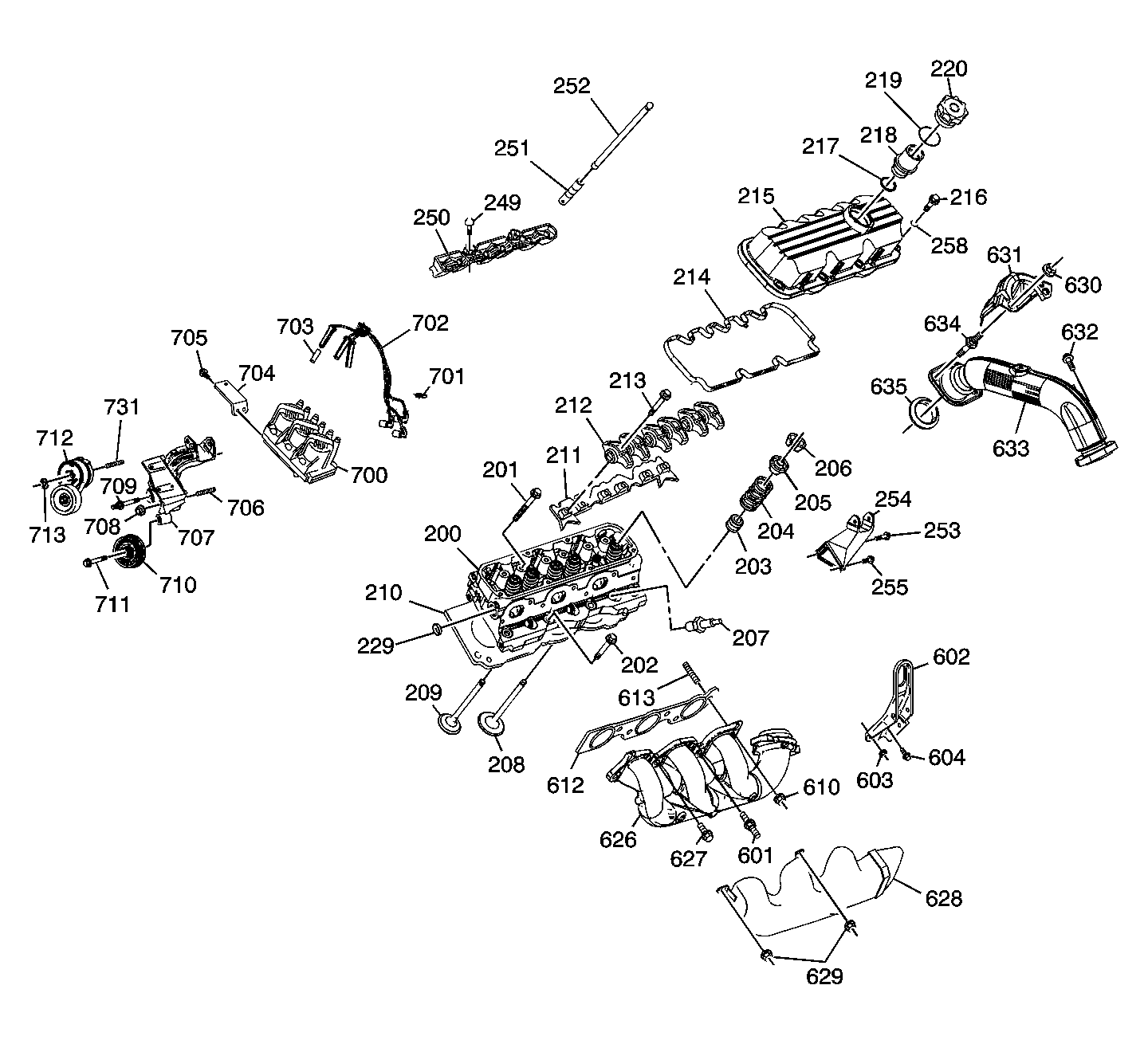

Fig 6: Cylinder Head And Components - Left - L67
GM1210593Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Cylinder Head
201 Cylinder Head Bolt - Long
202 Cylinder Head Bolt - Short
203 Valve Seal
204 Valve Spring
205 Valve Stem Cap
206 Valve Stem Key
207 Spark Plug
208 Exhaust Valve
209 Intake Valve
210 Cylinder Head Gasket - LH
211 Valve Rocker Arm Retainer
212 Valve Rocker Arm
213 Valve Rocker Arm Bolt
214 Valve Rocker Arm Cover Gasket
215 Valve Rocker Arm Cover - LH
216 Valve Rocker Arm Cover Bolt
217 Oil Fill Tube Seal
218 Oil Fill Tube
219 Oil Fill Cap Seal
220 Oil Fill Cap
249 Valve Lifter Guide Bolt
250 Valve Lifter Guide
251 Valve Lifter
252 Pushrod
253 Engine Mounting Strut Bracket Bolt - Long - Left
254 Engine Mounting Strut Bracket
255 Engine Mounting Strut Bracket Bolt - Short - Left
601 Exhaust Manifold Stud
602 Engine Lift Bracket
603 Engine Lift Bracket Nut
604 Engine Lift Bracket Bolt
610 Exhaust Manifold Nut
613 Exhaust Manifold Stud - to Cylinder Head
625 Exhaust Manifold Gasket - Left
626 Exhaust Manifold - Left
627 Exhaust Manifold Bolt - Left
628 Exhaust Manifold Head Shield - Left
629 Exhaust Manifold Heat Shield Nut - Left
630 Power Brake Booster Heat Shield Nut
631 Power Brake Booster Heat Shield
632 Exhaust Crossover Pipe Bolt
633 Exhaust Crossover Pipe
634 Exhaust Crossover Pipe Stud
635 Exhaust Crossover Pipe Seal
700 Electronic Ignition Module
701 Spark Plug Wire Harness Clip
702 Spark Plug Wire Harness
703 Spark Plug Wire Heat Shield
704 Engine Wiring Harness Clip Bracket
705 Engine Wiring Harness Clip Bracket Bolt
706 Engine Mounting Strut Bracket Stud
707 Engine Mounting Strut Bracket
708 Engine Mounting Strut Bracket Nut
709 Generator Brace Stud
710 Drive Belt Idler Pulley
711 Drive Belt Idler Pulley Bolt - Upper - Supercharger
712 Drive Belt Tensioner - Supercharger
713 Drive Belt Tensioner Nut - Supercharger
731 Drive Belt Tensioner Stud - Supercharger

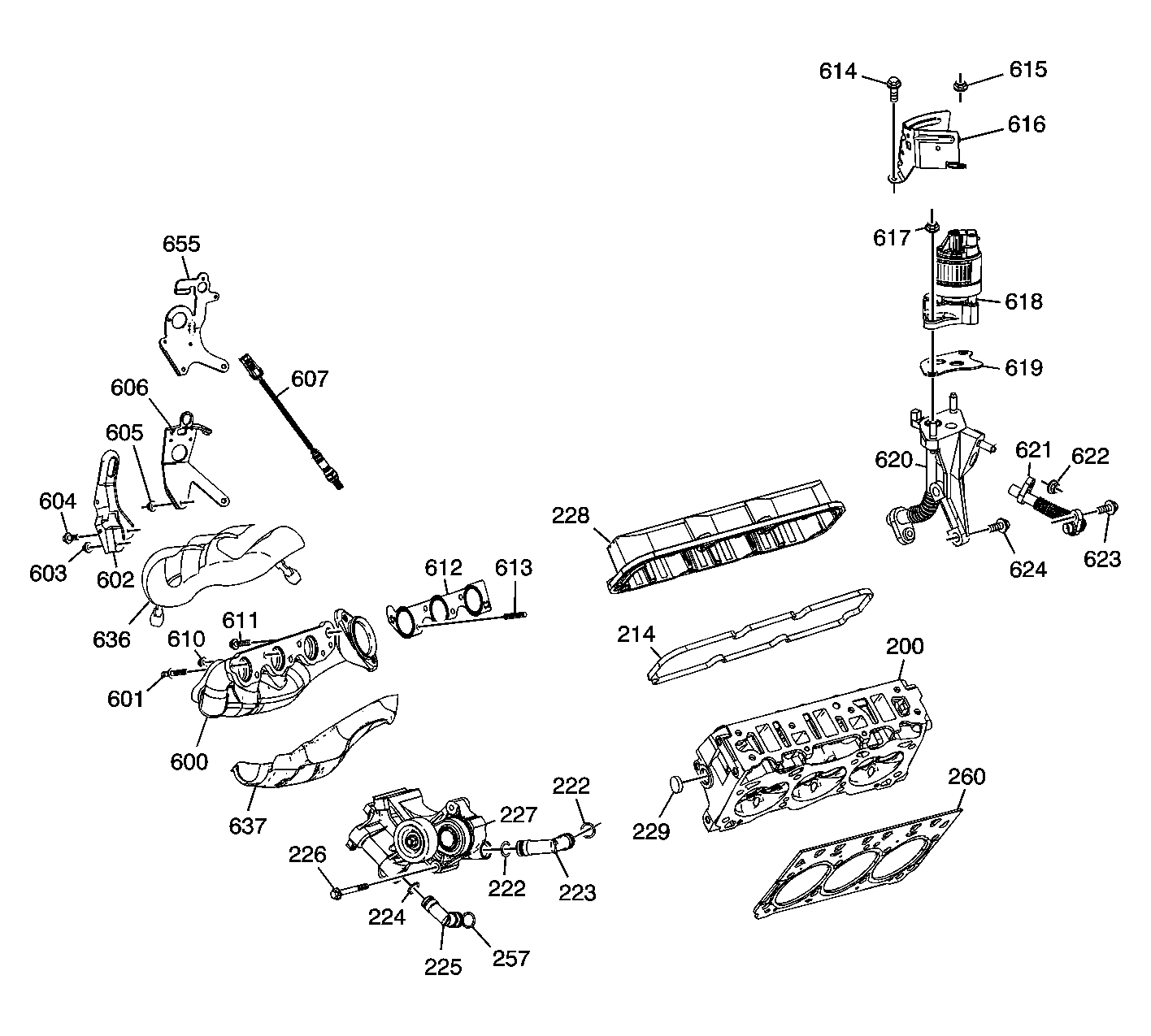

Fig 7: Cylinder Head And Components - Right
GM1226868Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Cylinder Head
214 Valve Rocker Arm Cover Gasket
222 Thermostat Bypass Pipe Seal - Upper
222 Thermostat Bypass Pipe Seal - Upper
223 Thermostat Bypass Pipe - Upper
224 Thermostat Bypass Pipe Seal - Lower - Small
225 Thermostat Bypass Pipe - Lower
226 Drive Belt Tensioner Bolt
227 Drive Belt Tensioner
228 Valve Rocker Arm Cover - RH
229 Cylinder Head Expansion Plug
257 Thermostat Bypass Pipe Seal - Lower - Large
260 Cylinder Head Gasket - RH
600 Exhaust Manifold - Right
601 Exhaust Manifold Stud
602 Engine Lift Bracket
603 Engine Lift Bracket Nut
604 Engine Lift Bracket Bolt
605 Engine Sight Shield Bracket - Nut
606 Engine Sight Shield Bracket - L36
607 Heated Oxygen Sensor
610 Exhaust Manifold Nut
611 EGR Valve Adapter Pipe Bolt - to Exhaust Manifold
612 Exhaust Manifold Gasket - Right
613 Exhaust Manifold Stud - to Cylinder Head
614 Engine Wiring Harness Shield Bracket Bolt
615 Engine Wiring Harness Shield Bracket Nut
616 Engine Wiring Harness Shield Bracket
617 EGR Valve Nut
618 EGR Valve
619 EGR Valve Gasket
620 EGR Valve Adapter
621 EGR Valve Outlet Pipe
622 EGR Valve Outlet Pipe Nut
623 EGR Valve Outlet Pipe Bolt
624 EGR Valve Adapter Pipe Bolt - to Cylinder Head
636 Exhaust Manifold Heat Shield - Right - Upper
637 Exhaust Manifold Heat Shield - Right - Lower
655 Engine Sight Shield Bracket - L67
scientia non olet · About LEMON Manuals
