Installation Procedure

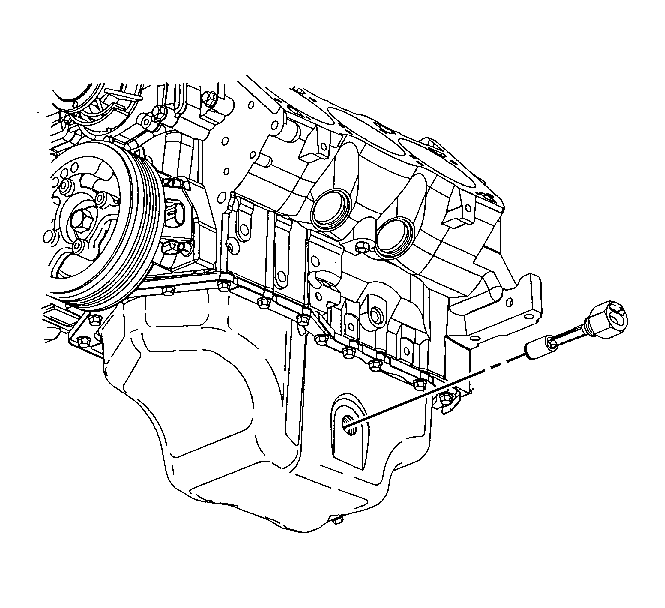

    Fig 1: Oil Level Sensor
    GM441263Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the engine oil level sensor to the oil pan.

    Tighten:  Tighten the sensor to 20 N.m (15 lb ft).

  2. Connect the oil level sensor electrical connector.
    3. Fig 2: Locating Engine Oil Drain Plug
    GM190564Courtesy of GENERAL MOTORS CORP.
  3. Install the engine oil drain plug.

    Tighten:  Tighten the plug to 30 N.m (22 lb ft).

  4. Lower the vehicle.
  5. Fill the crankcase with engine oil. Refer to Engine Oil and Oil Filter Replacement .
