Air Bag Control Module

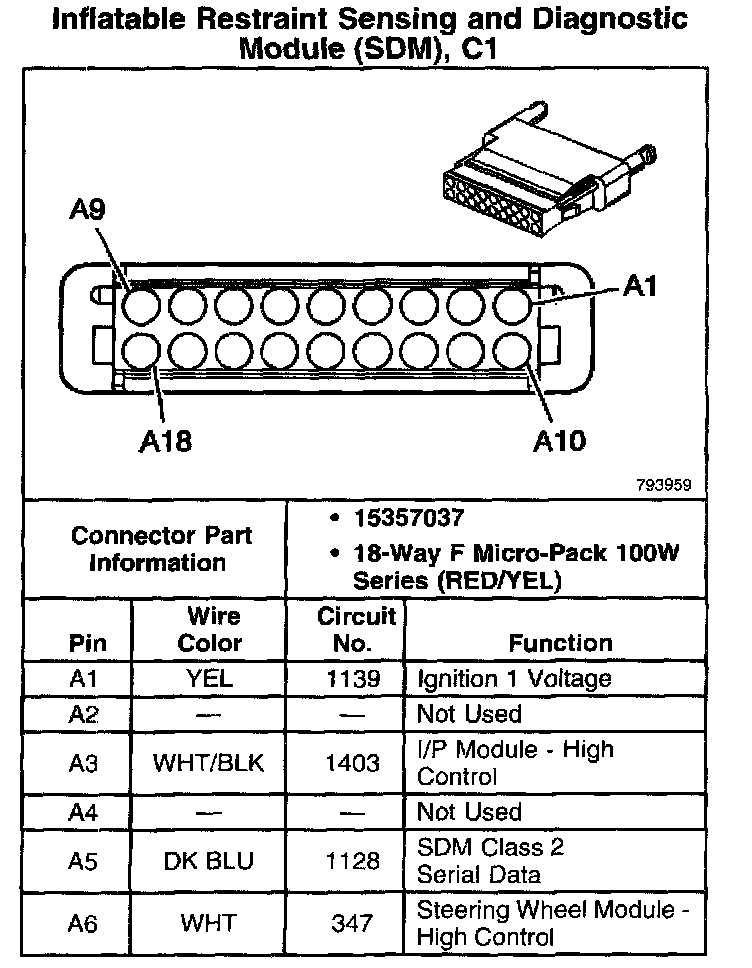

Inflatable Restraint Sensing And Diagnostic Module (SDM), C1 Part 1:



Inflatable Restraint Sensing And Diagnostic Module (SDM), C1 Part 2:

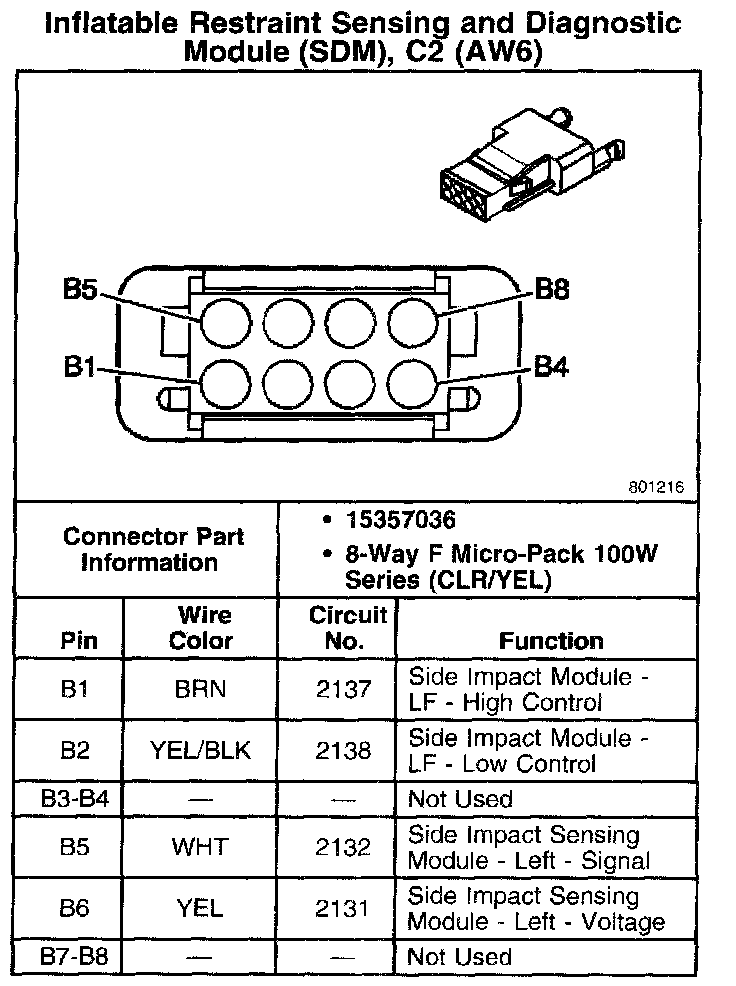

Inflatable Restraint Sensing And Diagnostic Module (SDM), C2 (With RPO Code AW6):
