Air Flow Meter/Sensor: Locations

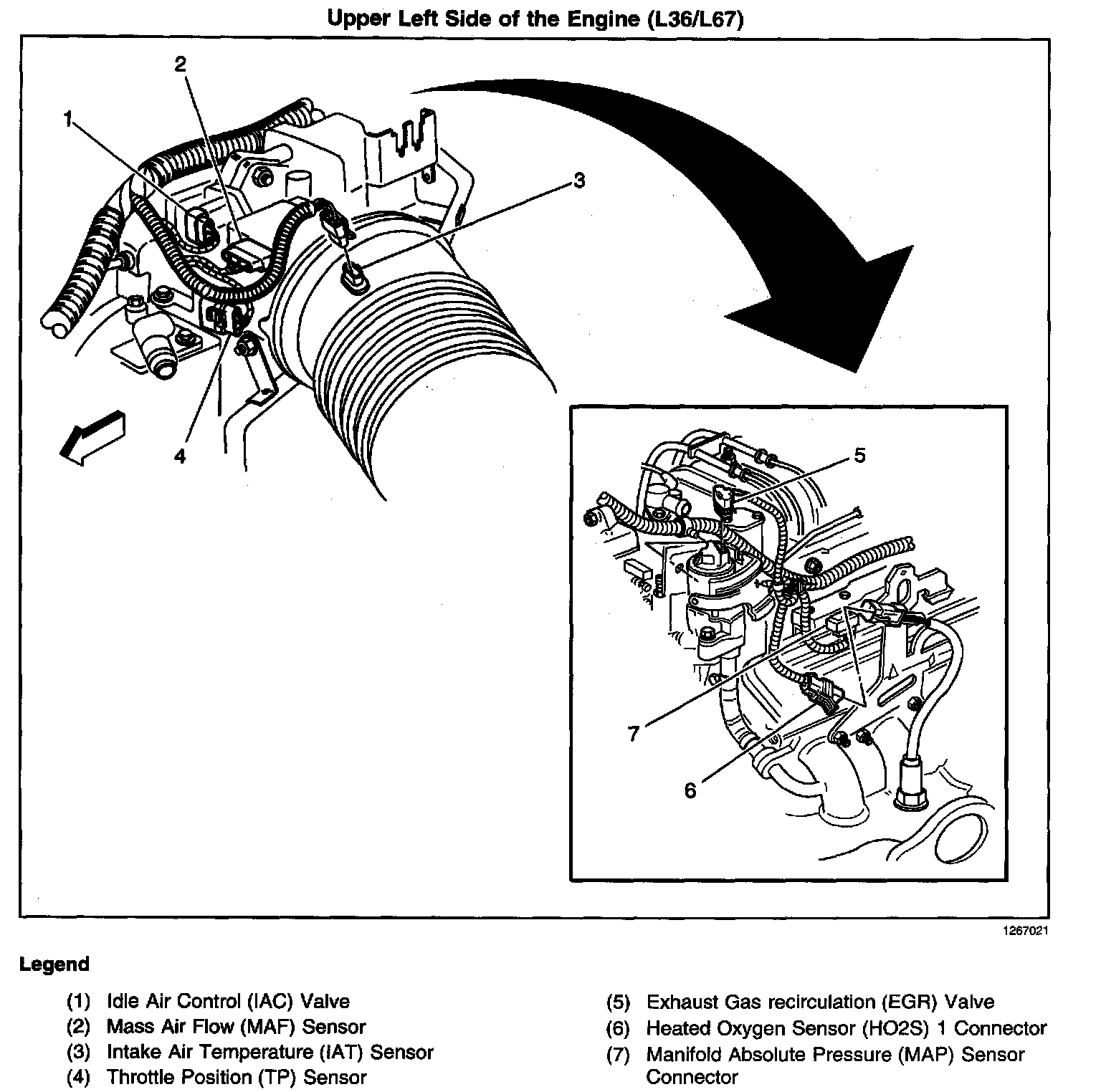

Upper Left Side Of The Engine:

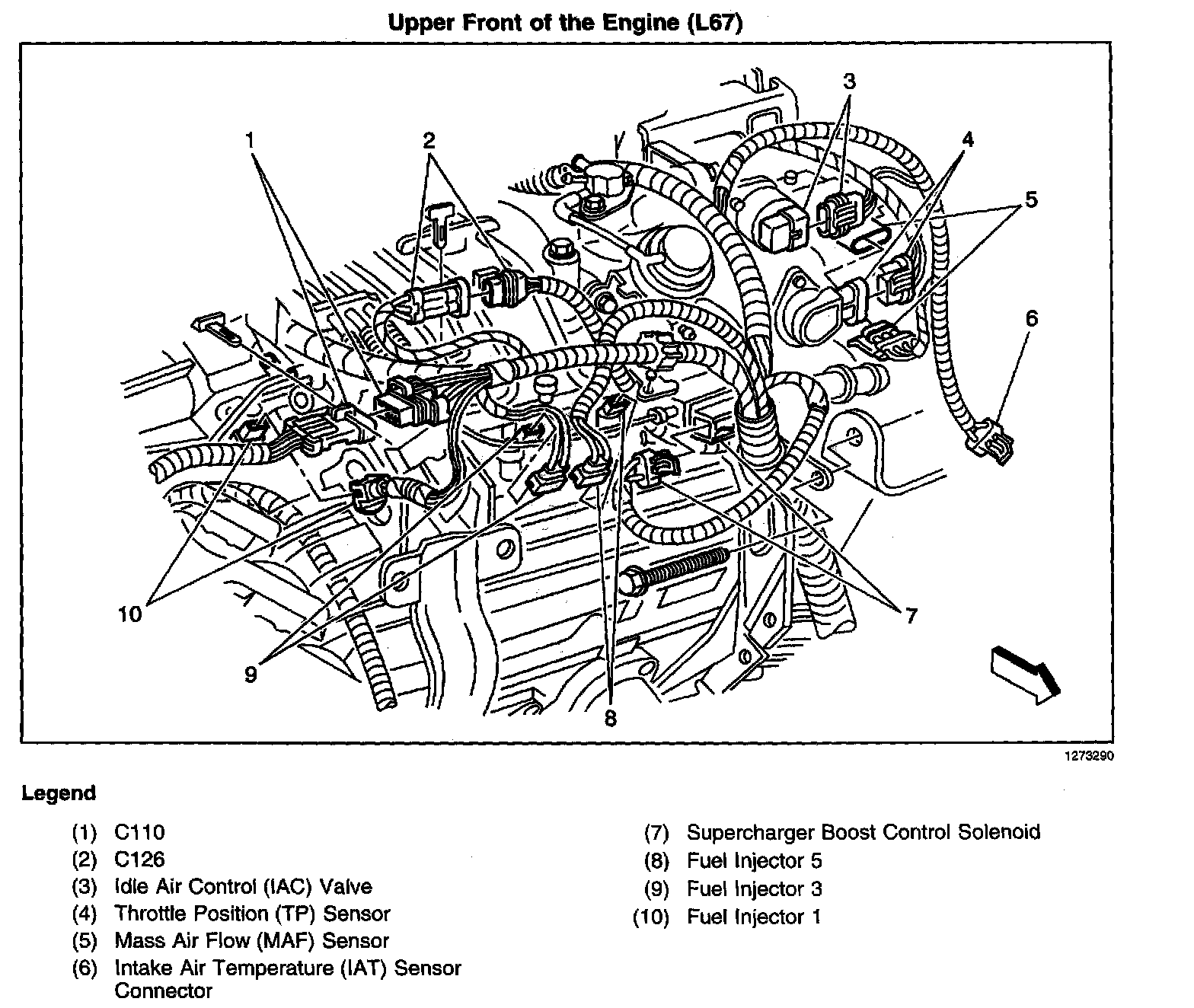

Upper Front Of The Engine:

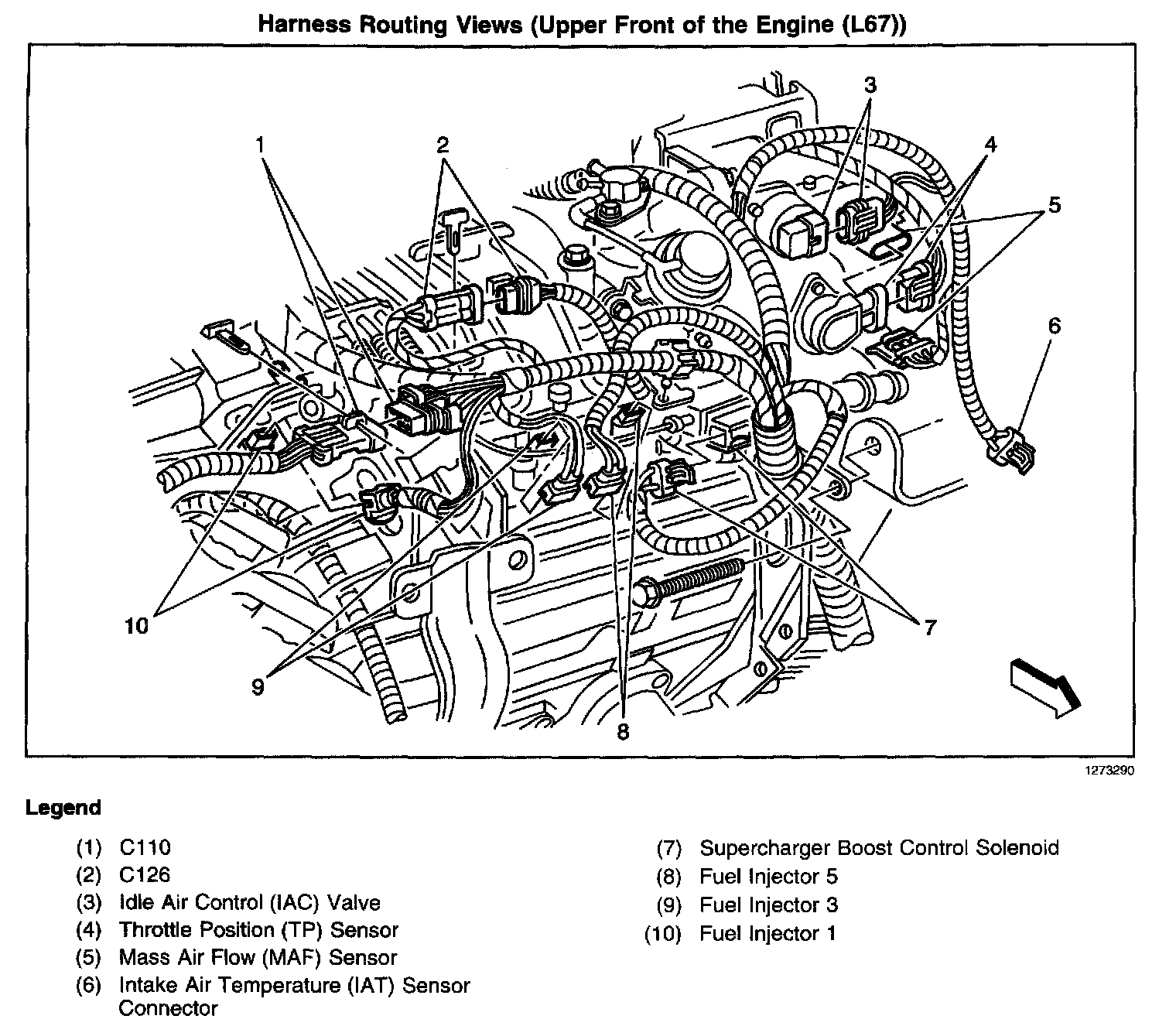

Harness Routing Views (Upper Front Of The Engine):
