Ignition Control Module: Locations

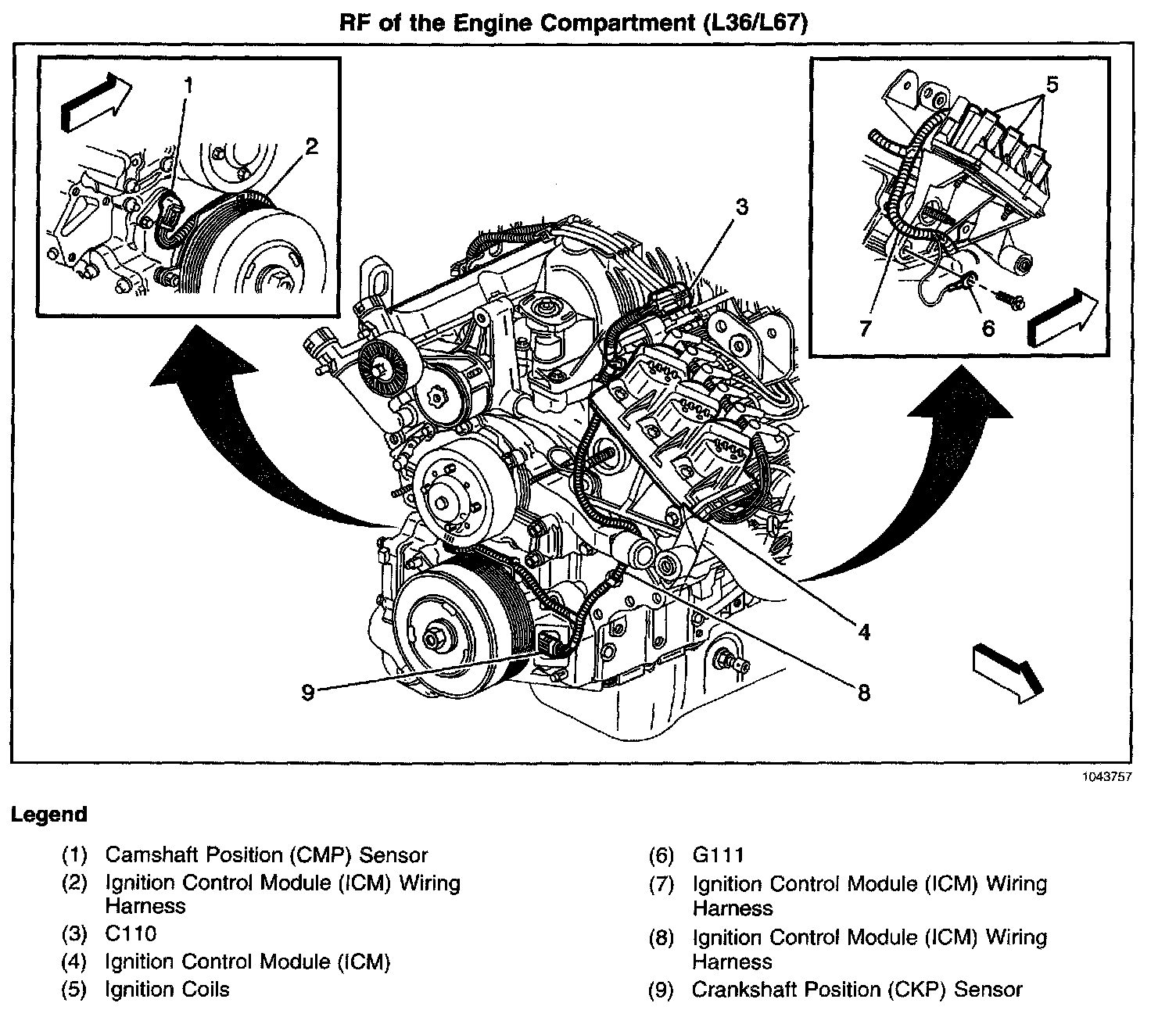

RF Of The Engine Compartment:

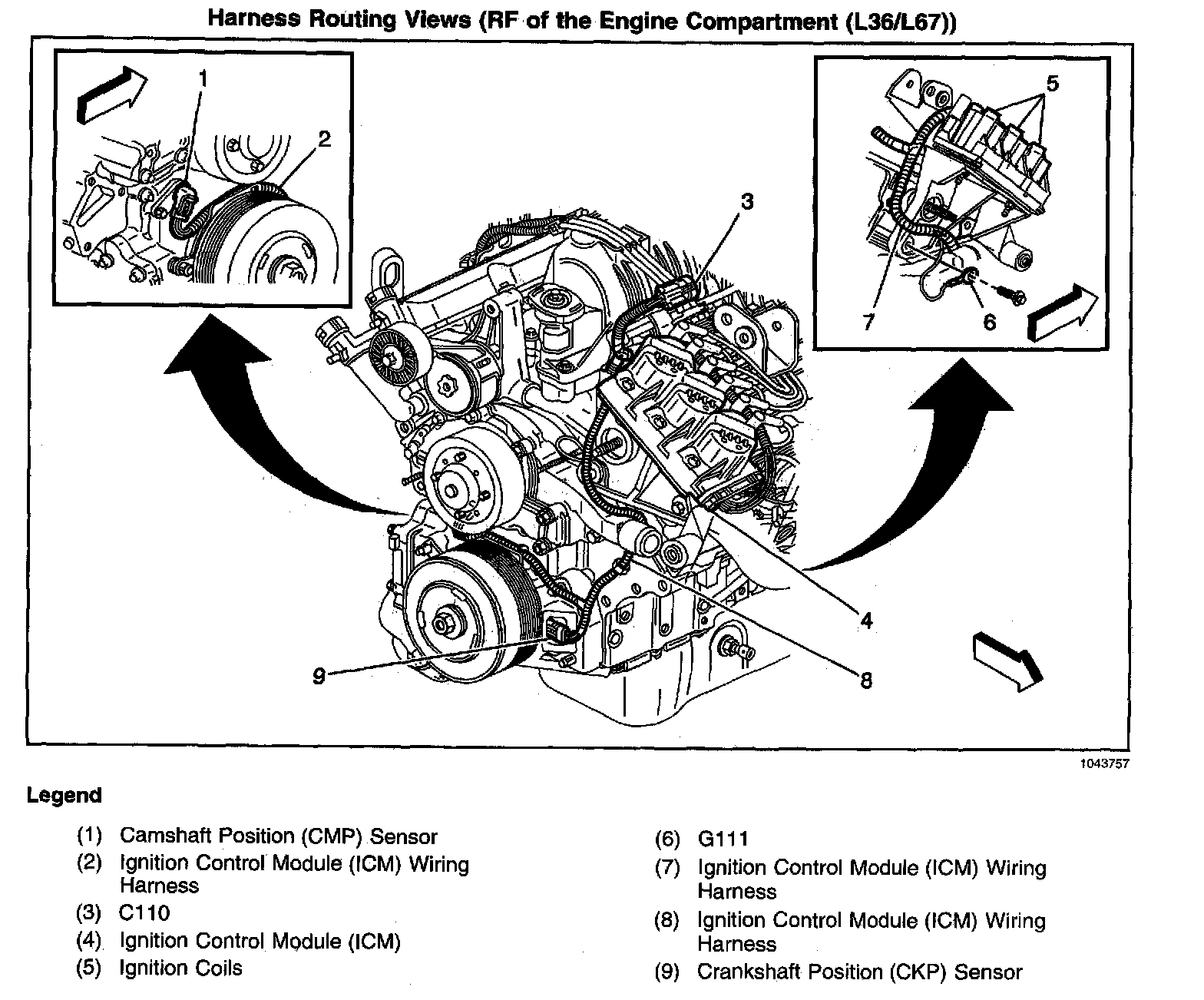

Harness Routing Views (RF Of The Engine Compartment):
