Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure
1. Remove the lower air baffle and deflector.

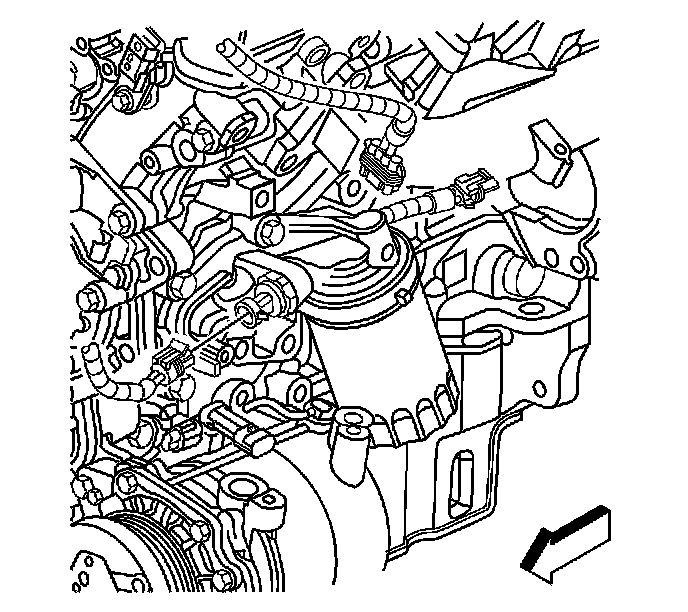

2. Disconnect the oil pressure sensor electrical connector.





3. Remove the oil pressure sensor.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

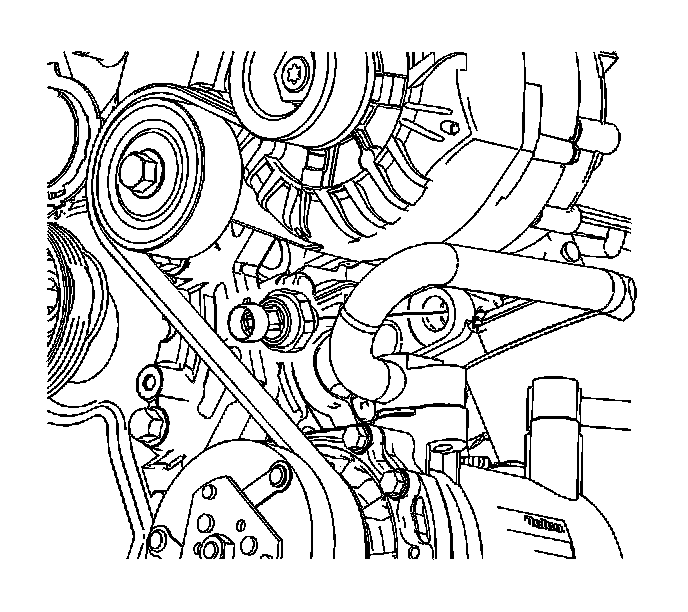

Install the oil pressure sensor.
Tighten the oil pressure sensor to 20 Nm (15 ft. lbs.).





2. Connect the oil pressure sensor electrical connector.
3. Install the lower air baffle and deflector.
