Installation Procedure

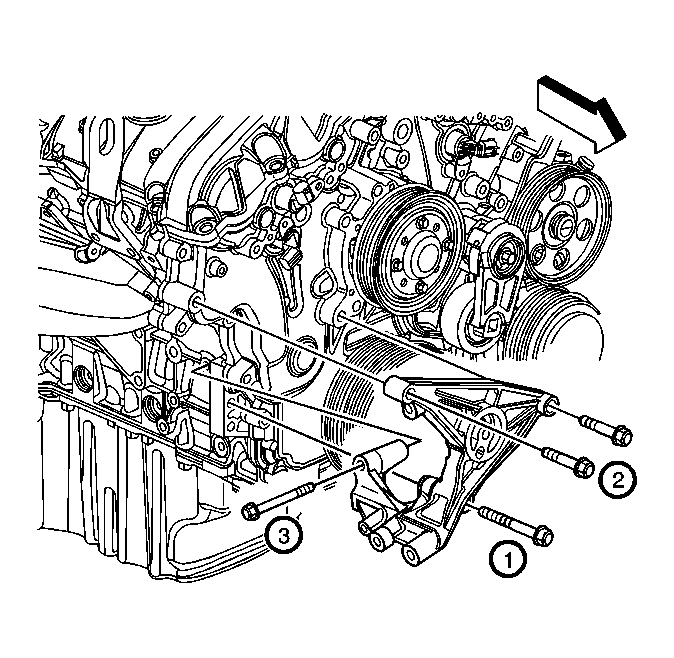

Fig 1: View Of Generator Bracket Bolts - LY7

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the generator bracket bolts.
Tighten: Tighten the generator bracket bolts in the sequence shown.
1. Tighten the generator bracket bolts (1) to 50 N.m (37 lb in).
2. Tighten the generator bracket bolts (2) to 50 N.m (37 lb in).
3. Tighten the generator bracket bolt (3) to 23 N.m (17 lb in).
Install the belt tensioner. Refer to Drive Belt Tensioner Replacement .
Install the coolant inlet pipe lower bolt from the generator bracket.
Install the generator. Refer to Generator Replacement (L26) or Generator Replacement (LY7) .
