Engine Controls Connector End Views

Accelerator Pedal Position (APP) Sensor

GM632357Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326829
  • Service: 88953153
  • 6-Way F 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 1272 Low Reference
B L-BU 1162 APP Sensor 2 Signal
C TN 1274 5-Volt Reference
D BN 1271 Low Reference
E D-BU 1161 APP Sensor 1 Signal
F WH/BK 1164 5-Volt Reference

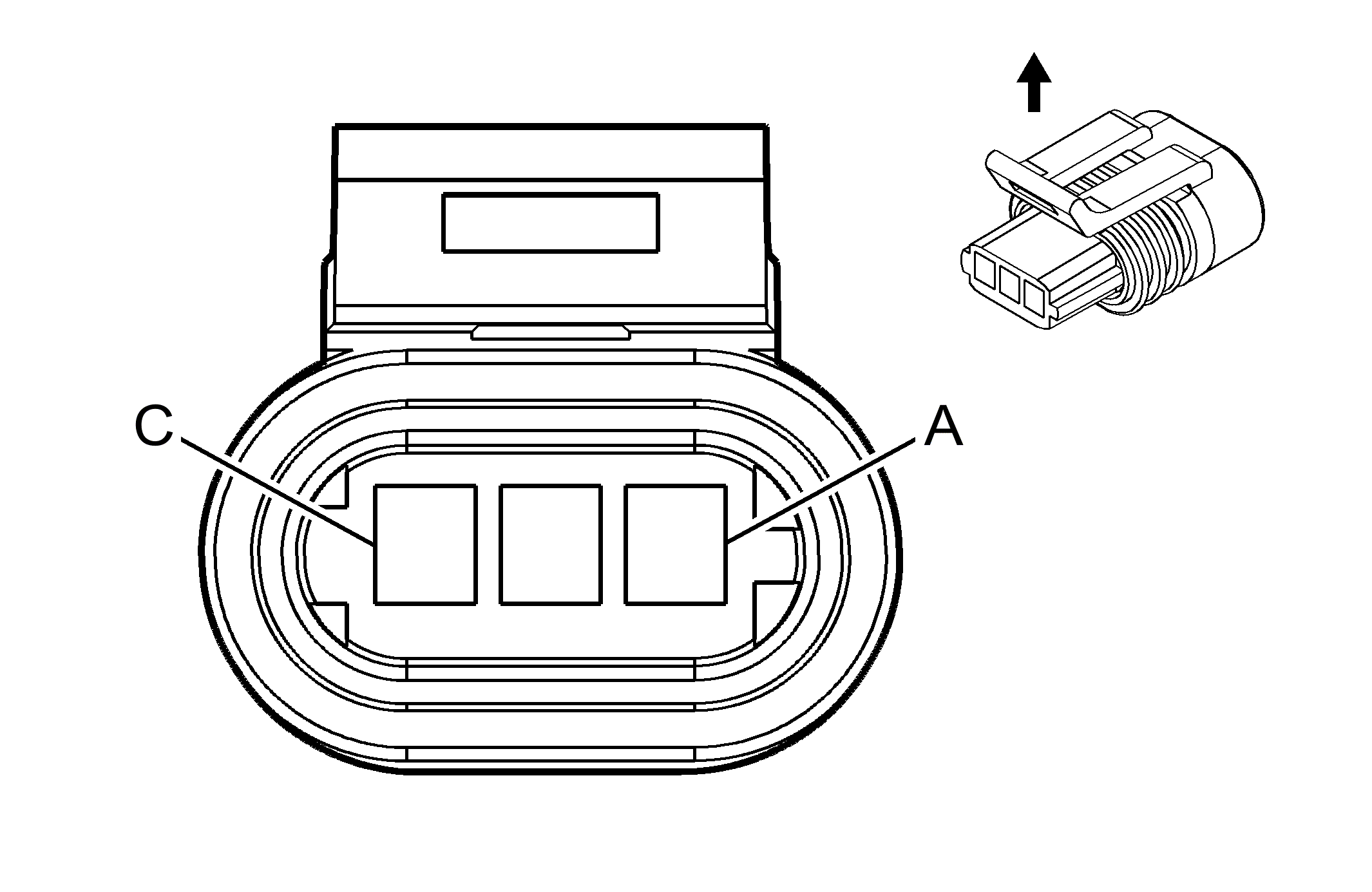

Camshaft Position (CMP) Sensor

GM1526379Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: Assembly 12162279

    Connector 12162272

    Cable Seal 12092862

    Connector Seal 12047908

  • Service: 12126476
  • 3-Way F Metri-Pack 150.2 Series, Pull To Seat (GY)
Pin Wire Color Circuit No. Function
A BN/WH 633 CMP Sensor Signal
B BK/WH 836 Low Reference
C WH/BK 644 12-Volt Reference
Crankshaft Position (CKP) Sensor

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: Assembly 12162834

    Connector 12162724

    Connector Seal 12040756

    Cable Seal 12078081

  • Service: See Catalog
  • 4-Way F Metri-Pack 150.2 Series, Sealed, Pull-To-Seat
Pin Wire Color Circuit No. Function
A L-BU/WH 1800 CKP Sensor 2 Signal
B YE 573 CKP Sensor 1 Signal
C BK/WH 836 Low Reference
D WH/BK 644 12-Volt Reference
Engine Coolant Temperature (ECT) Sensor

GM655692Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12162193
  • Service: 88987183
  • 2-Way F Metri-Pack 150.2 Pull To Seat Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 2761 Low Reference
B YE 410 ECT Sensor Signal
Evaporative Emission (EVAP) Canister Purge Solenoid Valve

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052643
  • Service: 12101858
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A PK 339 Ignition 1 Voltage
B D-GN/WH 428 EVAP Canister Purge Solenoid Valve Control
Evaporative Emission (EVAP) Canister Vent Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052643
  • Service: 12101858
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A OG 2840 Battery Positive Voltage
B WH 1310 EVAP Canister Vent Solenoid Valve Control
Exhaust Gas Recirculation (EGR) Valve

GM684863Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12186056
  • Service: 12126477
  • 5-Way F Metri-Pack 150.2 Pull To Seat Series Sealed (BK)
Pin Wire Color Circuit No. Function
A GY 435 EGR Solenoid Low Control
B BK 2753 Low Reference
C BN 1456 EGR Valve Position Signal
D GY 2702 5-Volt Reference
E RD 1676 EGR Solenoid High Control
Fuel Injector 1

GM1243578Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15421930
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control
Fuel Injector 2

GM1243578Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15421930
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B L-GN/BK 1745 Fuel Injector 2 Control
Fuel Injector 3

GM1243578Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15421930
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B PK/BK 1746 Fuel Injector 3 Control
Fuel Injector 4

GM1243578Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15421930
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B L-BU/BK 844 Fuel Injector 4 Control
Fuel Injector 5

GM1243578Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15421930
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B BK/WH 845 Fuel Injector 5 Control
Fuel Injector 6

GM1243578Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15421930
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B YE/BK 846 Fuel Injector 6 Control
Fuel Pump and Sender Assembly

GM684908Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326631
  • Service: 15306360
  • 4-Way F GT 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 150 Ground
B PU 30 Fuel Level Sensor Signal
C BK/WH 651 Ground
D GY 120 Fuel Pump Supply Voltage
Fuel Tank Pressure Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059595
  • Service: 88986451
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B D-GN 890 Fuel Tank Pressure Sensor Signal
C GY/BK 416 5-Volt Reference
Heated Oxygen Sensor (HO2S) 1 (W/O NU3)

GM456551Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12160482
  • Service: See Catalog
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN/WH 3111 HO2S Low Signal
B PU/WH 3110 HO2S High Signal
C BK/WH 3112 HO2S Heater Low Control Sensor 1
D PK 839 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 1 (NU3)

GM1526380Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12176896
  • Service: See Catalog
  • 4-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A TN/WH 3111 HO2S Low Signal
B PU/WH 3110 HO2S High Signal
C BK/WH 3112 HO2S Heater Low Control Sensor 1
D PK 839 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 2

GM806613Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326423
  • Service: 15306319
  • 4-Way M Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A TN/WH 3121 HO2S Low Signal
B PU 3120 HO2S High Signal
C BK/WH 3122 HO2S Heater Low Control Sensor 2
D PK 839 Ignition 1 Voltage
Ignition Control Module (ICM)

GM516619Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124379
  • Service: 12167123
  • 14-Way F Metri-Pack 150 Pull To Seat Series Sealed (BK)
Pin Wire Color Circuit No. Function
A WH 423 IC Timing Control
B TN/BK 424 IC Timing Signal
C L-BU/BK 647 Medium Resolution Engine Speed Signal
D PU/WH 430 Low Resolution Engine Speed Signal
E - - Not Used
F BK 630 Camshaft Position Signal
G YE 573 CKP Sensor 1 Signal
H L-BU/WH 1800 CKP Sensor 2 Signal
J BN/WH 633 CMP Sensor Signal
K BK/WH 51 Ground
L RD/BK 453 Low Reference
M BK/WH 836 Low Reference
N WH/BK 644 12-Volt Reference
P PK 239 Ignition 1 Voltage
Knock Sensor (KS) 1

GM95764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12176800
  • Service: 15306070
  • 1-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
1 D-BU 496 Knock Sensor 1 Signal
Knock Sensor (KS) 2

GM95764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12176800
  • Service: 15306070
  • 1-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
1 L-BU 1876 Knock Sensor 2 Signal
Manifold Absolute Pressure (MAP) Sensor

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129946
  • Service: 12129946
  • 3-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C GY 2704 5-Volt Reference
Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326822
  • Service: 15326822
  • 5-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A YE 492 MAF Sensor Signal
B PK 339 Ignition 1 Voltage
C BK/WH 451 Ground
D TN 472 IAT Sensor Signal
E BK 2760 Low Reference
Secondary Air Injection (AIR) Control Solenoid Valve/Pressure Sensor, Bank 2 (NU3)

GM1526382Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15460171
  • Service: See Catalog
  • 6-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK 476 Low Reference
2 WH 5268 Air Pressure Sensor Signal
3 GY 474 5-Volt Reference
4 BK/WH 451 Ground
5 - - Not Used
6 PU 421 Air Injection Reaction Solenoid Relay Coil Control

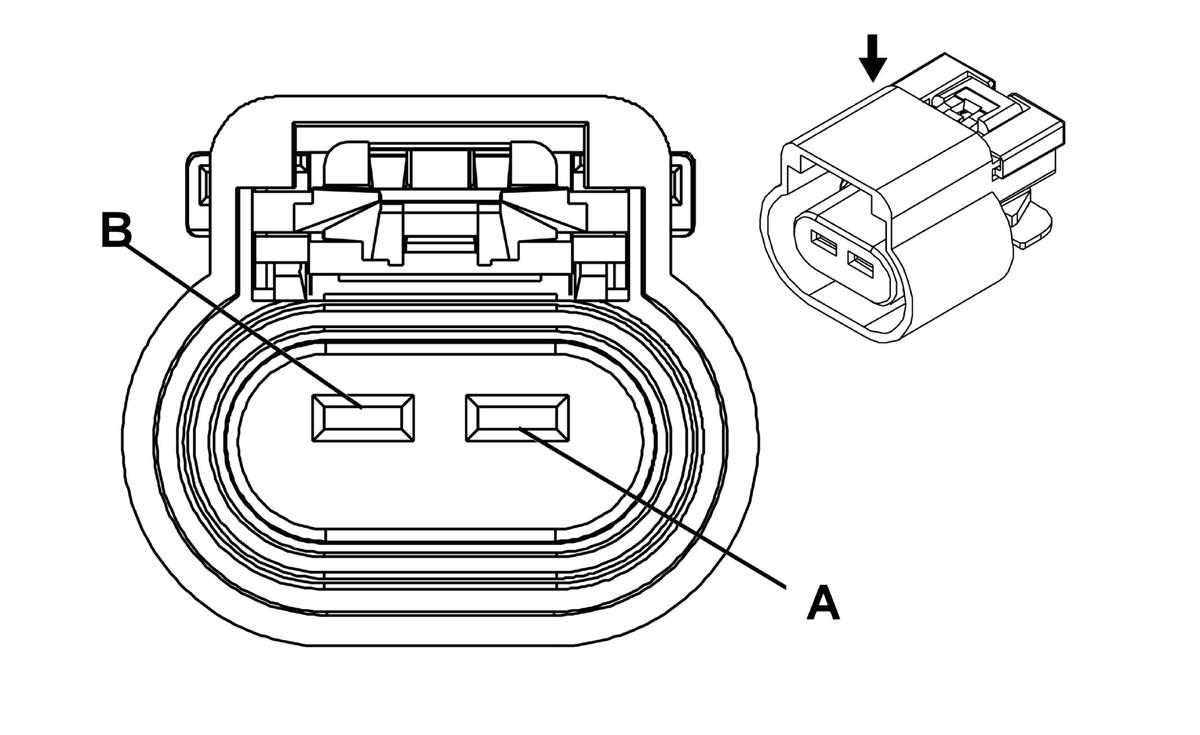

Secondary Air Injection (AIR) Pump (NU3)

GM1526384Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326677
  • Service: 88953351
  • 2-Way F GT 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A RD 78 Air Pump Supply Voltage
B BK 1050 Ground
Secondary Air Injection (AIR) Pump Relay (NU3)

GM603108Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336745
  • Service: 15306331
  • 4-Way F GT 280 Series, Metri-Pack 800 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
30 OG 1540 Battery Positive Voltage
85 PK 339 Ignition 1 Voltage
86 BN/WH 436 Air Pump Relay Control
87 RD 78 Air Pump Supply Voltage
Secondary Air Injection (AIR) Solenoid Relay (NU3)

GM535912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129716
  • Service: 15306045
  • 4-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit No. Function
30 PK 339 Ignition 1 Voltage
85 PK 339 Ignition 1 Voltage
86 PK/BK 429 Air Injection Reaction Solenoid Relay Coil Control
87 PU 421 Air Injection Reaction Solenoid Control
Throttle Actuator Control (TAC) Module

GM1243581Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15355368
  • Service: 15355368
  • 20-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
1 TN 1274 5-Volt Reference
2 PU 1272 Low Reference
3 L-BU 1162 APP Sensor 2 Signal
4 D-GN 389 Vehicle Speed Signal
5 - - Not Used
6 WH 17 Stop Lamp Switch Signal
7 OG/BK 1061 UART Serial Data Secondary
8 TN/WH 551 Ground
9-10 - - Not Used
11 D-BU 1161 APP Sensor 1 Signal
12 BN 1271 Low Reference
13 WH/BK 1164 5-Volt Reference
14-15 - - Not Used
16 TN 800 UART Serial Data Primary
17 TN/WH 551 Ground
18 PK 39 Ignition 1 Voltage
19-20 - - Not Used
