Engine Controls Schematics

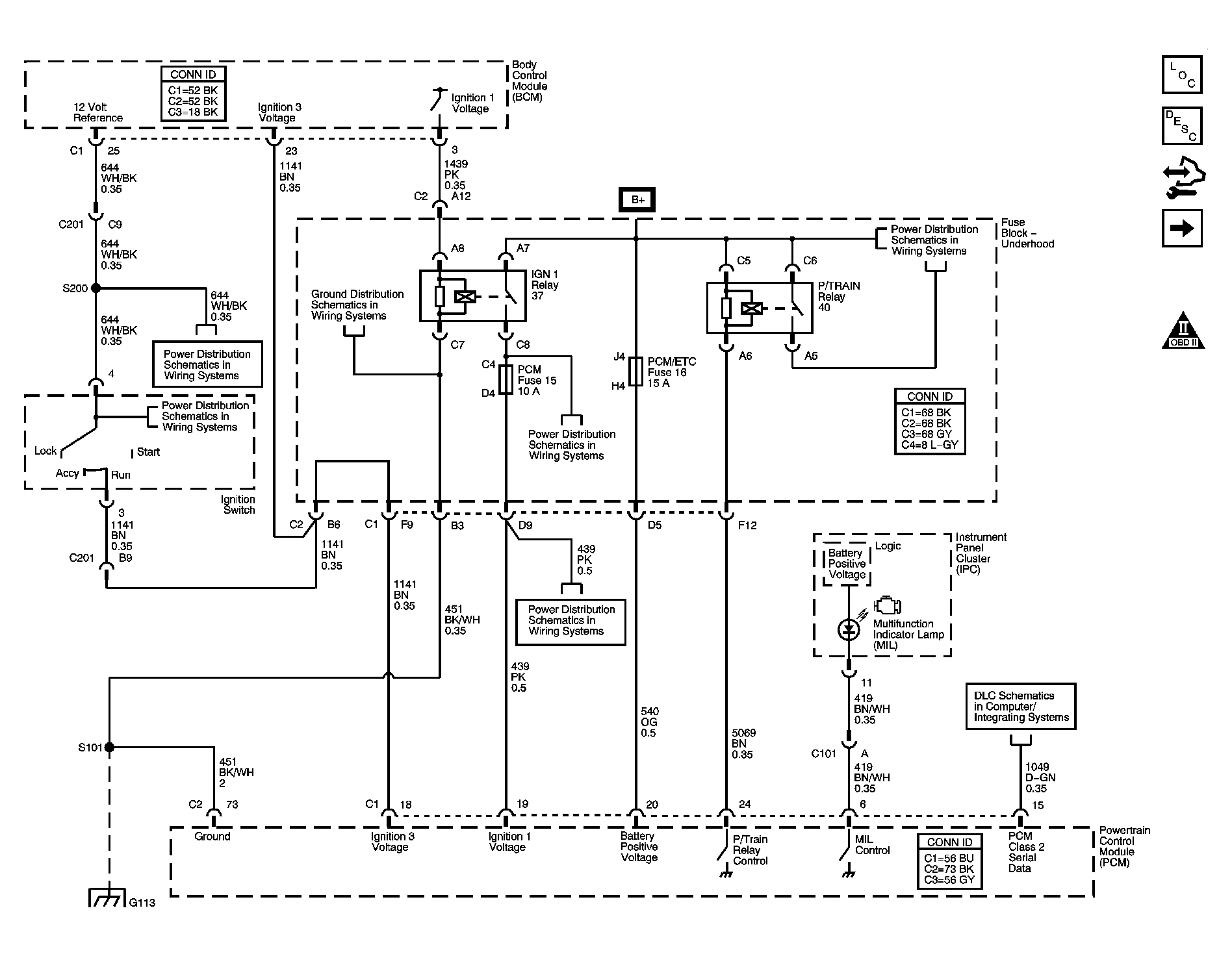

Fig 1: Module Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

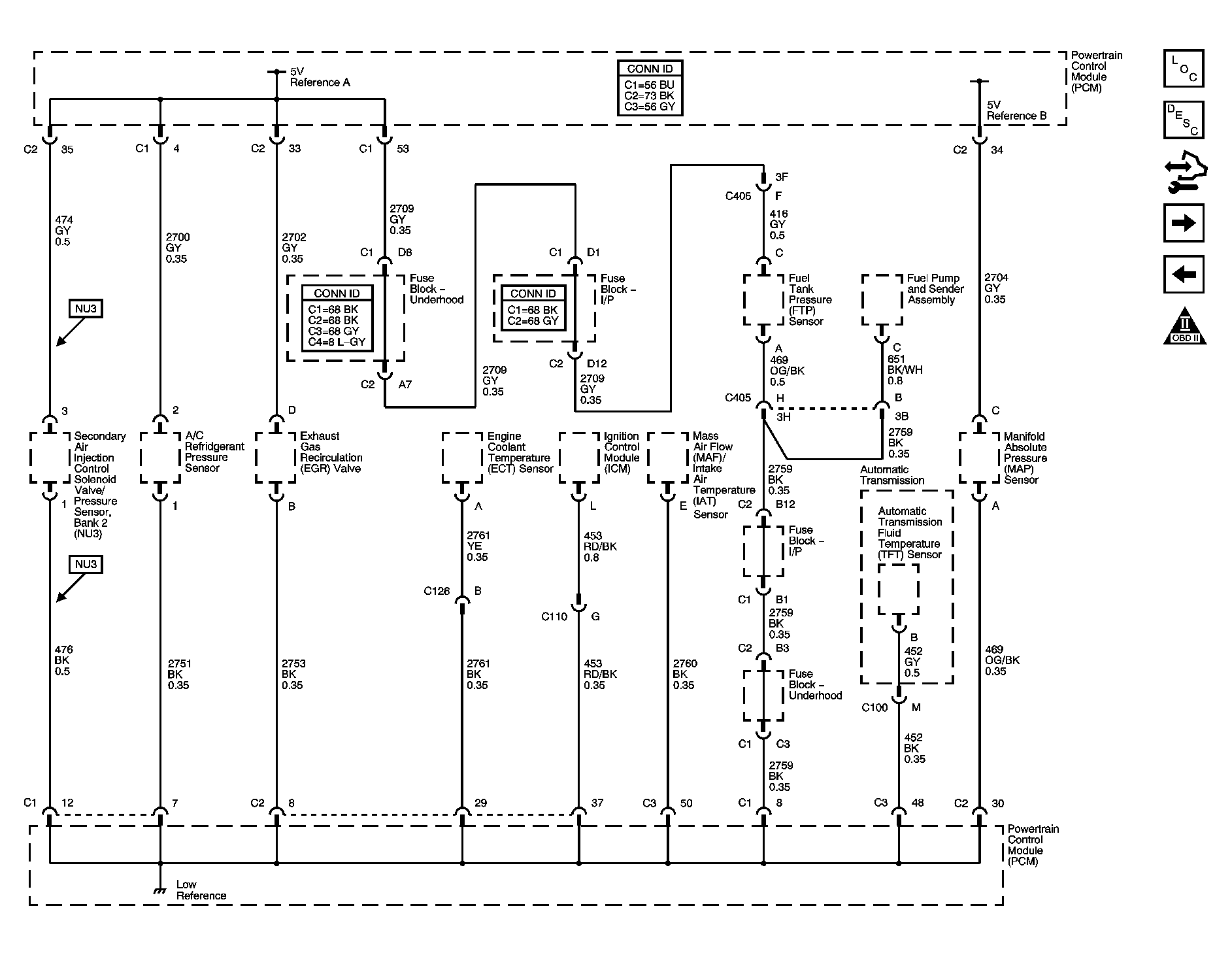

Fig 2: 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Pressure and Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: MAF and VSS Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

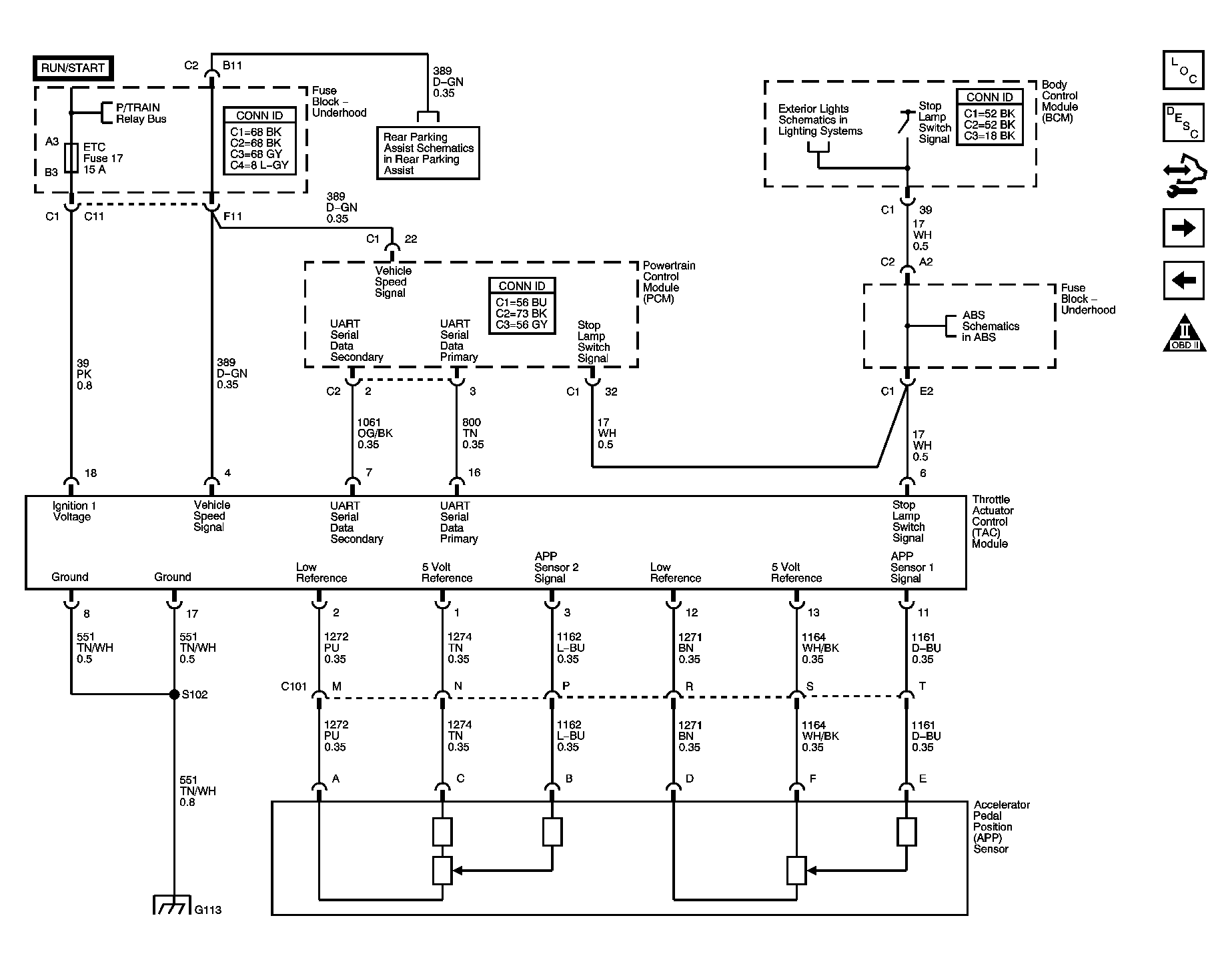

Fig 6: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

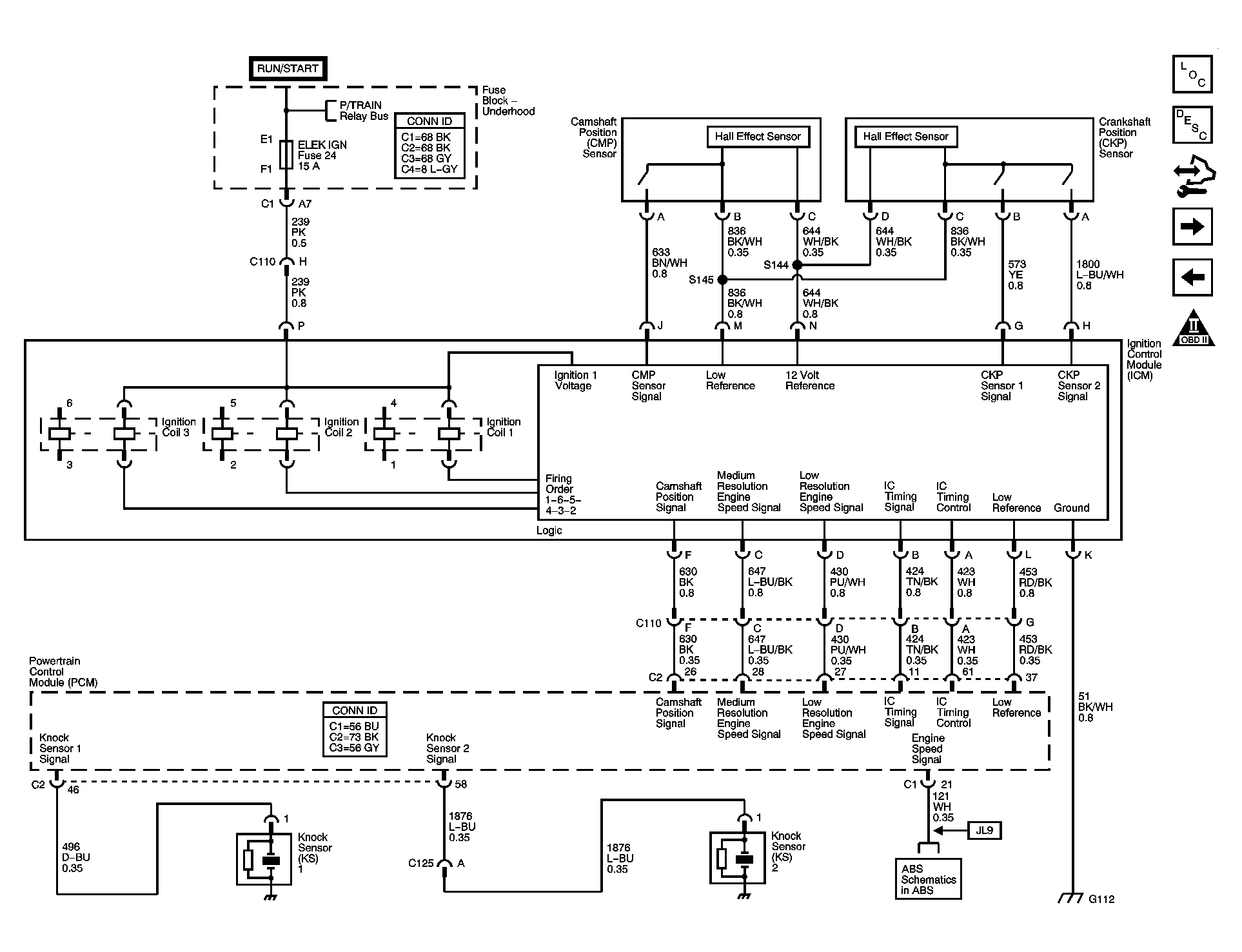

Fig 7: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

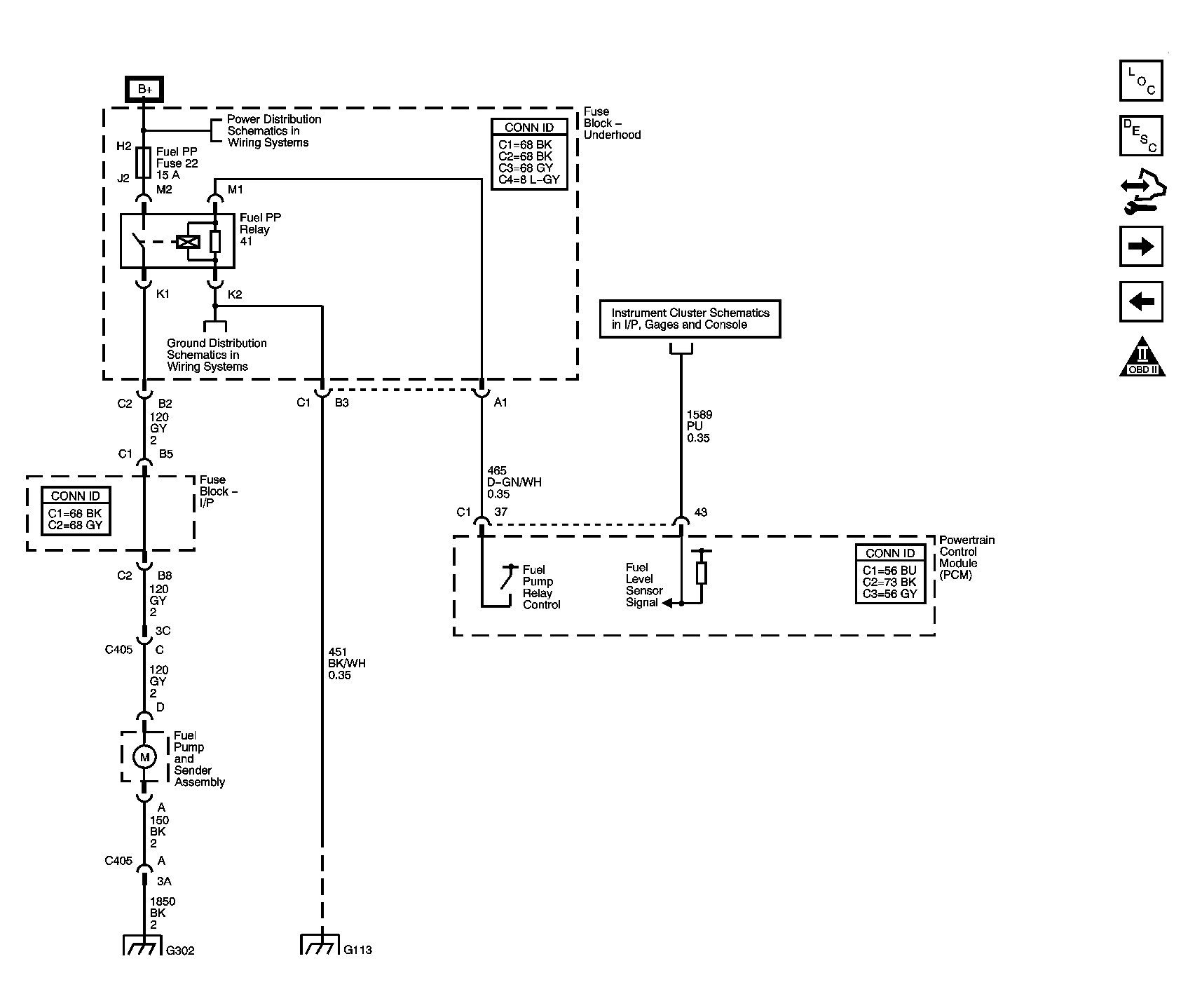

Fig 8: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

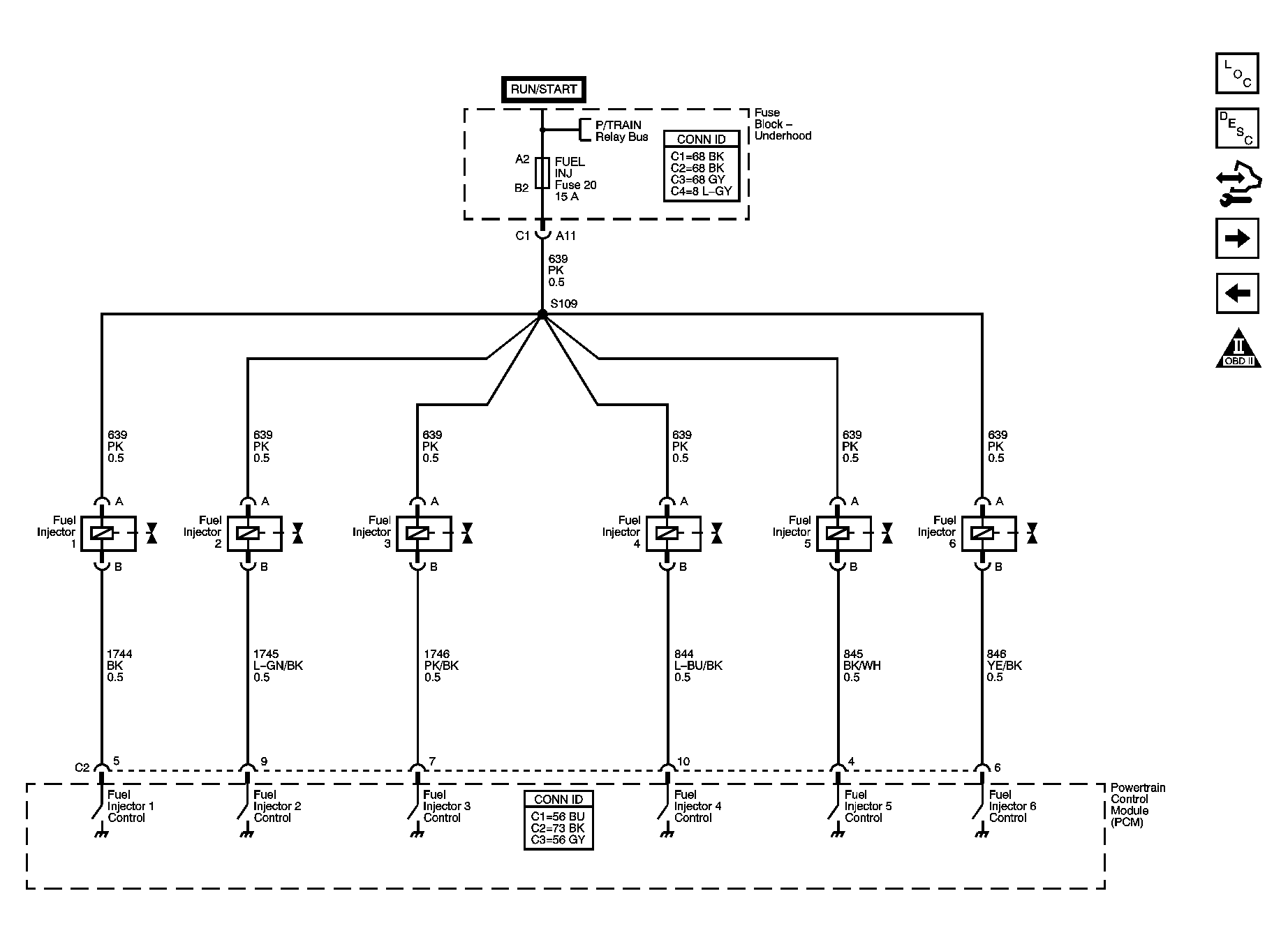

Fig 9: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

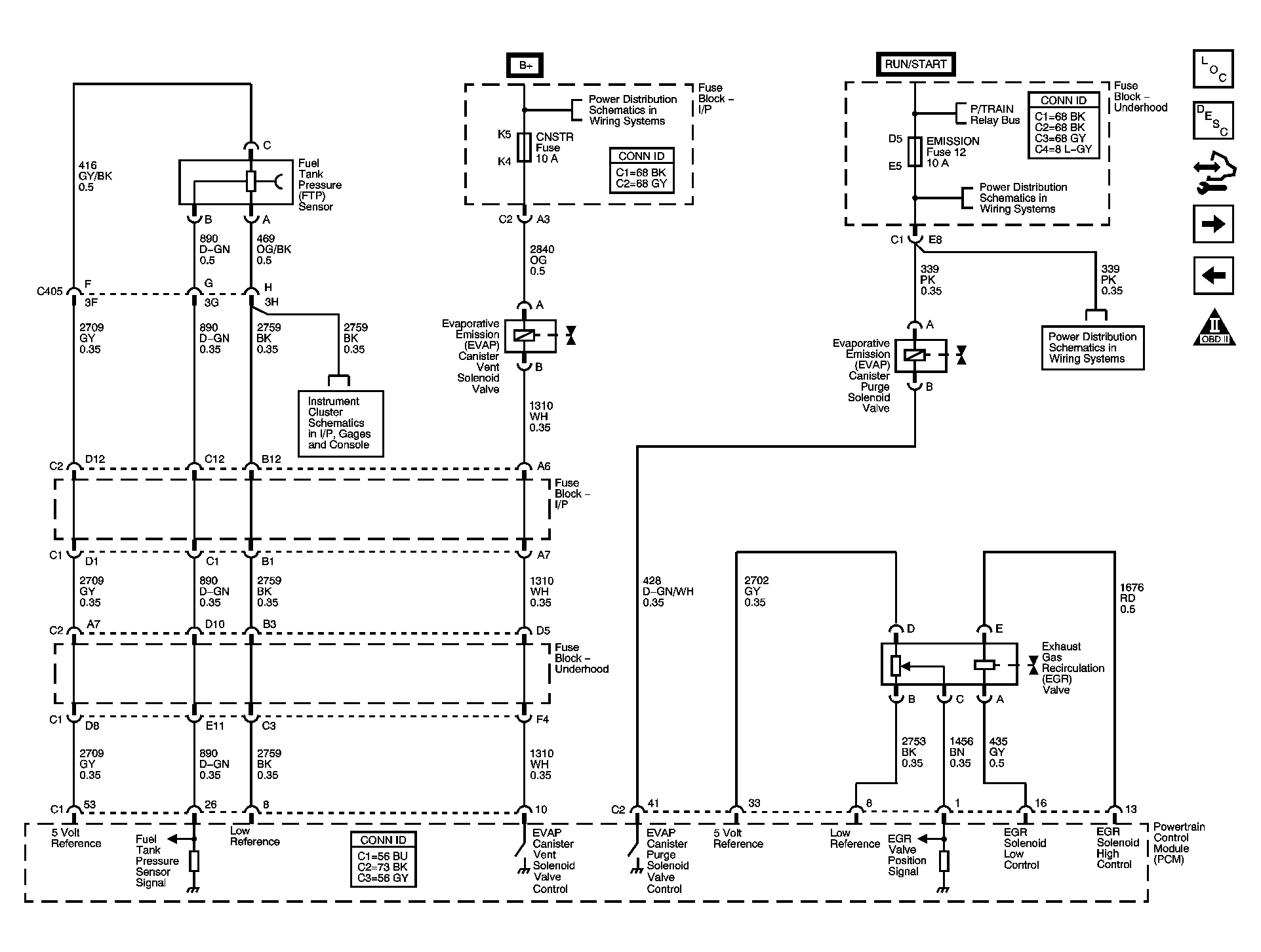

Fig 10: EVAP, EGR and FTP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

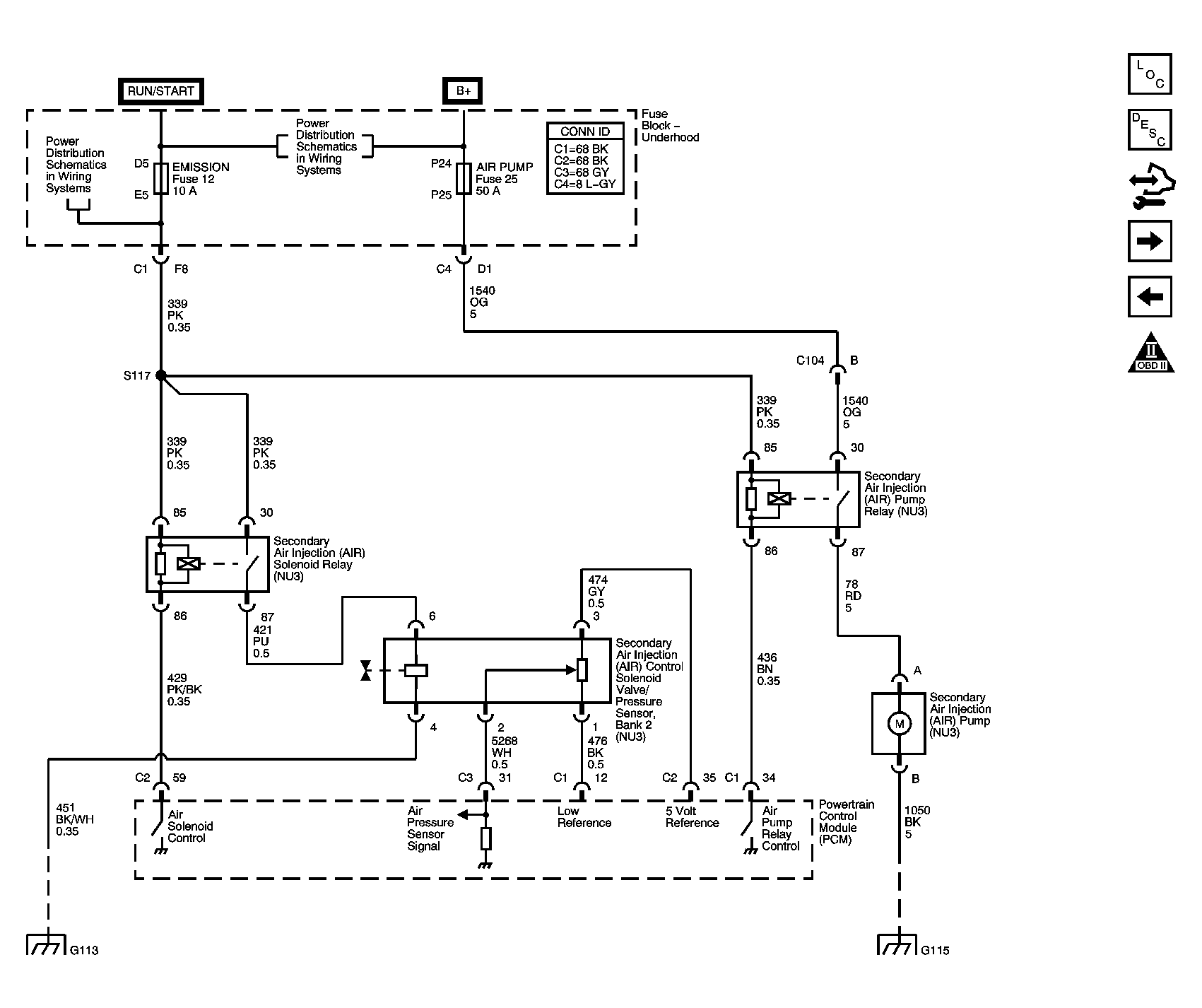

Fig 11: AIR Controls (NU3) Schematic

Courtesy of GENERAL MOTORS CORP.

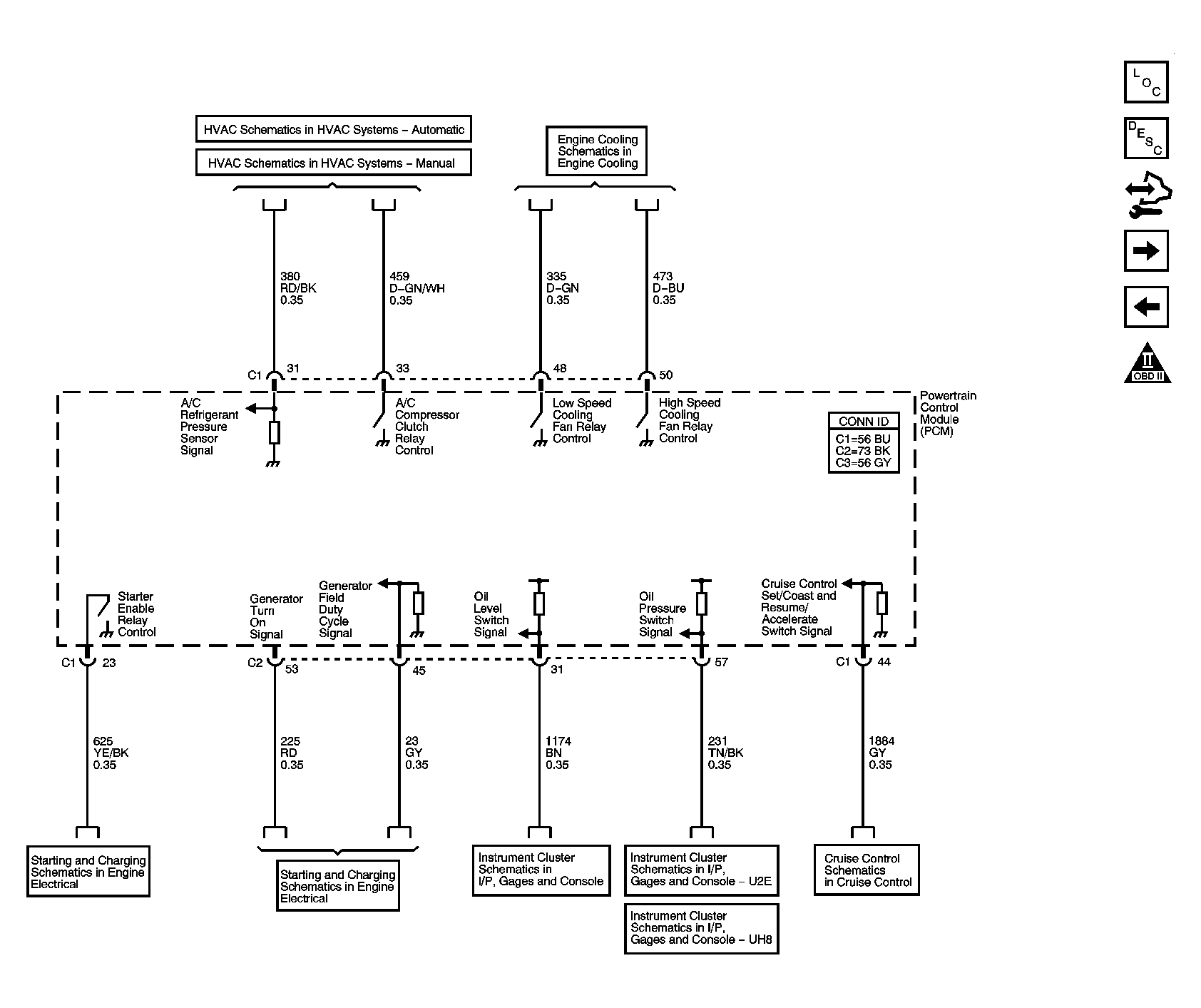

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

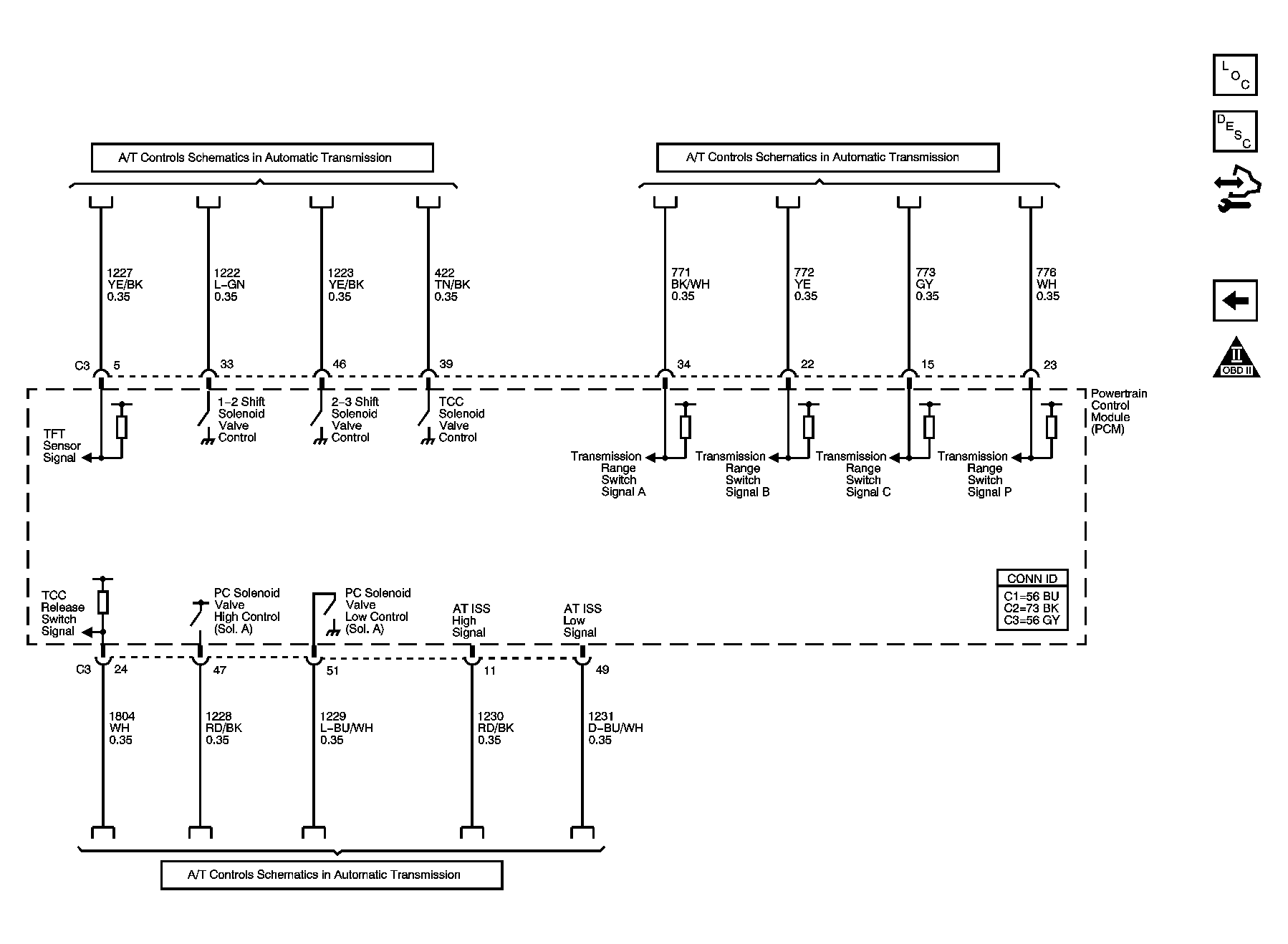

Fig 13: A/T Control References Schematic

Courtesy of GENERAL MOTORS CORP.
