Computer/Integrating Systems Component Views

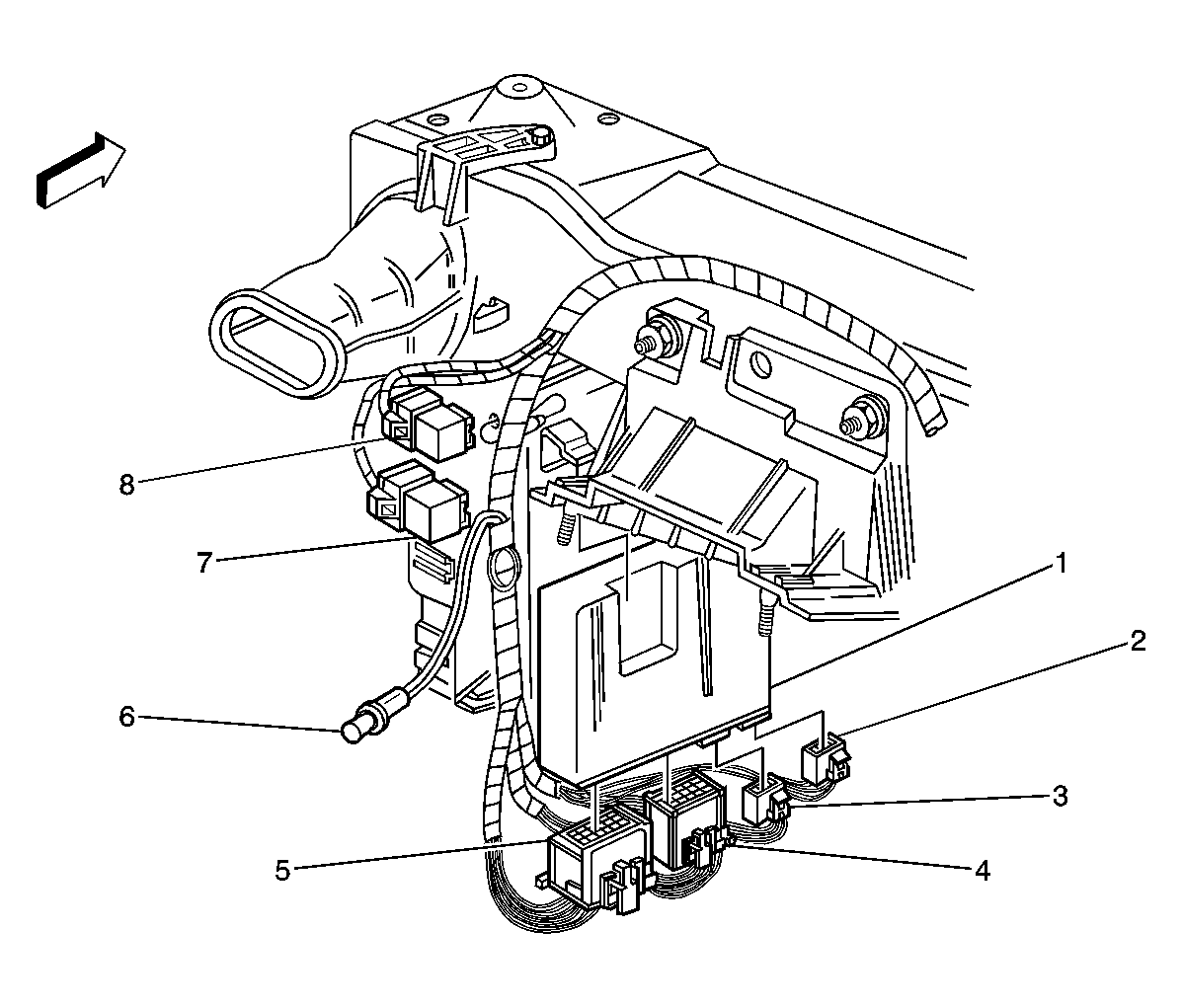

Fig 1: Below Left Side of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Body Control Module (BCM) Connector, C4
3	Body Control Module (BCM) Connector, C3
4	Body Control Module (BCM) Connector, C2
5	Body Control Module (BCM) Connector, C1
6	I/P Courtesy Lamp - Left
7	Turn Signal/Hazard Flasher Module
8	Backup Lamp Relay

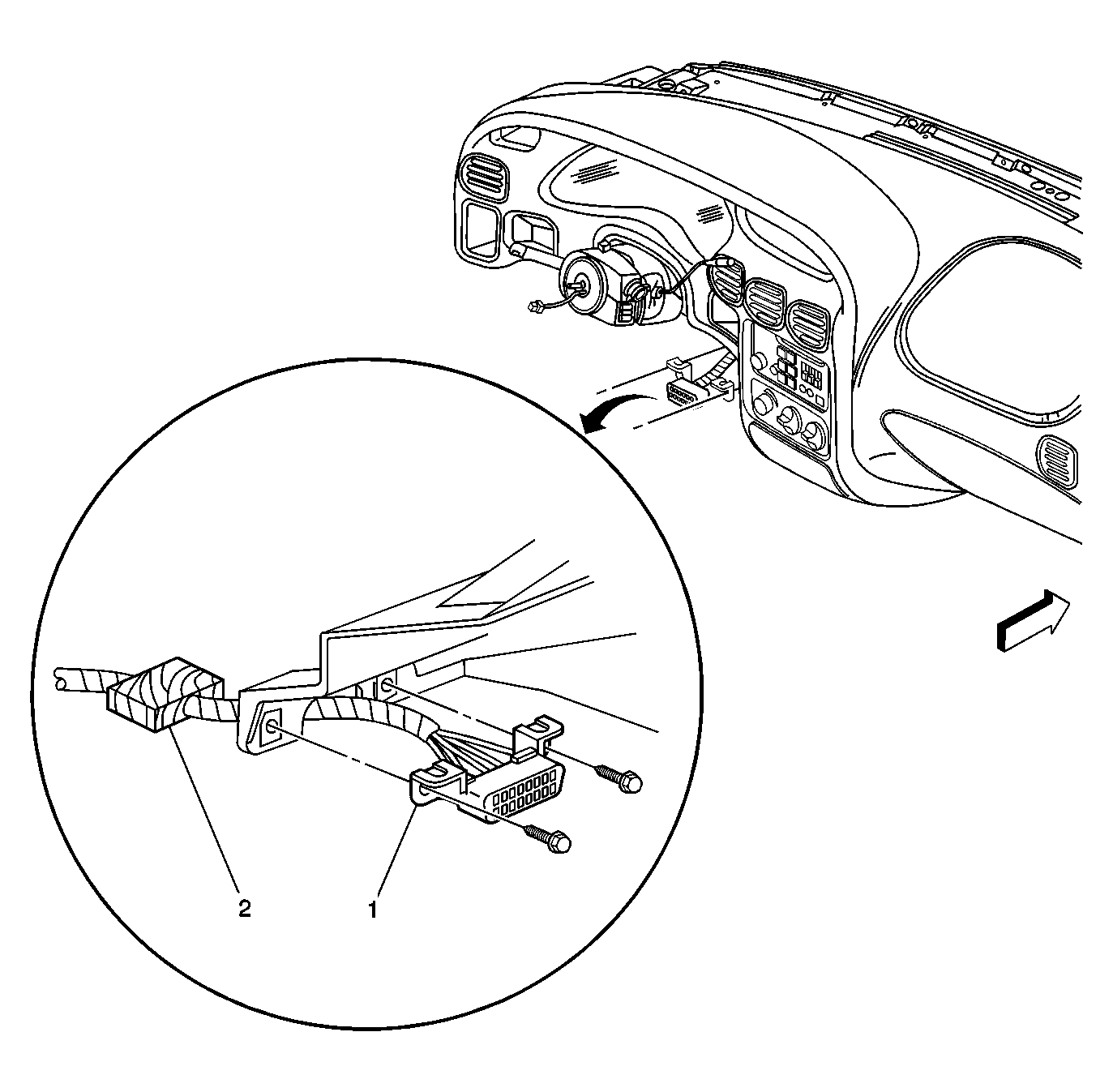

Fig 2: Lower Left Side Of Steering Column, Right Center Of IP Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector (DLC)
2	Splice Pack, SP205

Fig 3: Behind The Right Side Of The I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Reservoir
2	G200
3	Fuse Block - I/P
4	C200
5	Blower Motor
6	Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7	P100
8	Vacuum Reservoir
9	Black Vacuum Hose
10	Air Temperature Actuator - Right
11	Automatic Headlamp Relay
12	Rear Compartment Lid Release Relay
13	Rear Window Defogger Relay
14	Retained Accessory Power (RAP) Relay
15	I/P Wiring Harness
16	Air Temperature Actuator - Left
