Power Seat Systems Component Views

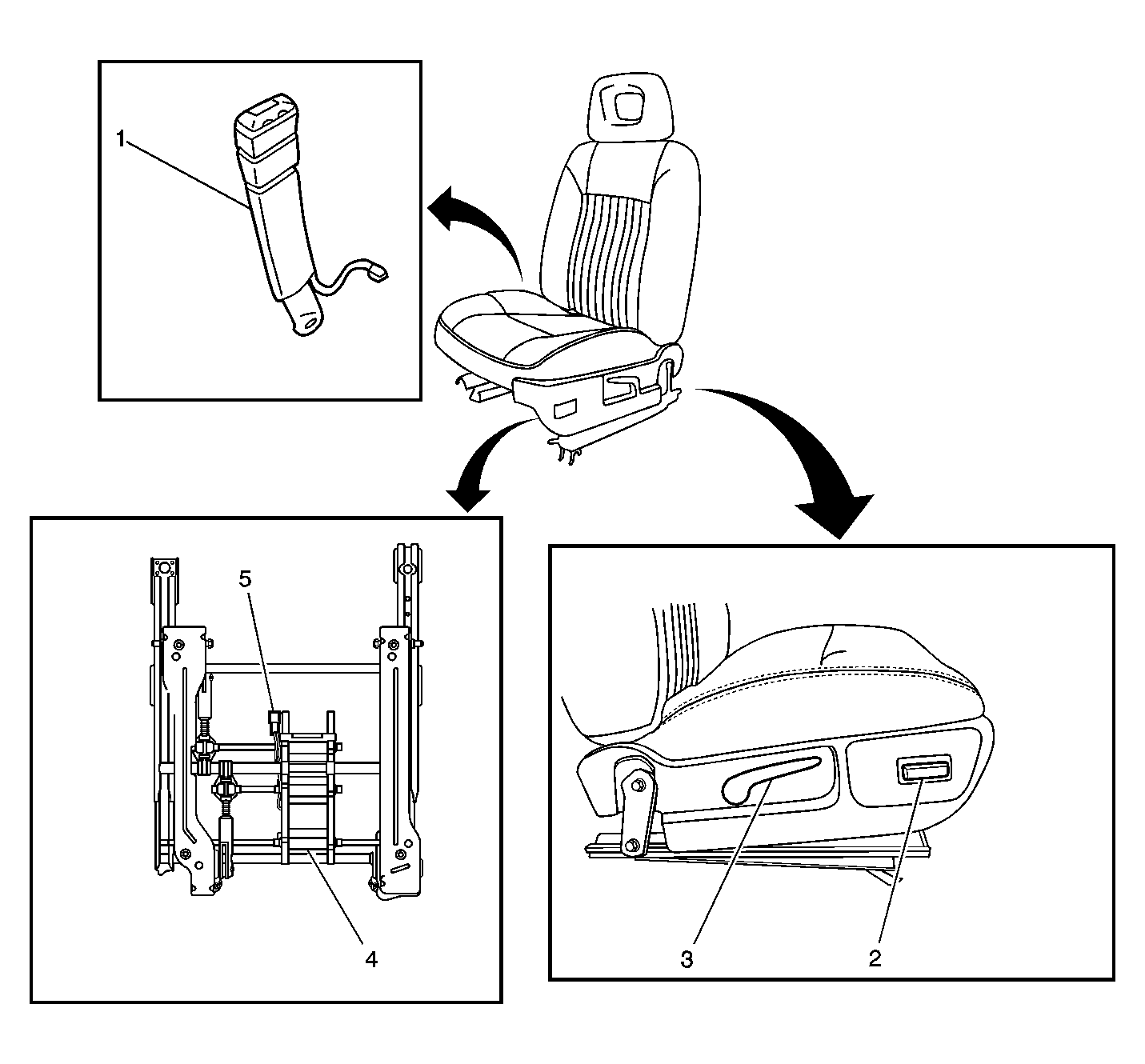

Fig 1: Power Seat Subsystem Component Views
GM1388130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Seat Adjuster Switch (AG1)
3 Manual Seat Recliner Lever
4 Seat Adjuster Motor Assembly
5 C311 (AG1)
