Power Window Switch Replacement: Notes
- When removing a door trim panel or switch plate, the ignition switch must be in the OFF position. This will eliminate the possibility of shorting out the switch if a flat-bladed tool, awl or metal object is used to remove the switch from the harness.

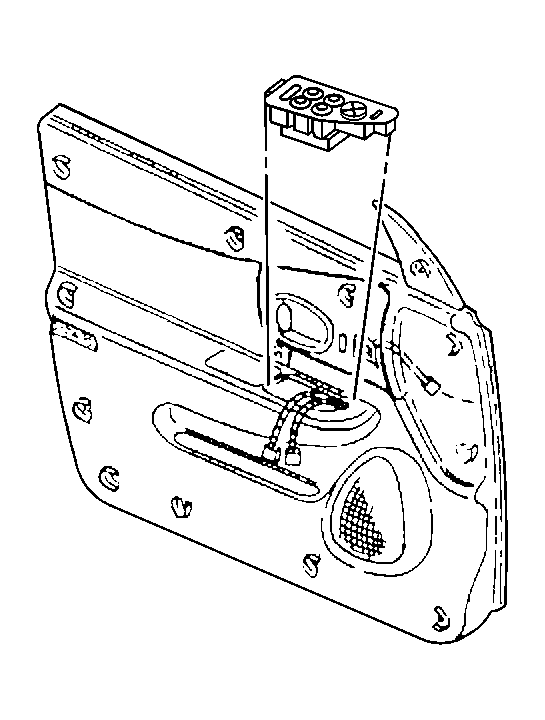

- Use a flat-bladed tool in order to remove the power window and door lock mounting plate assembly from the trim panel.
- Insert the tool at the front of the mounting plate. Press rearward to release the mounting plate retainer and lift up on the front of the plate.
- Press down on the rear of the mounting plate to disconnect the tab. Lift out the mounting plate with the switches attached.
- Disconnect the electrical connectors.

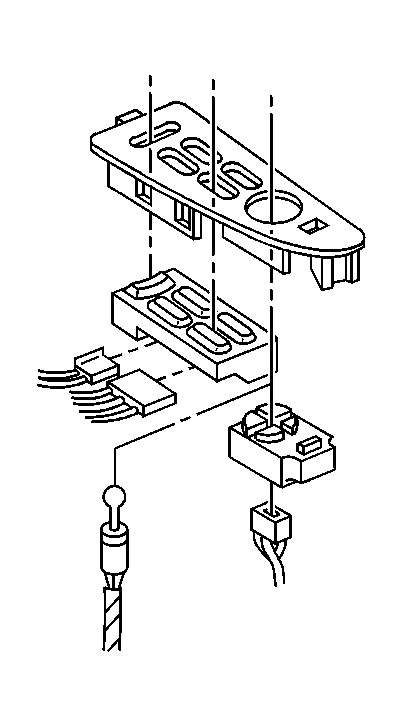

- Remove the switch from the mounting plate.
CAUTION:
Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
NOTE:
Apply protective coating/tape at the insertion point of the small flat-bladed tool in order to prevent damage to the inner door trim panel.
IMPORTANT:
