Control Module, A/T

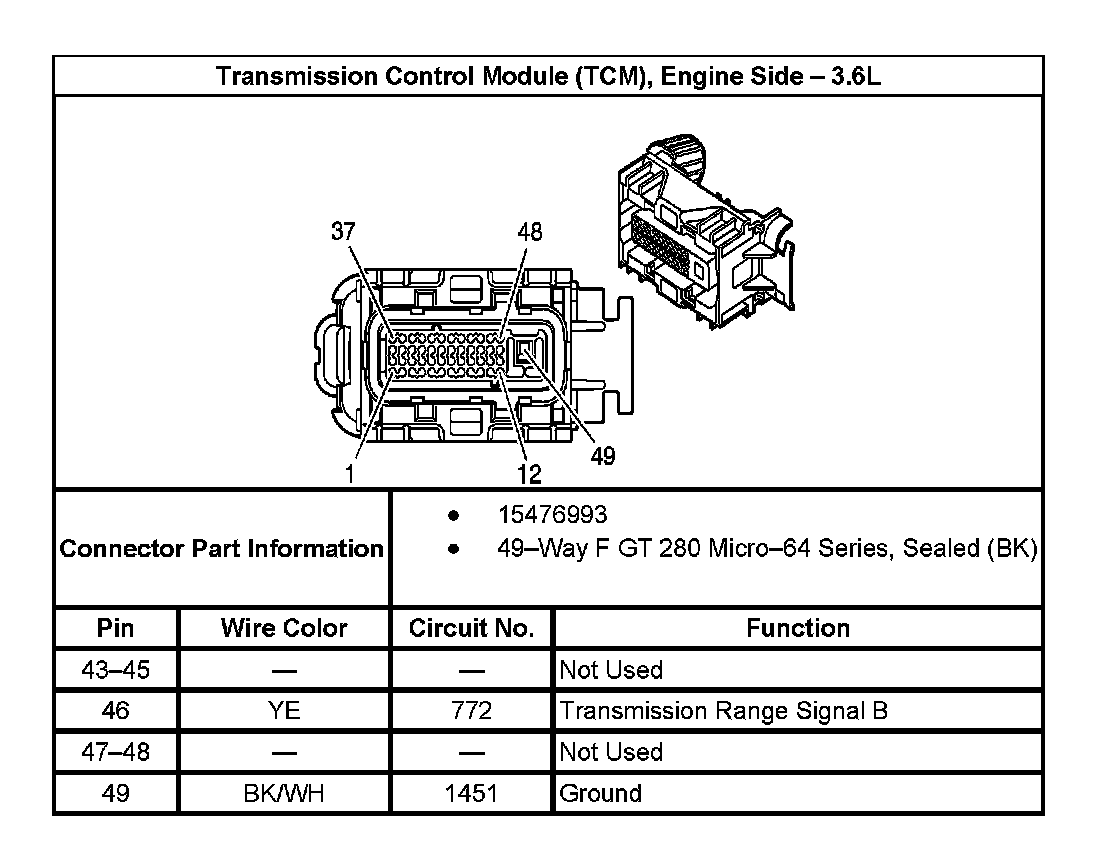

Transmission Control Module (TCM), Engine Side - 3.6L:

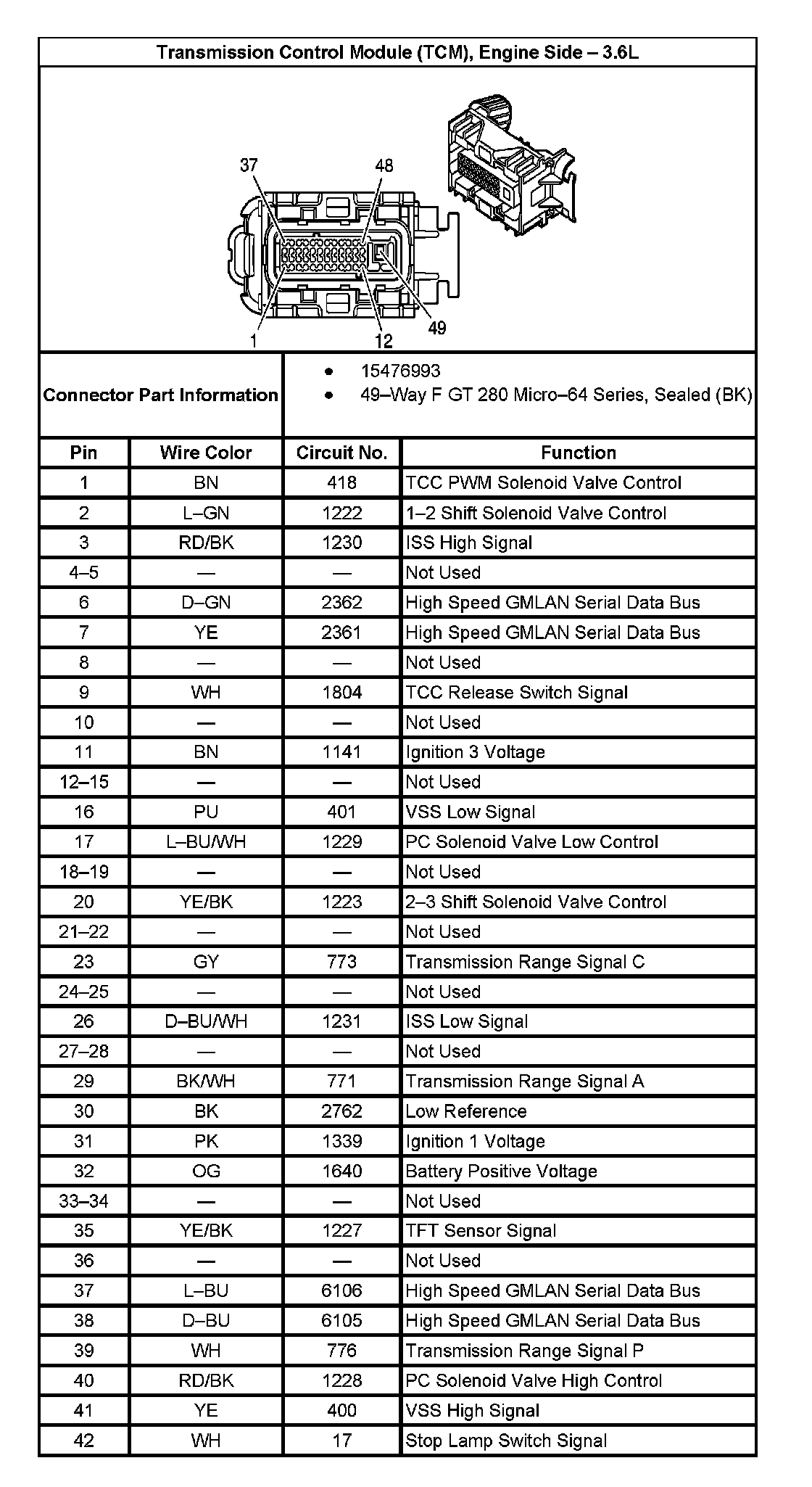

Transmission Control Module (TCM), Engine Side - 3.6L:
