Wiper/Washer System Component Views

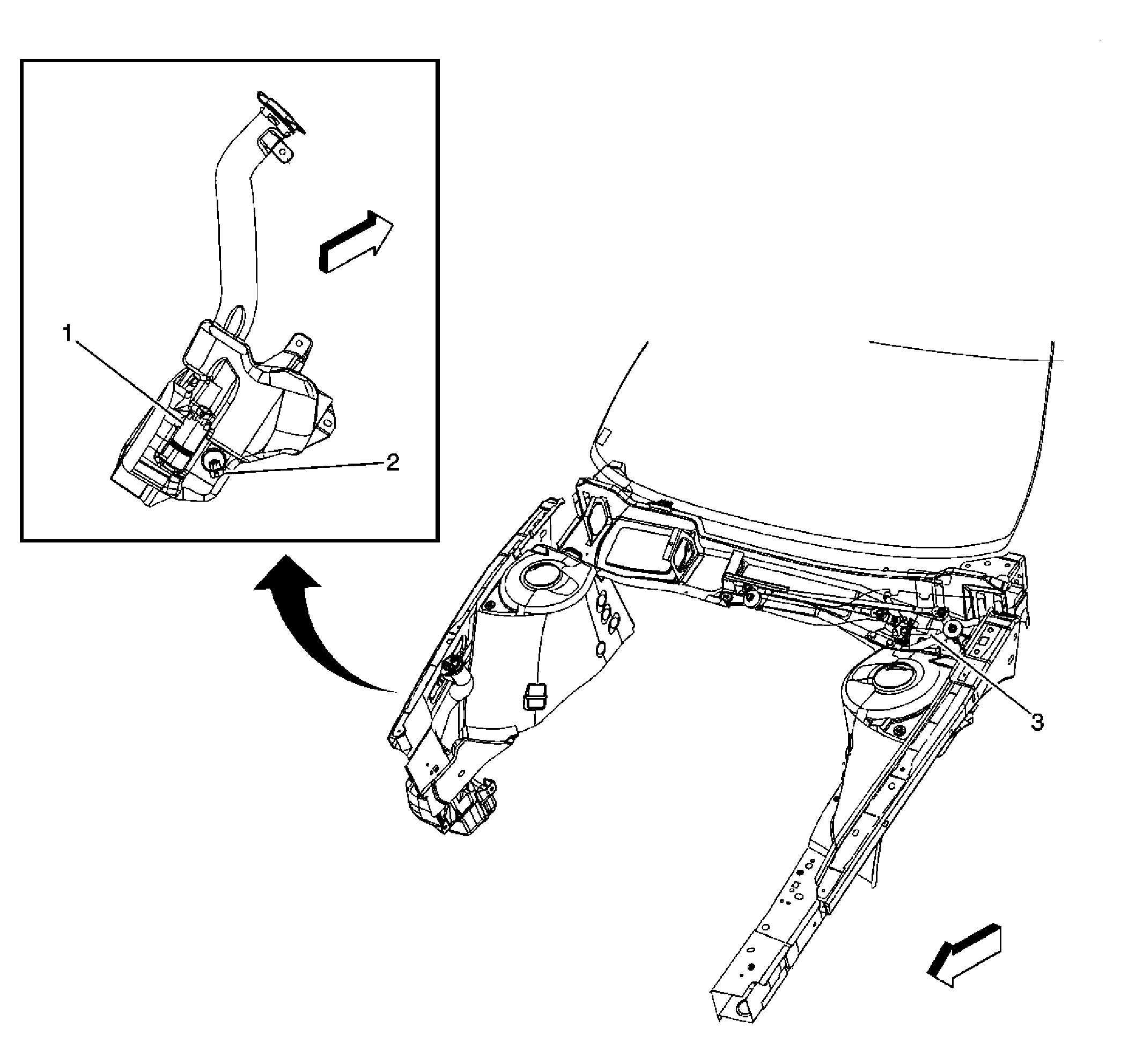

Fig 1: Identifying Wiper/Washer System Components - Engine Compartment
GM1542676Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Pump
2 Windshield Washer Fluid Level Switch
3 Windshield Wiper Motor
