Home >> Buick >> 2006 >> Lucerne V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

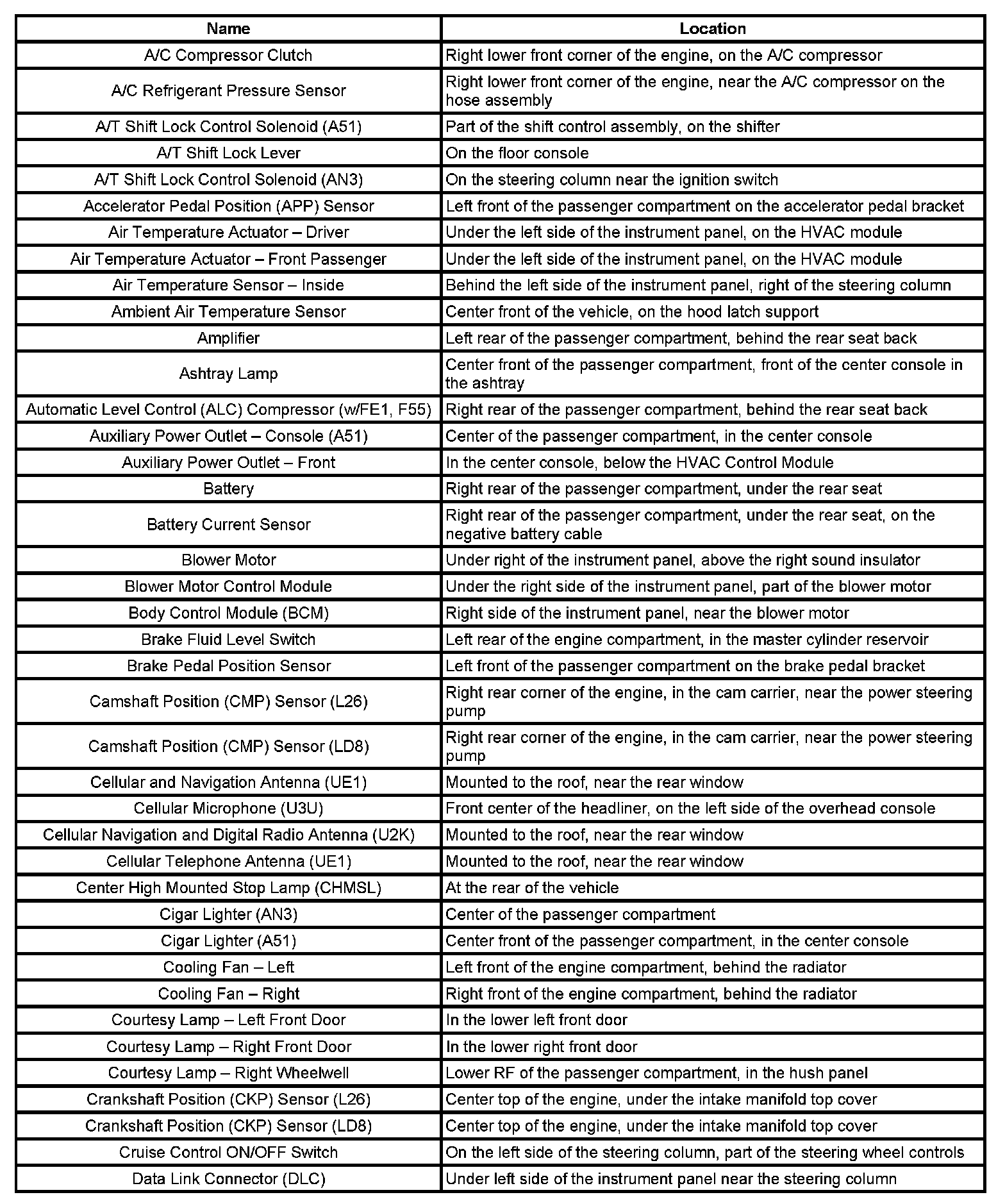

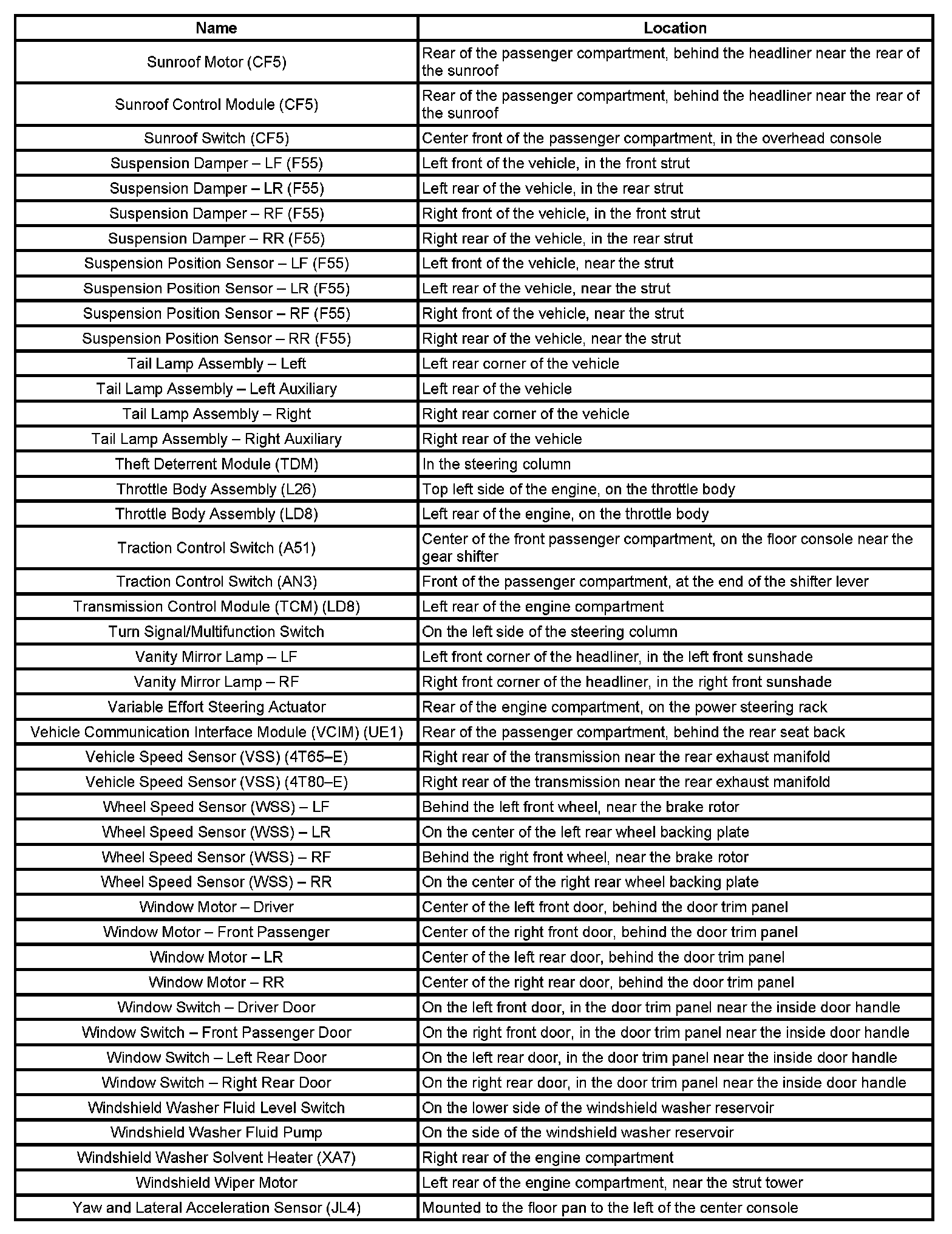

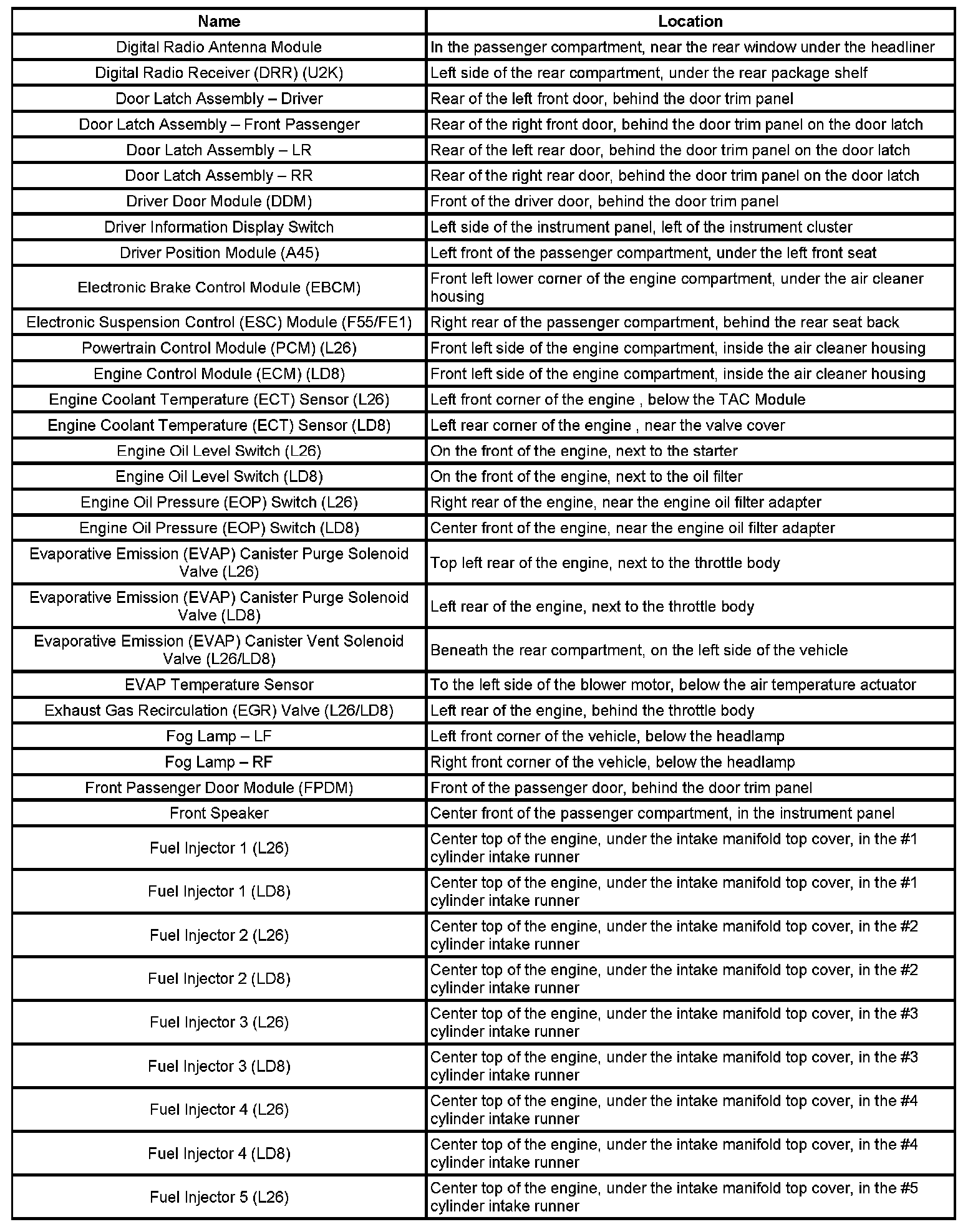

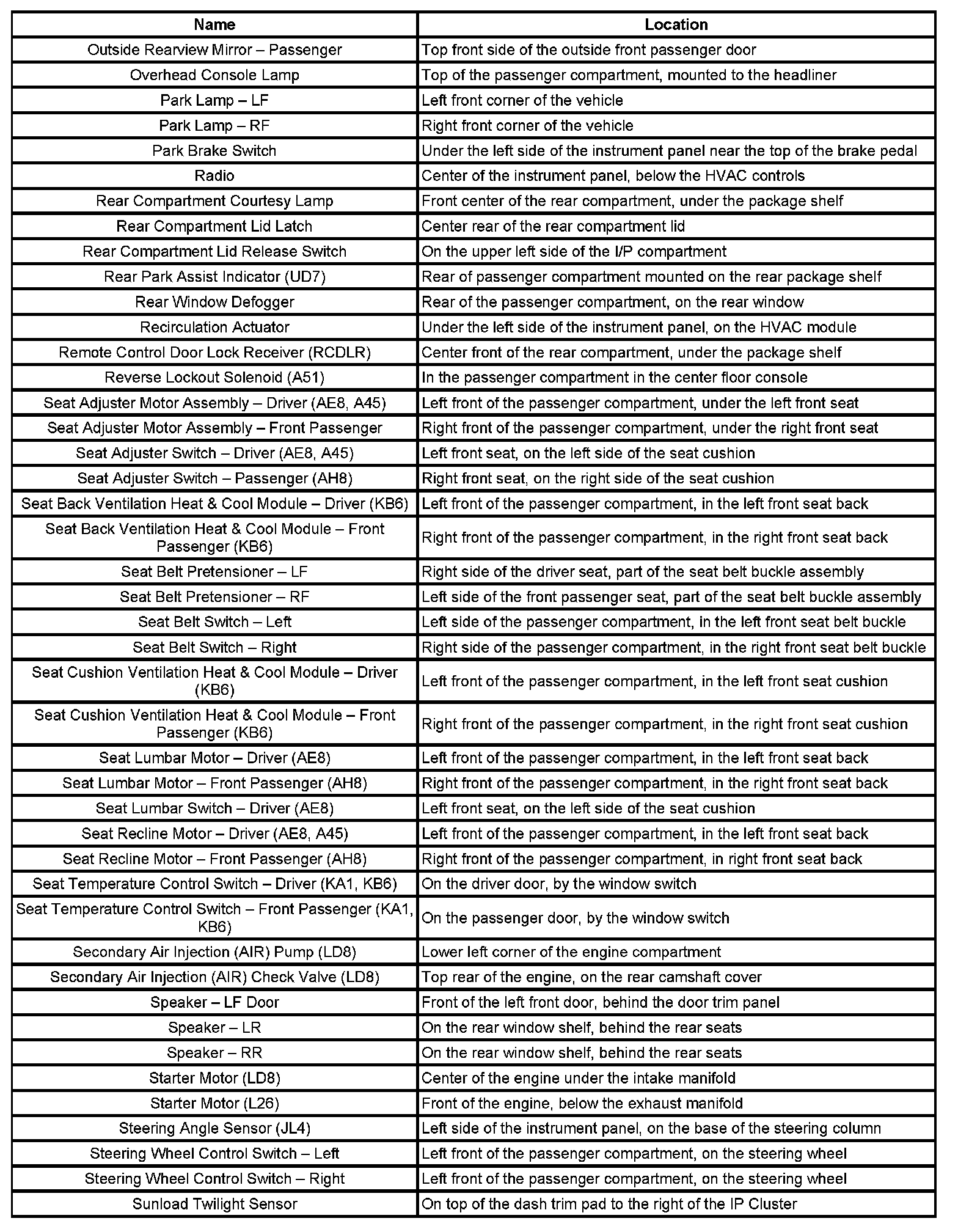

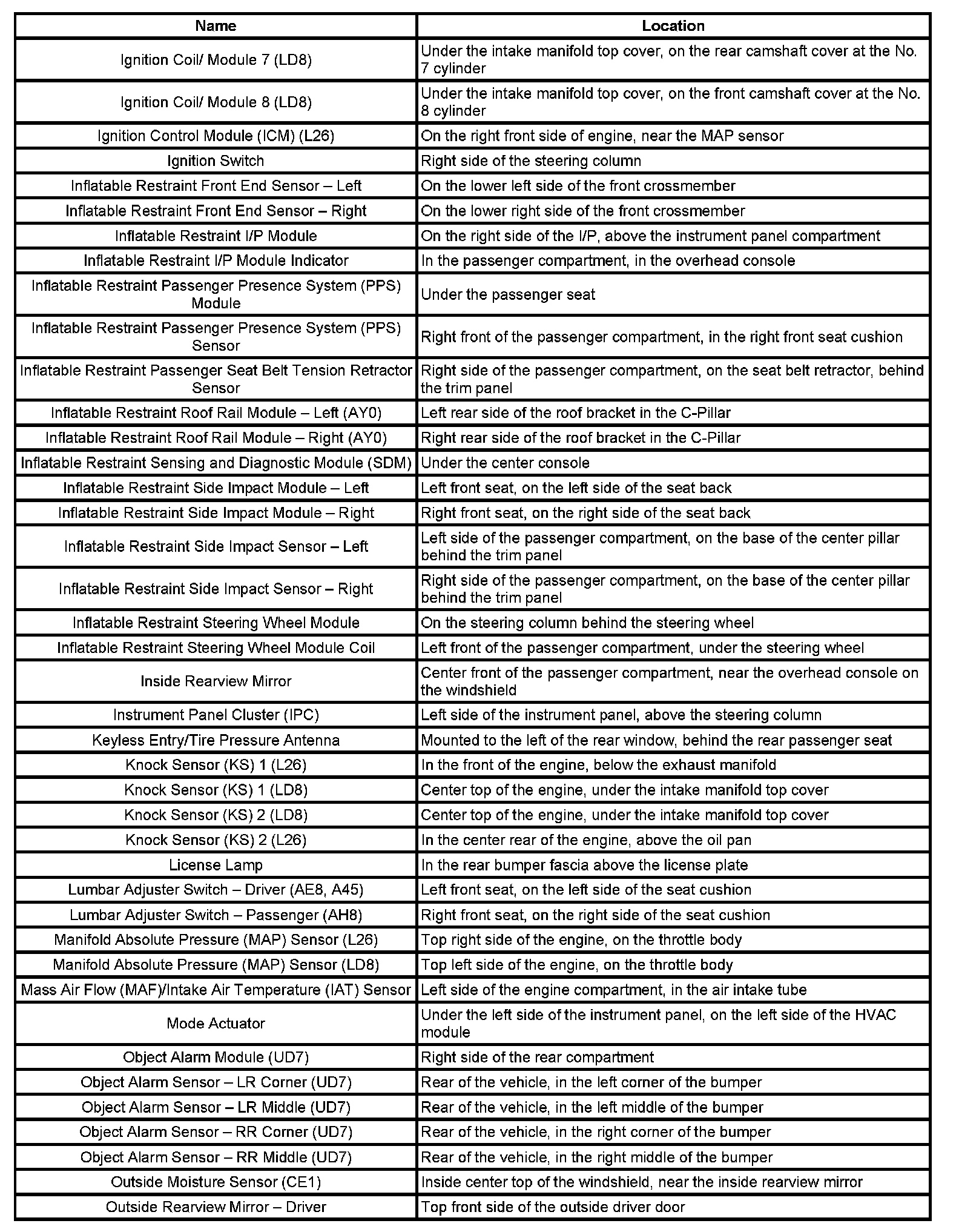

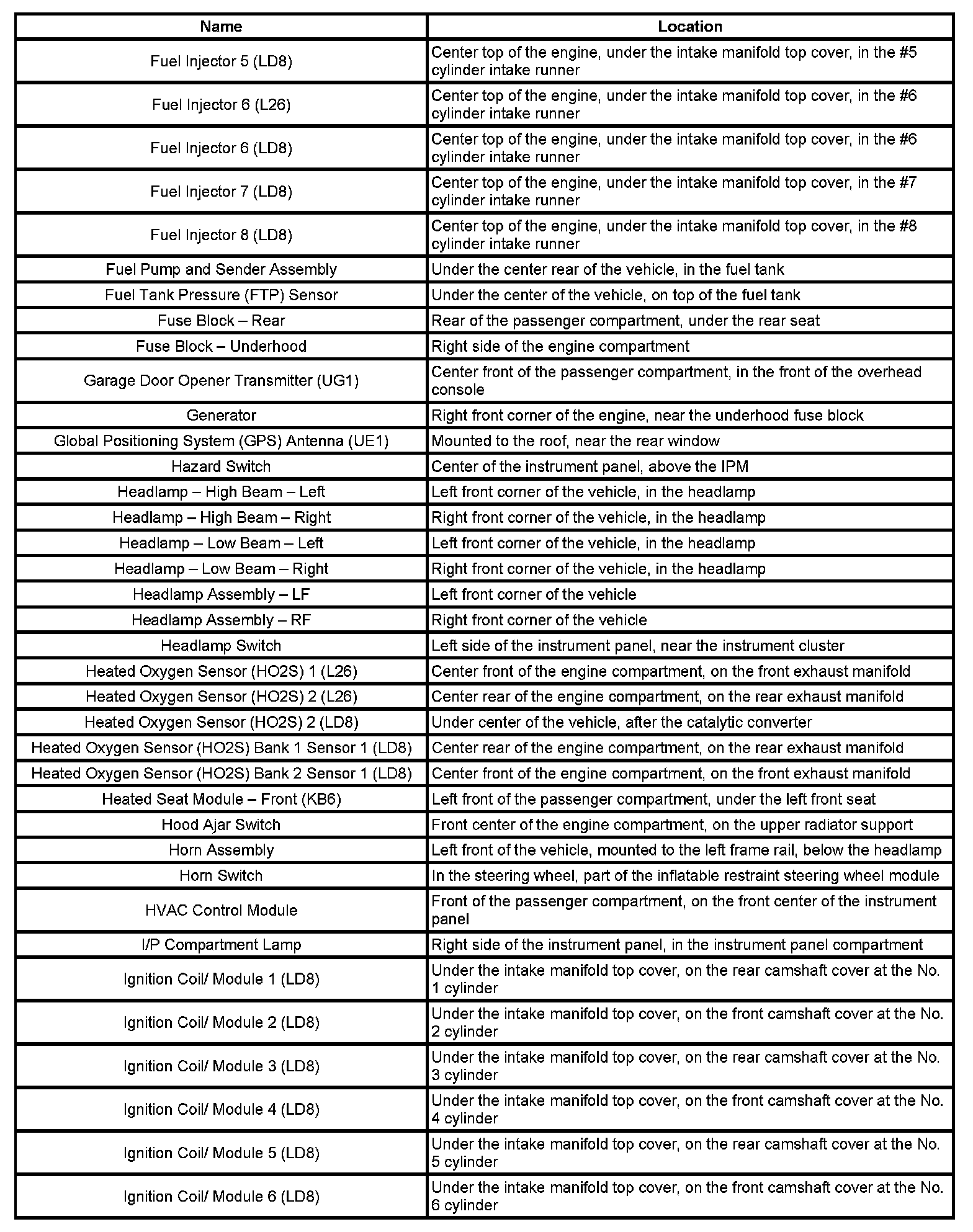

Components


`

A/C - Da:




Di - Fu:




Fu - Ig:




Ig - Ou:




Ou - Su:




Su - Ya:
