Electronic Suspension Control (ESC) Module (F55)
Electronic Suspension Control (ESC) Module (F55)

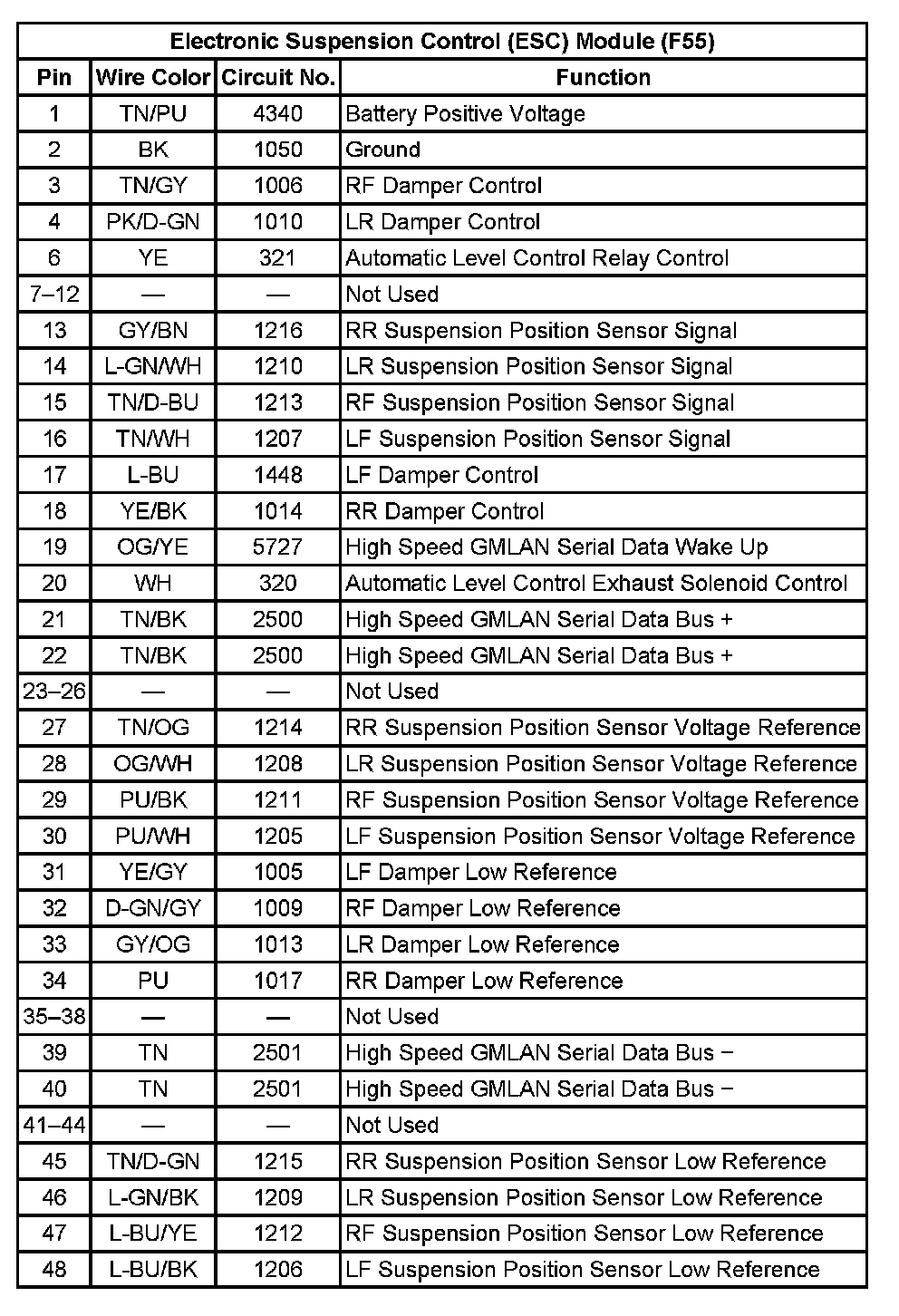

Electronic Suspension Control (ESC) Module (F55):
