Body Control Module (BCM) - C3

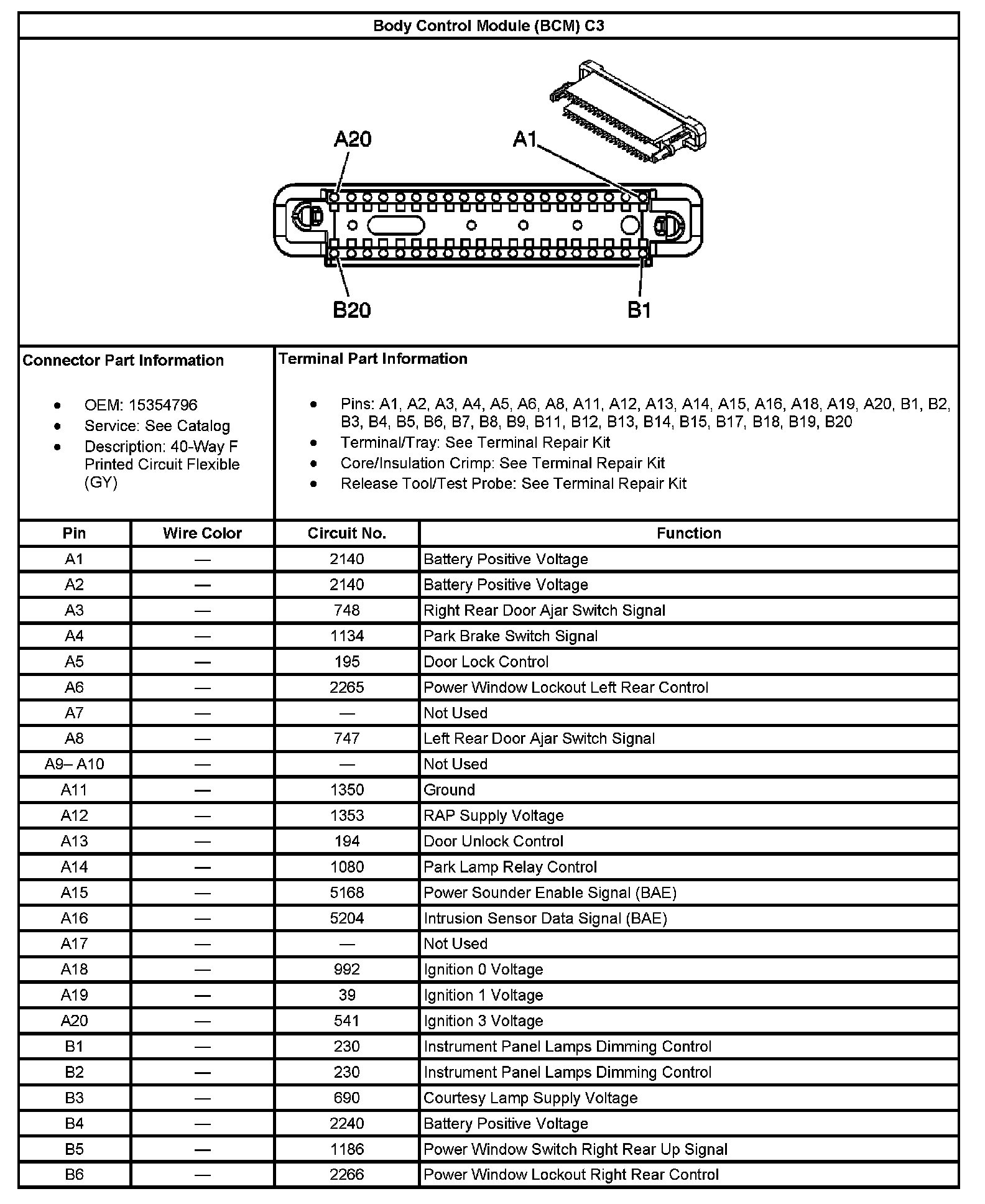

Body Control Module (BCM) C3 (Part 1):

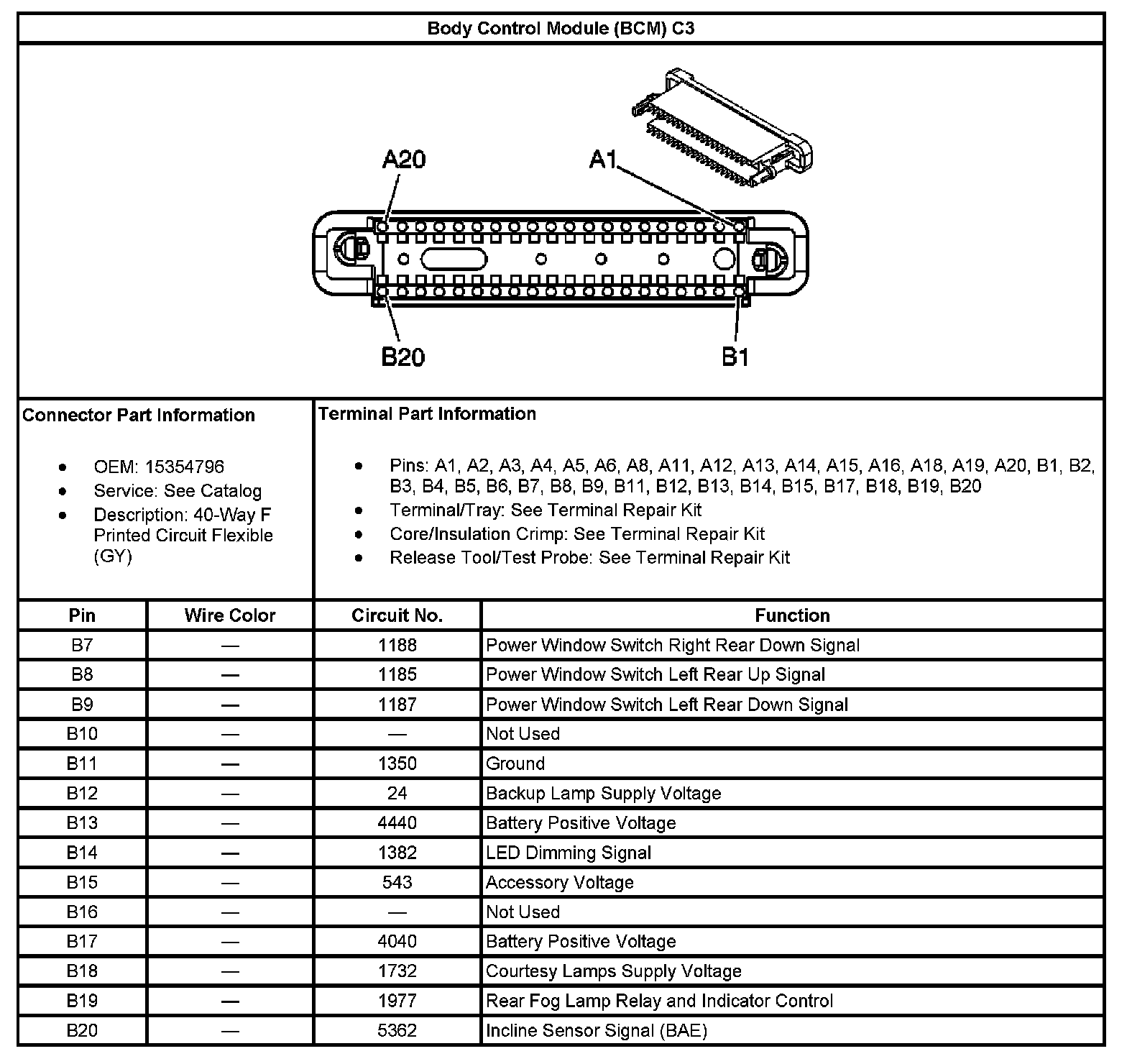

Body Control Module (BCM) C3 (Part 2):
