Memory Positioning Module: Diagrams

Memory Seat Module C1 (With RPO Code A43):

Memory Seat Module C2 (With RPO Code A43):

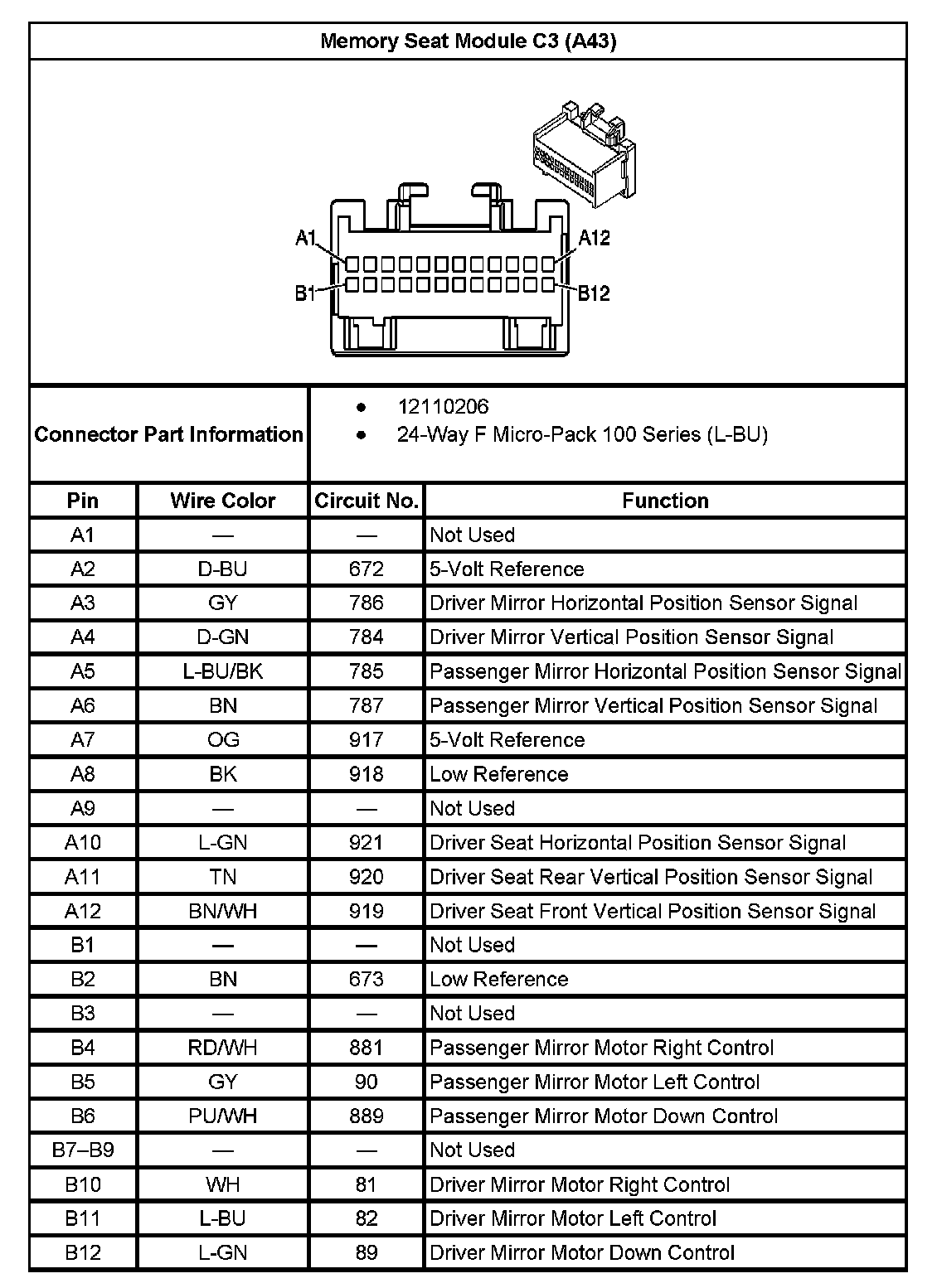

Memory Seat Module C3 (With RPO Code A43):

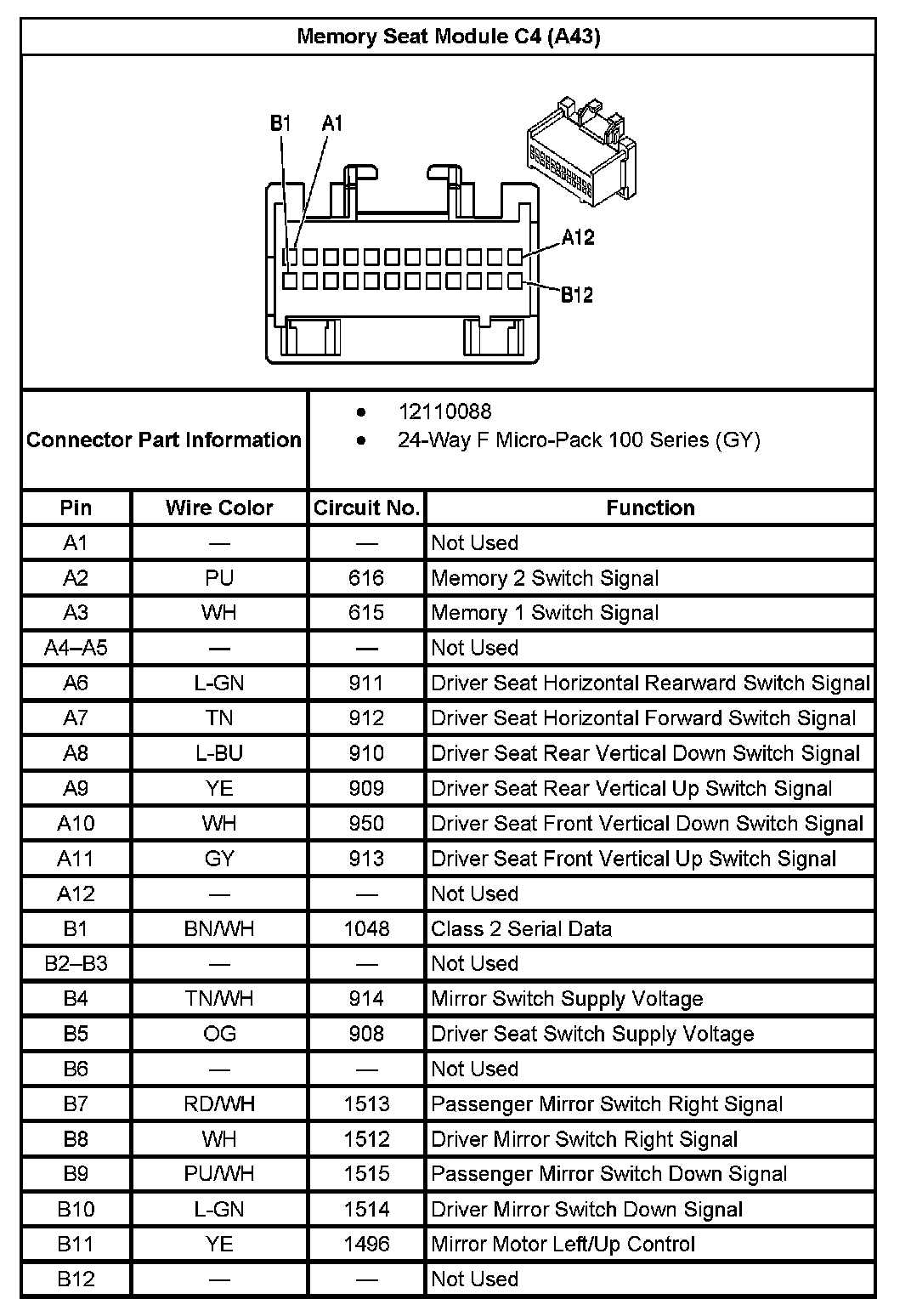

Memory Seat Module C4 (With RPO Code A43):
