Accelerator Pedal Position Sensor: Service and Repair

ACCELERATOR PEDAL WITH POSITION SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the insulator panel.

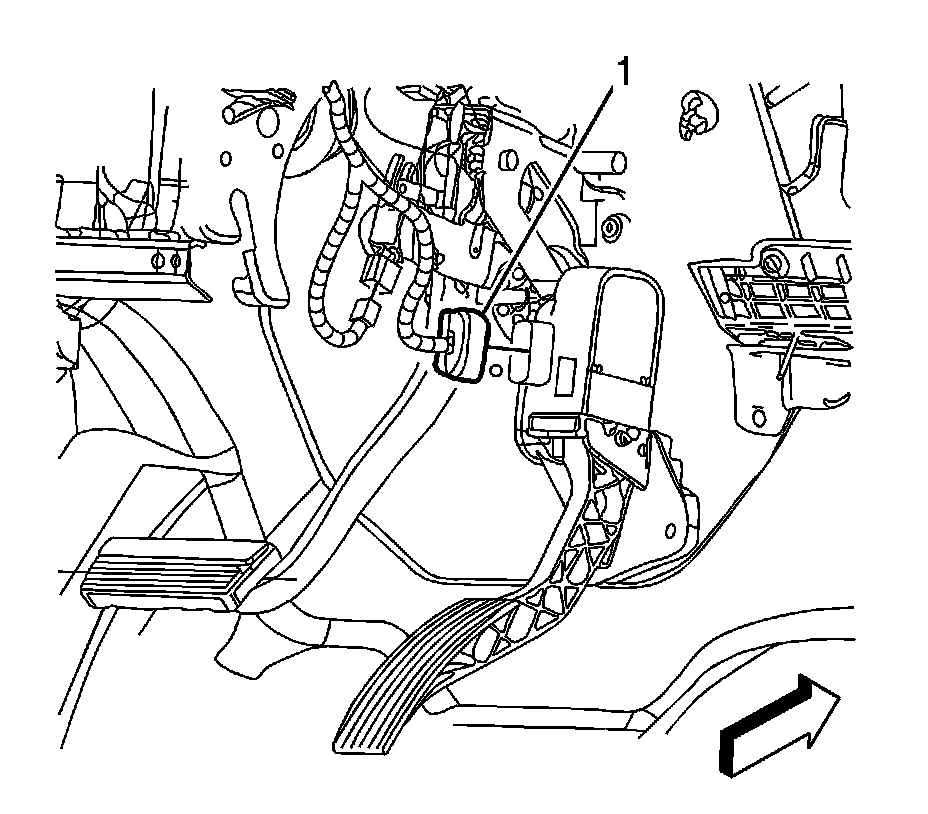

2. Disconnect the instrument panel (I/P) harness electrical connector (1) from the accelerator pedal position (APP) sensor.

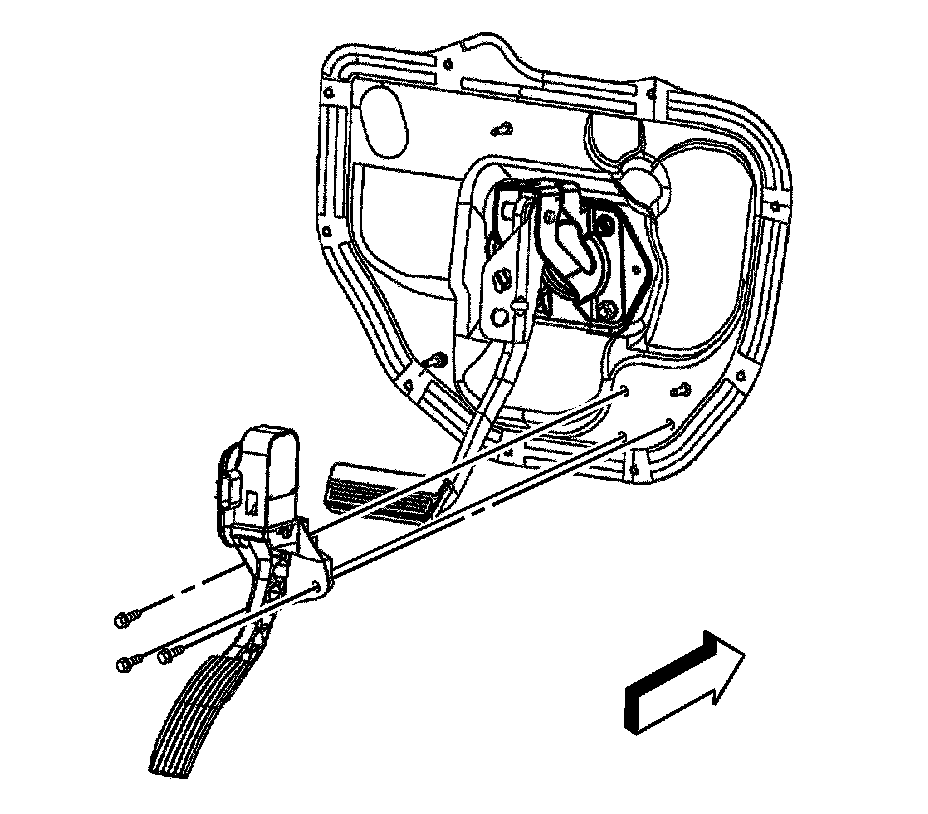

3. Remove the APP sensor bolts.
4. Remove the APP sensor.

INSTALLATION PROCEDURE




1. Position the APP sensor to the front of dash.
2. Install the APP sensor bolts.

NOTE: Refer to Fastener Notice.

Tighten the bolts to 10 N.m (89 lb in).




3. Connect the I/P harness electrical connector (1) to the APP sensor.
4. Install the insulator panel.
5. Verify the operation of the accelerator pedal.
